• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

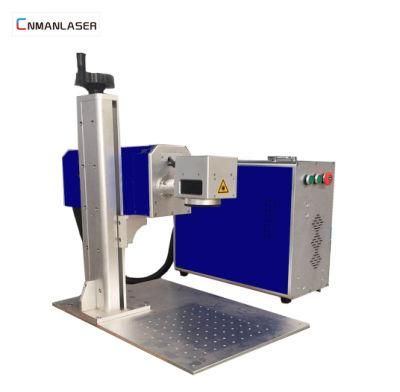

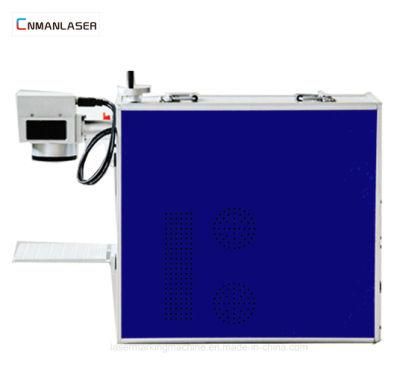

Portable Type 20W 30W Logo Date Fiber Laser Marking Equipment


1 Imported fiber laser system

2 Excellent optical mode, long operating life, up to 100,000HS

3 The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W

4 Small size, steady, without maintenance, easy to operate

5 High precision, suited for fine processing on all metal and some non-metal.
    TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

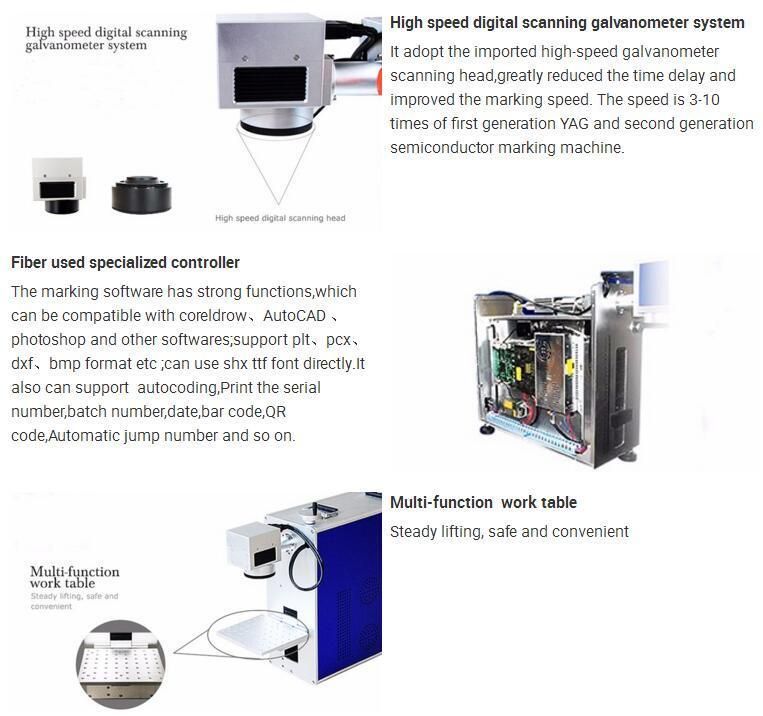

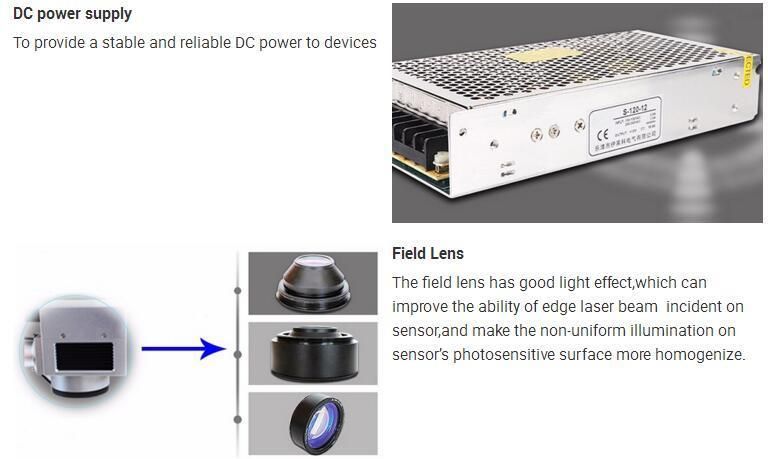

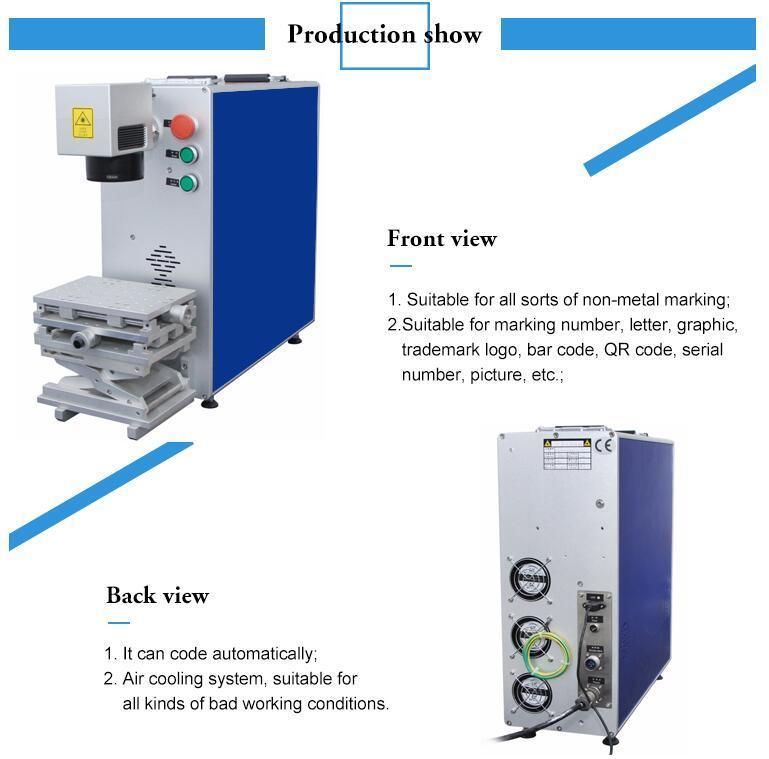

IMAGES DETAILS :

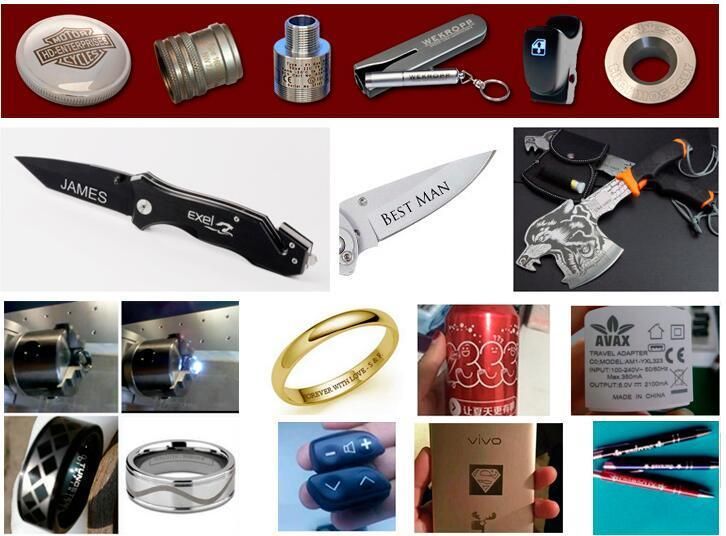

SAMPLE SHOW :

>>Applicable Material:

gold & sliver, stainless steel, ceramic, plastic, glass, stone, leather, cloth, bamboo and so on.

>>Applicable Industry:

gold & silver jewelry, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus

and instruments, watches&glassware, auto accessories, electronic hardware.

>>Representative Working Samples:

auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking.

 Fiber Laser Marking Machine Models:

 ITEM: 3D laser engraving machine | 3D deep marking | 3D curve engraving

PACKAGING & SHIPPING   :

About shipment

1.Packaging :   foam &carton / Wood Box

   2.Shipping:

      1). We ship to world wide

      2). Most orders ship within 1~7days after payment

      3). Item shipped from china mainland using airmail by EMS, DHL, TNT or Hong Kong post,

           we accept the customer's shipping request

      4).100%T/T before shipment, after we shipped the goods, we will email you the shipping information

ABOUT US  :

Q: What's the package ?

A: We have 3 layers package.

For the outside, we adopt wood craft case.

In the middle, the machine is covered by foam, to protect the machine from shaking.

For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: What's the delivery time?

A: Generally 7-10 working days to complete the production.

Q: What about the warranty?

A: We offer 3  years warranty for the whole machine.

Q: What's the payment term?

A: T/T , L/C, West Union, Credit card, Paypal will be acceptable.

Q: What about the transport?

A: You can use your own transporter. You can also use our own transporter.

Q: What should we do if we meet the problems?

A: Generally we can solve the small problems online within 24 hours. If not, engineers are available for you.
