Plastic Tape Extruder (PP WOVEN FABRIC) (SJ-L Series)
YUYAO BEISHUO HARDWARE CO., LTD.Base Info
Description
Basic Info.
Model NO. SJ-L Series Exhaust Exhaust Automation Automatic Transport Package in Nude Specification ISO9001: 2008 Trademark SANLONG Origin Wenzhou, Zhejiang, China HS Code 84778000Product Description

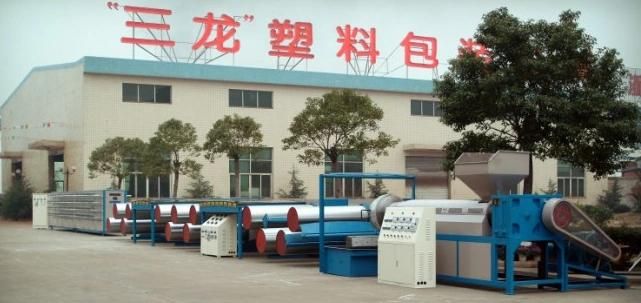

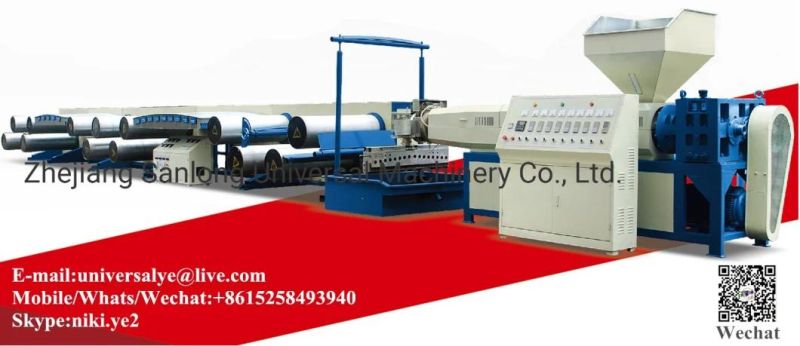

PLASTIC TAPE EXTRUDER
PERFORMANCE AND CHARACTERISTICS
SJ-L Series Plastic Tape Extruder is designed according to our research on the basis of actual application in China plastic woven sacks industry. It is the most popular model in China market featured in being economical, practical, and reliable. It mainly adapts to the raw material of thermo-plasticity such as polythene (PE) and polypropylene (PP) and so on. It can also make full use of recycled material outputting low intensity of plastic tape, which brings enormous economic profit by reducing production cost.
MAIN TECHNICAL DETAILS
| Item Type | Diameter of Screw (mm ) | Screw L/D Ratio | Screw Rotational Speed (r/min) | Die Length (mm ) | Drawing Line Speed (m/min ) | Stretched Ratio | Prime Motor Power (kw ) | Drawing Motor Power ( kw ) | Heating Power (kw ) | Thickness of Plastic Tape (mm ) | Capacity (kg/h) | Installation Dimension (m ) | Weight (kg) |
| SJ-L115-8 | 115 | 22/27 | 20-80 | 800 | 50-150 | 4-7 | 18.5 | 5.5 | 48 | 0.025-0.08 | 40-80 | 14.1×1.55×1.2 | 5800 |
| SJ-L120-10 | 120 | 23/29 | 20-80 | 1000 | 50-150 | 4-7 | 22/37 | 5.5 | 50/54 | 0.025--0.08 | 70-100 | 18.1×1.75×1.3 | 7500 |
| SJ-L120-12 | 120 | 24/30 | 20-80 | 1200 | 50-150 | 4-7 | 22/37 | 7.5 | 52/56 | 0.025--0.08 | 80-110 | 18.1×2×1.3 | 8500 |
| SJ-L132-15 | 132 | 24/30 | 20-80 | 1500 | 50-150 | 4-7 | 30/37 | 7.5 | 57/61 | 0.025--0.08 | 105-135 | 19.5×2.4×1.3 | 10500 |
| SJ-L135-16 | 135 | 26/30 | 20-70 | 1600 | 50-150 | 4-7 | 30/45 | 7.5 | 61/65 | 0.025--0.08 | 130-160 | 19.6×2.6×1.3 | 11200 |
| SJ-L140-18 | 140 | 27/30 | 20-70 | 1800 | 50-150 | 4-7 | 37/45 | 11 | 71/75 | 0.025--0.08 | 150-180 | 19.9×2.95×1.3 | 12800 |
| SJ-L145-20 | 145 | 27/30 | 20-70 | 2000 | 50-150 | 4-7 | 45/55 | 11 | 75/81 | 0.025--0.08 | 170-200 | 20.1×3.25×1.3 | 14000 |
| SJ-L150-22 | 150 | 27/30 | 20-70 | 220 | 50-150 | 4-7 | 45/55 | 11 | 86/90 | 0.025-0.08 | 190-225 | 20.4×3.85×1.35 | 15300 |
| SJ-L155-24 | 155 | 27/31 | 20-65 | 2400 | 50-150 | 4-7 | 55/75 | 11 | 90/94 | 0.025-0.08 | 205-235 | 20.8×4.2×1.35 | 16800 |
| SJ-L155-26 | 155 | 27/32 | 20-65 | 2600 | 50-150 | 4-7 | 55/75 | 15 | 98/103 | 0.025-0.08 | 220-250 | 21×4.55×1.35 | 18600 |
| SJ-L160-28 | 160 | 27/32 | 20-65 | 2800 | 50-150 | 4-7 | 55/75 | 15 | 106/112 | 0.025-0.08 | 240-270 | 22×4.75×1.4 | 21000 |
| SJ-L165-30 | 165 | 27/32 | 20-65 | 3000 | 50-150 | 4-7 | 75/90 | 15 | 114/120 | 0.025-0.08 | 260-300 | 22.5×5.05×1.4 | 23500 |
| SJ-L170-32 | 170 | 28/32 | 20-65 | 3200 | 50-150 | 4-7 | 75/90 | 18.5 | 122/128 | 0.025-0.08 | 290-350 | 22.8×5.05×1.7 | 26000 |
