PVC Lay-Flat Hose (one layer) Extrusion Line
Taizhou Vast Sea Trading CompanyBase Info
Description
Basic Info.
Model NO. mengkwa Specification CE, ISO Trademark Mengkwa Origin Zhejiang, China Production Capacity 60-100kg/HProduct Description
PVC Lay-Flat Hose (one layer) Extrusion LineSpecification:
Hose: 50 63 75 100mm
Raw material: Soft PVC granules and PET yarn
Output: 60-100kg/h
Total Installed Power (kVA): 55kVA, 380 V three phases, 50Hz
Load factor: 50-80%
Overall dimension: 18000*4000*2500
Cooling water: 10m3/h circularly used

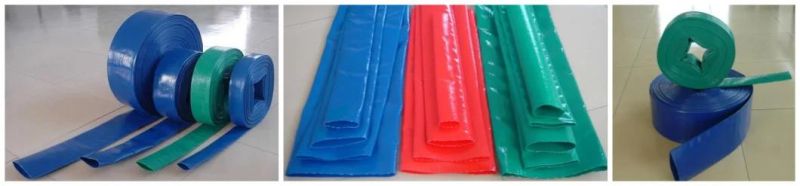

This machine is special to make the PVC layflat hose with PVC resin and fiber. It can make the smooth outer and inner layer at one step.

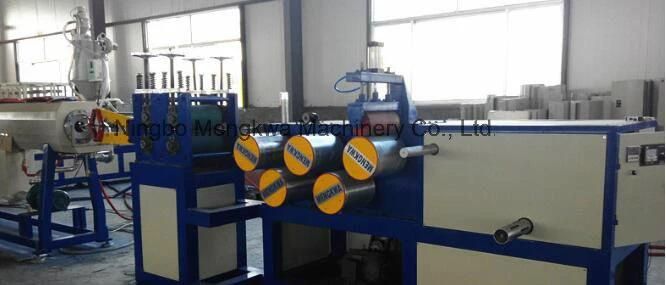

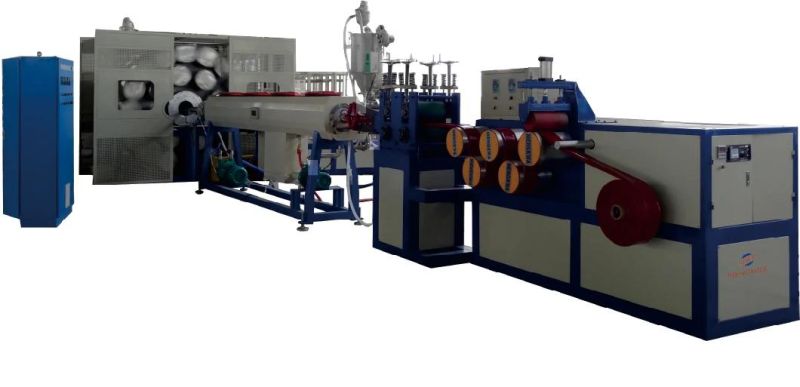

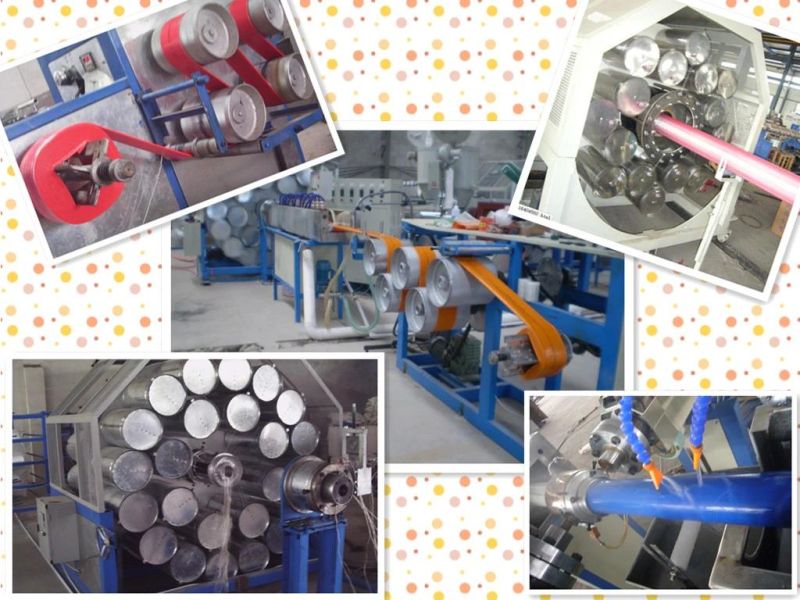

One step pvc lay-flat hose production line
| Single screw extruder: SJ75/30 | One set |
| Support for yarn | two set |
| Die | four sets |
| 4. Braider | one set |
| 6. Cooling bath | one set |
| 7. Haul-off unit | one set |
| 8. Winder | one set |
| 9. Electrical cabinet | one set |
