Hot Sales Rotary Drilling Rig Sr150 55m 125kw with Best Price
Wenzhou Qianding Machinery Co., Ltd.Base Info
Description
Basic Info.
Model NO. SR150 Bit Type Drag Bit Drilling Way Rotary Type Crawler Max.Drilling Depth 55m Transport Package 6501*3151*2562mm Specification 2760kg Trademark sinomada Origin China Production Capacity 50000PCS/YearProduct Description

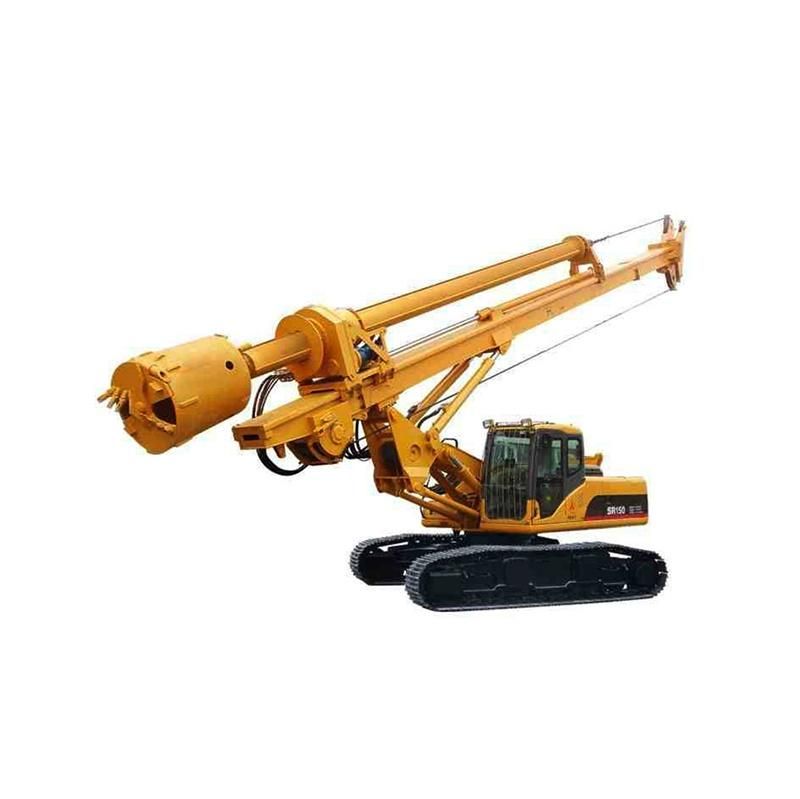

Brand New Rotary Drilling Rig SR150
| SR150C | Unit | Parameters |
| Max.Drilling Dia. | mm | 1500 |
| Max.Drilling Depth | m | 55 |
| largest torque | kN.m | 150 |
| Speed of rotary drive totation | rpm | 7-14 |
| Max.push | kN | 150 |
| Max.pull | kN | 160 |
| Crowd stroke | mm | 4250 |
| Mast sideward | . | (+/-)5 |
| Mast forward | . | 5 |
| Main winch pull(1st layer) | kN | 160 |
| Main winch wire rope dia. | mm | 28 |
| Max.main winch line speed | m/min | 70 |
| Aux.winch pull(1st layer) | kN | 60 |
| Aux.winch wire rope dia. | mm | 14 |
| Engine | CC-6BG1TRP |
| Engine power | KW(HP) 125 (168) @2100rpm |
| Style | 4-storke,water-colled,overhead value type and electronic injection |
| Intake form | Turbocharged, inter cooling |
| Fuel | Diesel oil |
| Emission regulation | EU stage II/E-P-A Tier 2 |
| No of cylinder-bore*stroke | 6-105mm X 125mm |
| Displacement | 6.494 |
| Compression ration | 17.5:1 |
| Rated power | 125KW @ 2100rpm |
| 168HP @ 2100rpm | |
| Max. output torque | 637.9N.m @ 1800rpm |
| 864lbf.ft @ 1800rpm |
