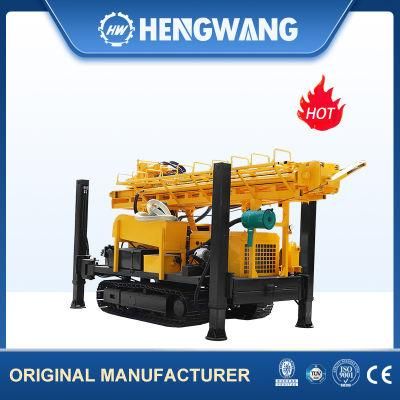

China Drilling Rig 320m Borehole Drilling Rig Pneumatic Water Well Drilling Rig
Kunshan Hexin Precise Machinery Co., Ltd.Base Info
Description
Model
HQZ-320L
Total Weight(T)
7.5/9
Dimensions(mm)
4200*1900*2600
Drilling Diameter(mm)
140-350
Drilling Depth(m)
320
One-time Advance Length of the Drill(mm)
3000/6000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
230
Working Air pressure(Mpa)
1.7-3.3
Air Consumption(m³/min)
23
Main Power(kw)
85/Yuchai
Rotation(rpm)
55-115
Rotary Torque(Nm)
8500-10000

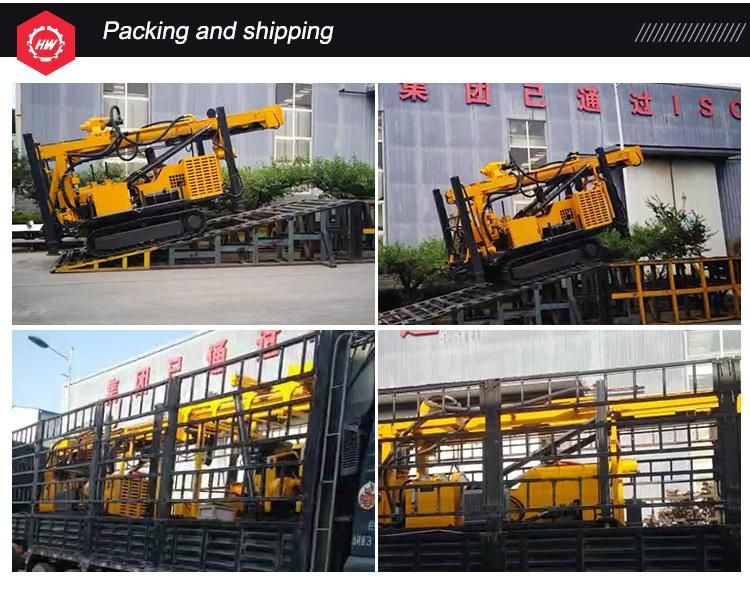

Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
