Basic Info.

Model NO. Dim 110mm- 550mm Condition New Capacity  220-280kg/H Production Speed 3-6m/Min Pipe Diameter 110-550mm Application Protective of Hot Water/ Oil Pipe Transport Package Standard Package for Export Specification Dim110mm-550mm Trademark Huashida Origin Qingdao China HS Code 8477209000 Production Capacity 100lines/Year

Product Description

PE Pipe Line Extruder

PE pipe line extruder Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world.

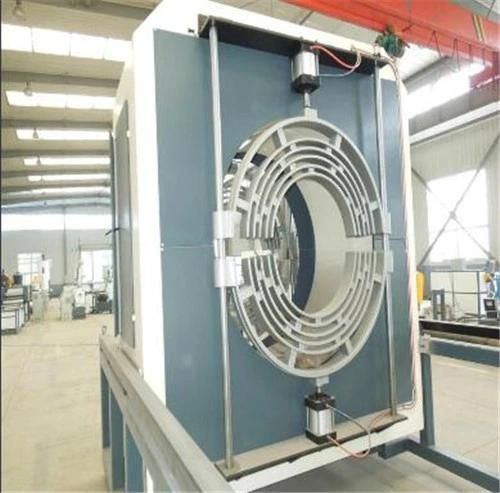

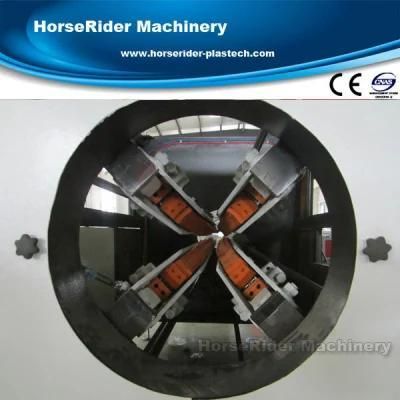

This pipe extrusion line mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and bracket.

(MODELS: PE-110-550/ 365/760 PE-420/960 PE-850/1380 PE960/1680)

The line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and long service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and smooth surface.


Plastic Pipes produced by this line has excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

Style	PE-110-550	PE-365-760	PE-850/1380	PE-960/1680
Main extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-550mm	Φ365-760mm	Φ 850-1380mm	Φ 960-Φ 1680mm
Capacity	220-280kg/h	400~500 kg/h	700~900 kg/h	900-1100kg/h
Installed power	160kw	250 kw	440 kw	580kw
Length	35m	36 m	40 m	45m
