Basic Info.

Model NO. SJ Condition New Application PE HDPE PPR Pipe Extrusion Line Warranty One Year After Installation Motor Siemens Range of Diameter 16-1000mm Inverter ABB Delivery Time 40 Working Days Payment Term T/T or L/C Transport Package Plasric Film or Wooden Case Specification CE and ISO SGS Trademark Sevenstars Origin Zhangjiagang HS Code 8477201000 Production Capacity 60-1000kg/Hr

Product Description

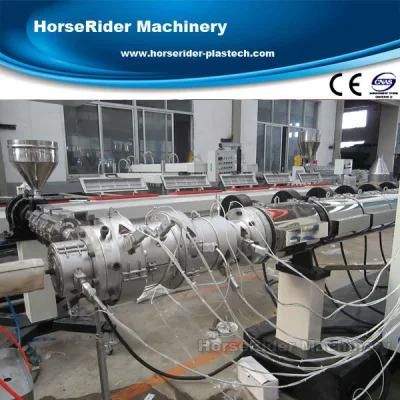

HDPE Pipe Extrusion Machine Line

Configuration:

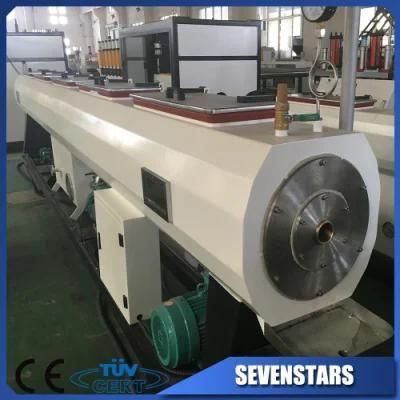

PE pipe production line contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.

Application:

PE pipe production line is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.

Description:

Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h

The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.

Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients' special requirement.

Welcome to receive your inquiry for more information about PE pipe production line!

Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢45mm	¢60mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC30kw	DC75kw	DC110kw	DC110kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	60-100kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	10m/min	6m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

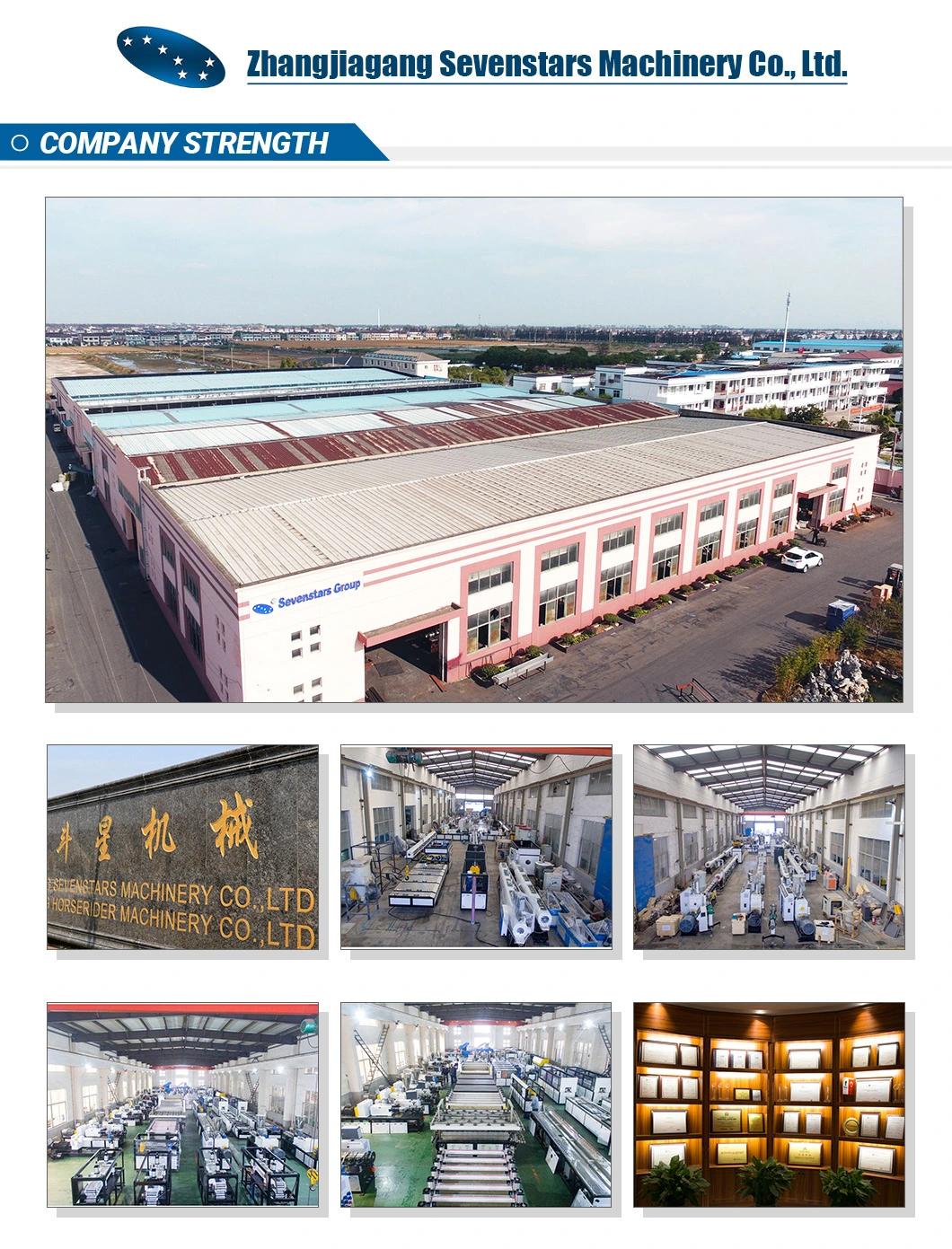

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
