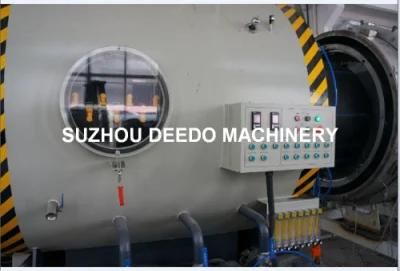

The Second Vacuum Sizing Machine | (Piece) | |
| 1 |
vacuum sizing tank | Double-cavity spray | |
| 2 | Length | 10000mm | |
| 3 | Pipe diameters | Φ630-Φ1200mm | |
| 4 |
Vacuum pumps | 2(PCS) | |
| 5 | Vacuum Pump power | 7.5kw | |
| 6 | Water pumps | 3(PCS) | |
| 7 | water pump power | 11kw | |
| 8 | Water pump seal ring | Mechanical seal ring | |
| 9 | Fro-back moving method | Hydraulic structure | |
| 10 | Fro-back moving distance | ±700mm | |
| 12 | Left-right moving distance | ±50mm | |
| 13 | central height | 1600±50mm | |
| 14 | tank material | Stainless steel | |
| 15 | wall thickness | 6mm | |
| 16 | Tank cover material | cast-aluminum | |
| 17 | cooling method | spray | |
| 18 | Cooling medium | cooling water | |
| 19 | apray pipes | 10Pieces | |
| 20 | Nozzles | About 500 PCS | |
| 22 | pipe-carrying method | semi-circle carrying panel | |
| 23 | outlet seal plate specification | Depend on customers | |
| 24 | ,all the Fasteners and structure components inside the tank | stainless steel or nylon componnents | |
| 25 | Liquid level controlling method | floating ball+electromagnetic valve | |
| 26 | water inlet diameter | 2" | |
| 27 | water outlet diameter | 1.5" | |
| 28 | tank appearance | Polygon | |
