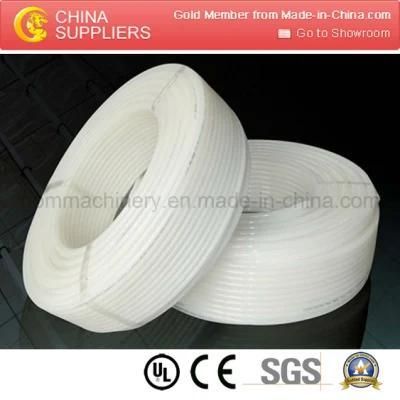

PE HDPE LDPE LLDPE Plastic Pipe Manufacturing Line
Linyi Kunhong Tools Co., Ltd.Base Info
Description
SPECIFICATIONS FOR PE PIPE EXTRUSION LINEModel Pipe spec(mm) Auxiliary extruder Max.output
(kg/h) Power of main power(kw) GWG63-PE Φ20-Φ63 GW65/38 250-300 75/90 GWG110-PE Φ63-Φ110 GW65/38 250-300 90 GWG250-PE Φ75-Φ250 GW75/38 500-550 185 GWG450-PE Φ160-Φ450 GW90/38 700-750 250 GWG630-PE Φ315-Φ630 GW120/33 900-1100 280 GWG800-PE Φ400-Φ800 GW150/33 1000-1200 315 GWG1000-PE Φ630-Φ1000 GW150/33 1000-1200 315 GWG1200-PE Φ800-Φ1200 GW120/33
GW90/38 1500-1700 280/220
(kg/h)
GW90/38
List of the line
| NO. | Equipment | Qty. | Power (KW) | Length (m) | Weight (T) |
| 1 | Automatic Feeder and Drier | 1set | |||
| 2 | GW65/33 Single Screw Extruder | 1set | 97 | 3 | 2.32 |
| 3 | GW25/25 Color strip Extruder | 1set | 5.5 | 1.2 | 0.3 |
| 4 | (20-63)Mould(including heater and calibrator) | 1set | 11 | 0.6 | 0.35 |
| 5 | Vacuum Tank | 1set | 13 | 9 | 0.8 |
| 6 | Haul-off unit | 1set | 3 | 2.2 | 0.8 |
| 7 | NO-DUST Cutter | 1set | 2.2 | 2.9 | 0.45 |
| 8 | Stacker | 1set | 6 | 0.35 | |
| 9 | Spare Parts | 1set |
