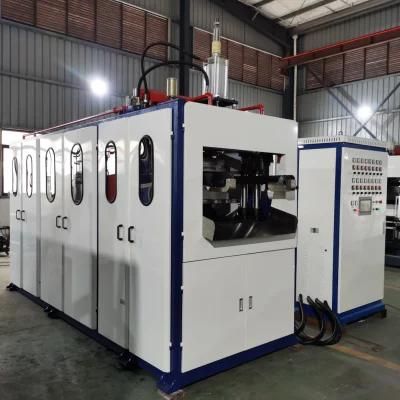

Cup Thermoforming Machine Cup Making Machine for PP/Pet

BEHAPPY CRAFTS (SUZHOU) CO., LTD.

Base Info

Description

Material

PP/PE/PS/PET/PVC (Hard Sheet)

Sheet Thickness

0.3-2.0mm

Sheet Width

500-720mm

Max Install Area Of Mould

750×350mm²

Max Forming Area

720×320mm²

Up Heater Power( More length )

Heating enough ensure cup in good shape

10Rows×8Zones×800w

Down Heater Power

9Rows×8Zones×800w

Max Shaping Depth

170mm(Can Be Adjust)

Max Forming Depth

130mm(Can Be Adjust)

Productivity

10-30 Strokes/min

Heating Rated Power

About 50kw/hour

Total Power

140Kw

Main Motor Power

11Kw

Power Supply

380V/50Hz(Three Phase Four Wire)

Voltage

0.6-0.8Mpa

Air Volume Required

2500~3500L/min

Water Volume Required

40~45L/min

Machine Weight

About 6T

Overall Dimension

4.5m×1.8m×2.4m

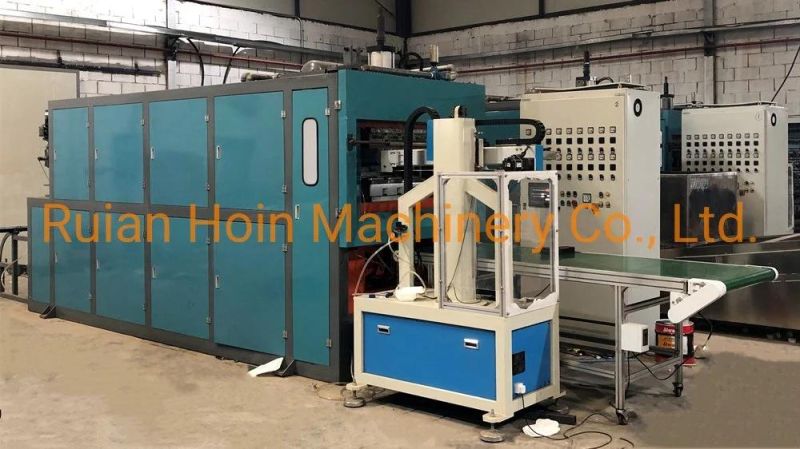

D.Machine Is Running At The Customer's Factory

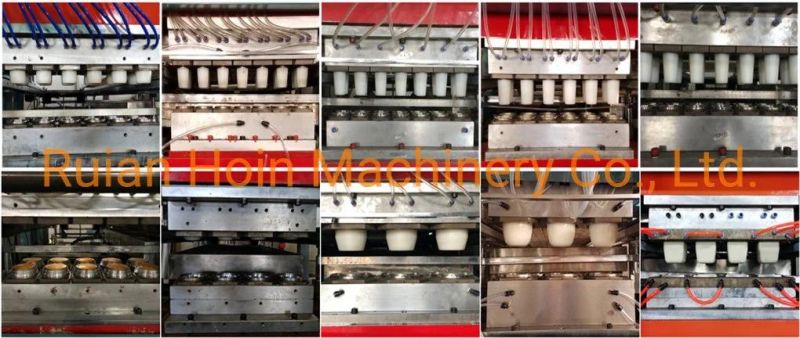

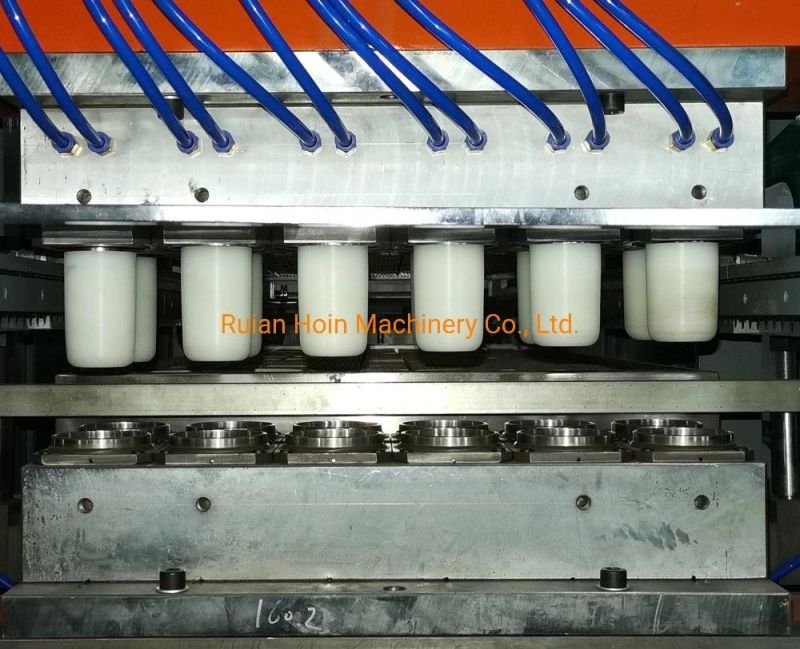

Cup Thermoforming Machine Cup Making Machine for PP/PetE.Thermoforming Machine Moulds

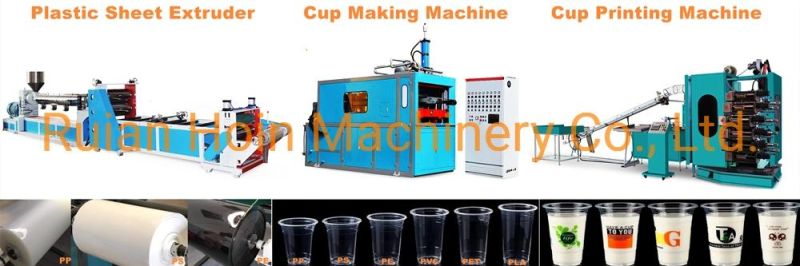

Cup Thermoforming Machine Cup Making Machine for PP/PetCup Thermoforming Machine Cup Making Machine for PP/PetF.Disposable Plastic Cup Production line
Cup Thermoforming Machine Cup Making Machine for PP/PetH.MORE PRODUCTS
1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
   Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
