Water Drinking Cup Plastic Thermoforming Machine Plastic Cup Thermoforming Machine

BEHAPPY CRAFTS (SUZHOU) CO., LTD.

Base Info

Description

Material

PP/PE/PS/PET/PVC (Hard Sheet)

Sheet Thickness

0.3-2.0mm

Sheet Width

500-720mm

Max Install Area Of Mould

750×350mm²

Max Forming Area

720×320mm²

Up Heater Power( More length )

Heating enough ensure cup in good shape

10Rows×8Zones×800w

Down Heater Power

9Rows×8Zones×800w

Max Shaping Depth

170mm(Can Be Adjust)

Max Forming Depth

130mm(Can Be Adjust)

Productivity

10-30 Strokes/min

Heating Rated Power

About 50kw/hour

Total Power

140Kw

Main Motor Power

11Kw

Power Supply

380V/50Hz(Three Phase Four Wire)

Voltage

0.6-0.8Mpa

Air Volume Required

2500~3500L/min

Water Volume Required

40~45L/min

Machine Weight

About 6T

Overall Dimension

4.5m×1.8m×2.4m

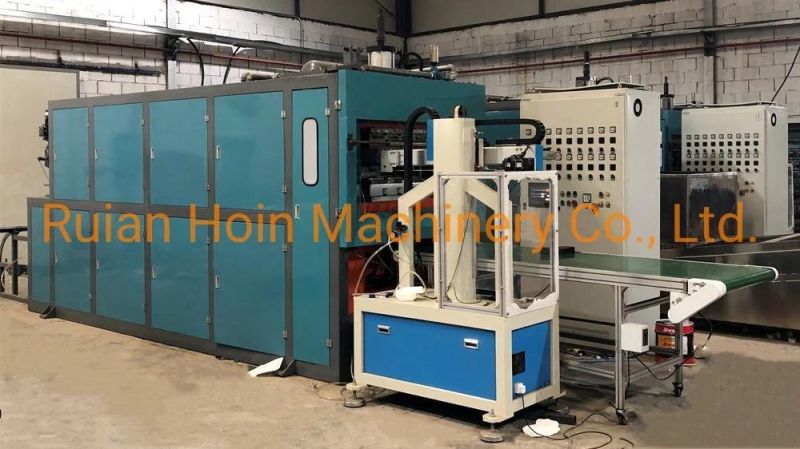

D.Machine Is Running At The Customer's Factory

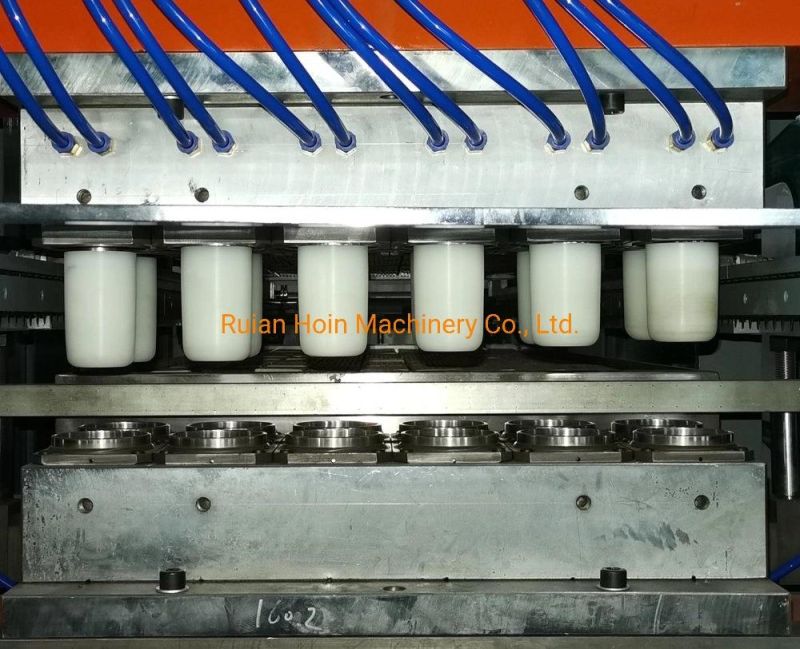

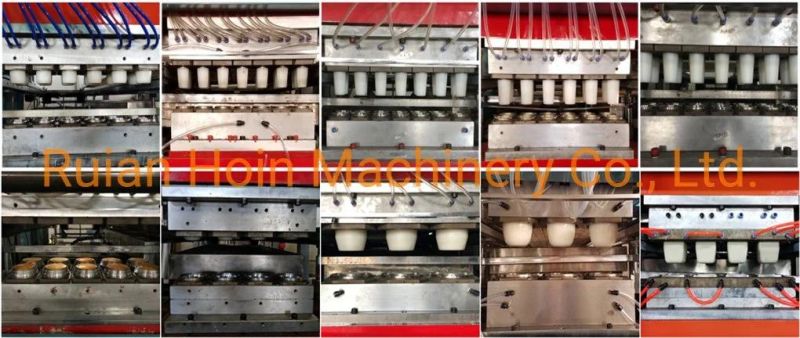

Water Drinking Cup Plastic Thermoforming Machine Plastic Cup Thermoforming MachineE.Thermoforming Machine Moulds
Water Drinking Cup Plastic Thermoforming Machine Plastic Cup Thermoforming MachineWater Drinking Cup Plastic Thermoforming Machine Plastic Cup Thermoforming MachineF.Disposable Plastic Cup Production line
Water Drinking Cup Plastic Thermoforming Machine Plastic Cup Thermoforming MachineH.MORE PRODUCTS
1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
   Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
