• Model NO.：LTDG-Series
• Model No.：Ltdg-5y
• Cooling Water Quantity：Bigger Than 10m3,H
• Power Consumption：15kw
• Power Supply：380V,50Hz
• Input Capacity：50-70kgs,Batch
• Shelf Area：5 Square Meters
• Weight：3000kgs
• Transport Package：Wooden Case
• Specification：CE Certificate
• Trademark：LTPM CHINA
• Origin：Zhejiang, China
• Production Capacity：20 Sets Per Month

Freeze Drying machine
Unit
Production for Batch
LTDG-1
LTDG-50
LTDG-75
LTDG-100
Nominal Area
m2
1
50
75
100
Capacity
Area of the heat shelf
m2
1.08
59.9
89.9
110.1
Tray Area

1.02
50.2
75.8
101
Tray Size
mm
780*510*37
Pallet No.*Skip

6pcs*1
64pcs*2
64pcs*
64*4
Total Volume Dehydration (Max
Kg/batch
15
1000
1500
2000
Basic Parameter
Heating Shelf
Width
mm
540
Length
mm
1630
3260
4890
6520
Number

17*2
Volume of Drying Library
m
2200*4760
2200*7390
2200*10020
2200*12650
Heat Mode

Radiation



Heating Shelf Space

75
Heating Shelf Range
°C
Room Temperature-120°C
Heating Shelf Cooling rate
°C/min
≥5°C/min
Heating Shelf heating rate
°C/min
≥3°C/min
Condenser Lowest Temperature
°C
≤-45°C
System Lowest Pressure
Pa
≤13.3
Pumping Rate
min
10.01*105Pa-133Pa≤15min
Basic Supply
Cooling Water qty: ≤30°C, 0.15-0.2MPa
m3/hr
0.9
30
48
68
Total Power
kw
8
75
100
160
Steam Consumption
L/hr
220(100)
450(200)
670(280)
900(340)
Compressed air consumption:07-1.0Pa.0.9
L/hr
0.45
Water Consumption: 50°C, 0.10-0.20MPa
kg/batch
5
10
10
15
Nominal Area
m2
1
50
75
100
Matching Cold Storage
Cooling Water qty: ≤30°C, 0.15-0.2Pa
m3/hr
0.9
8
10
13
Total Power
kw
8
12
19
23
 Technical Features1The JAPAN ULVAC vacuum pump has been stable operation ensure2Vacuum pump check valve of high performance and vacuum pump can avoid backing due to the difference of atmospheric when pump stops3Multi-stage vacuum setting function, you can achieve a degree of vacuum freeze-drying cycle to control of multiple variables4Vacuum pump connected to the chamber isolated by electric vacuum solenoid valve he pump features an automatic isolating valve to
hold the chamber pressure in the event of power failure or vacuum valve not reach as set point.Product Highlights

FOOD GRADE MATERIAL PIPE
Seamless pipe,to achieve the best freezing effect

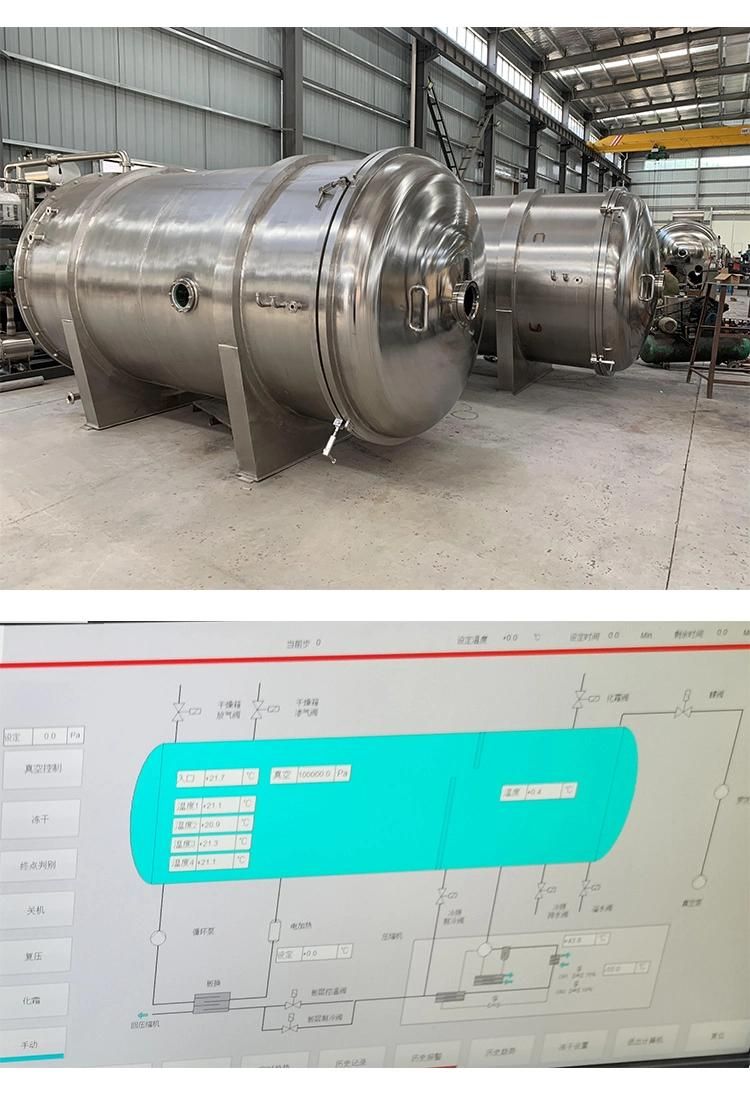

PLC CONTROL
Colour LCD Touch Screen Controller Authorized login with password protectionHistory Paramater Curve Review Unattened operation without need of care by user

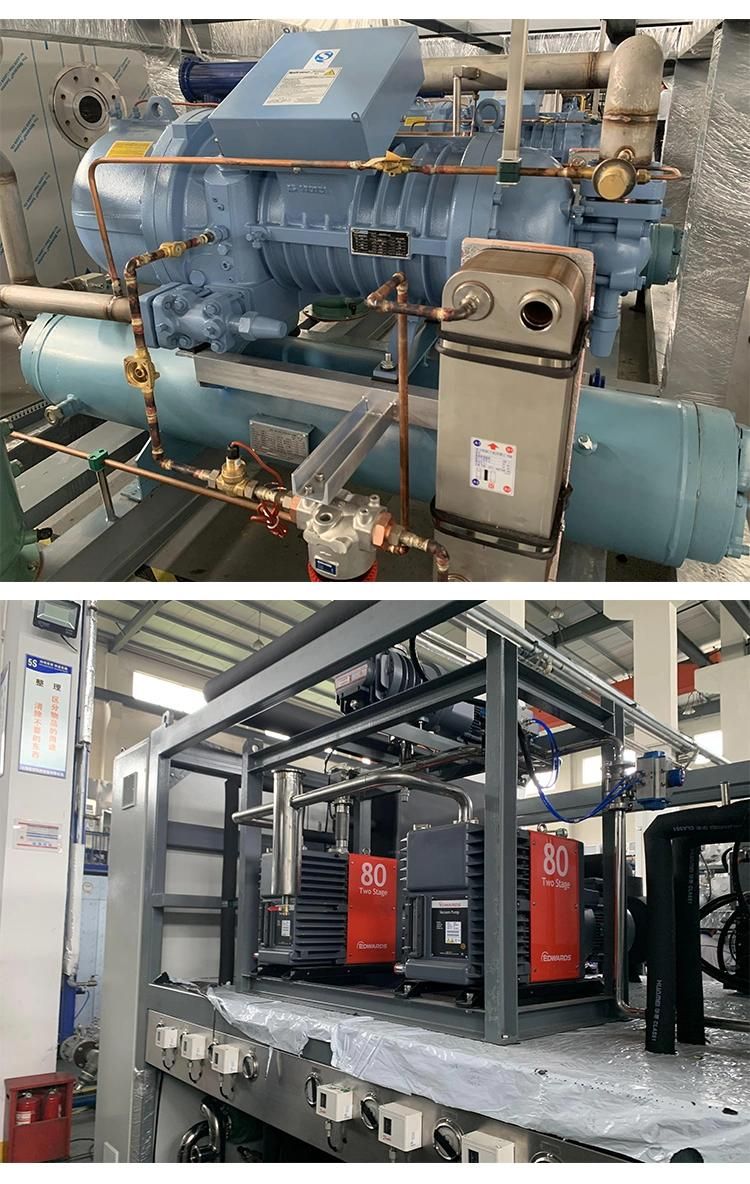

Freeze system
Advanced system,with low operating current andlow energy consumption
VACUUM PUMP
Oil-seal vaccum pump,to ensure high efficient operation with equal quality.
Final Product

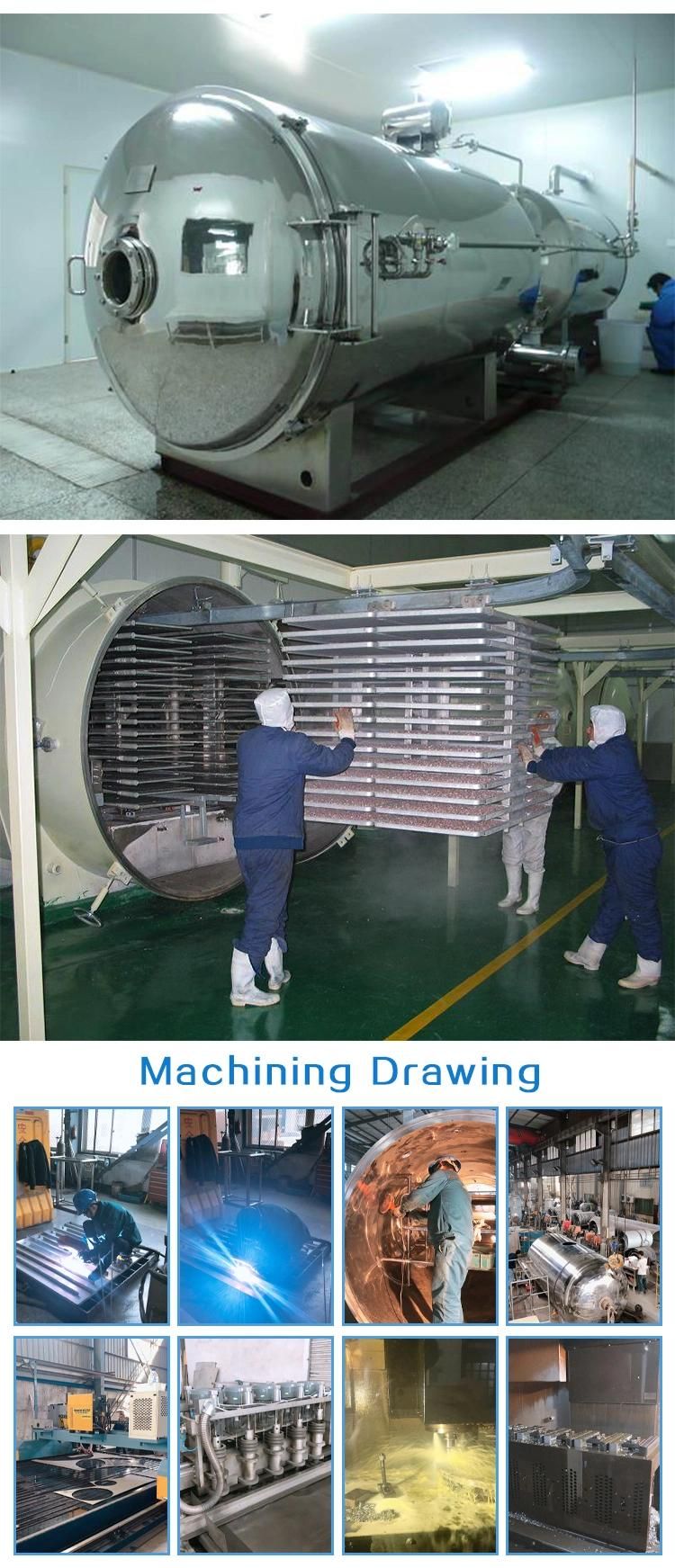

Project at Clients Site:
After Sales Service
Installation and after sales service: Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra. Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine's life. After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you. 2.We have 24hours hot line for Technical Support. 3.We get 18hours internet line for technical support. 4.Video camera in workshop to help you adjust and solve machine problem in working situation.Company Introduction

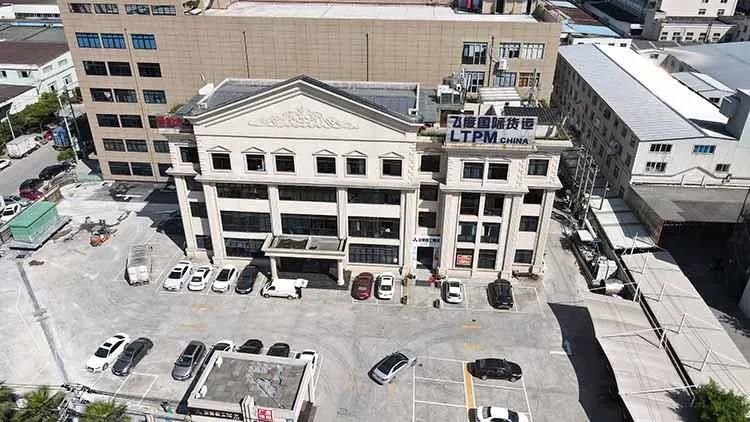

Our CompanyZhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision.

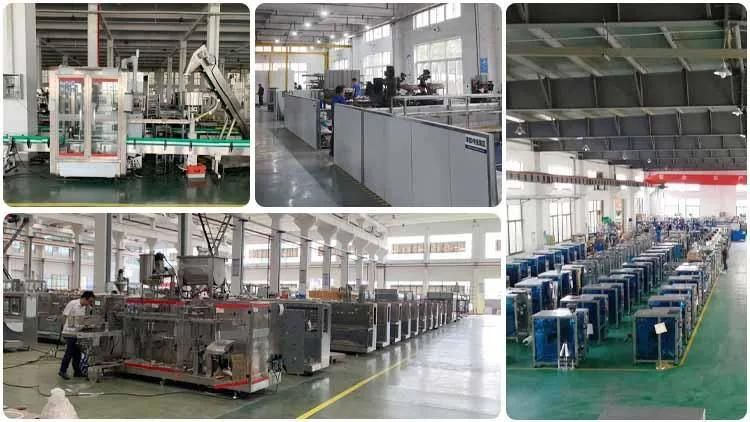

Our Machinery Manufacturing WorkshopImported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business TeamWarm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our CertificatesISO, CE, S
Packing & ShippingAll machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
