• Model NO.：GD150Q-S
• Electric Power：27kw,380V
• Total Length：16m
• Max Candy Weight：as Per as Candy Size
• Room Condition：Temp20~25°c
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：TGmachine
• Origin：China
• HS Code：84382000
• Production Capacity：150kg,H

Basic Info.

Model NO. GD150Q-S Electric Power 27kw/380V Total Length 16m Max Candy Weight as Per as Candy Size Room Condition Temp20~25°c Transport Package Wooden Case Specification CE, ISO9001 Trademark TGmachine Origin China HS Code 84382000 Production Capacity 150kg/H

Product Description

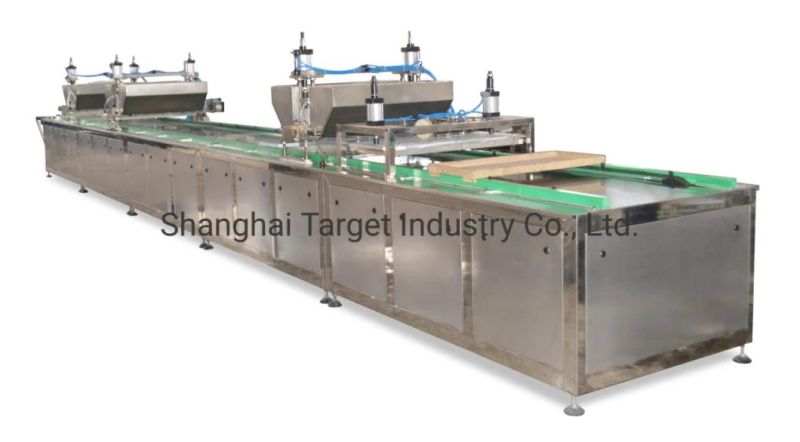

GD150Q-S Jelly candy production Line (starch mogul line)

FEATURES:
The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies. It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.





CANDY SAMPLES:

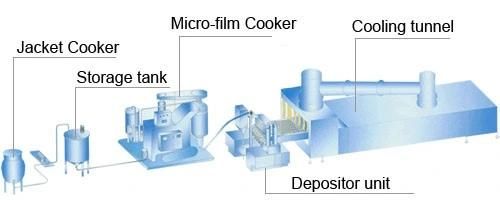

PROCESS FLOWING LAYOUT CHART:




TECHNICAL SPECIFICATIONS:

Model	GD150Q-S
Production capacity   ( kg/h)	150
Weight of each candies(g):	As per candy size
Electric power needed	18kW/380v
Refrigerator and cooler	40,000kcal/h 18kW
Compressed air consumption Compressed air pressure	0.35m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55
Length of the whole line   (m)	16m
Gross weight           ( Kgs)	Approx.4500

Warranty:
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (FREE). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
