Main technical specifications

Hole range

90 -130 mm

Working Voltage

380 V

Hole depth

30 m

Cable reel capacity

60 m

Drill pipe size

68 *1,200 mm

Electric motor Power

55 kW

Number of pipes

24+1

Diesel engine power

58 kW

Feed beam length

3,010 mm

Tramming speed

3/1.5 km/h

Max.rotation torque

2,600 N.m

Turning radius

Pivot turning 360°

Rotation speed

68 -103 rpm

Climbing ability

30°

Pullup/ Feed force

25 kN

Feed beam rotation angle

360°

Air compressor pressure

10-25 bar

Working face dimensions: Width x Height

5,250x4,057 mm

Recommended compressor F.A.D.

4.5 -15 m3/min

Dimensions (Length x Width x Retracted / extended height)

6,000 X 2,400 X 2,550 mm

DTH hammer size

3"/4"

Total weight

7,500 kg

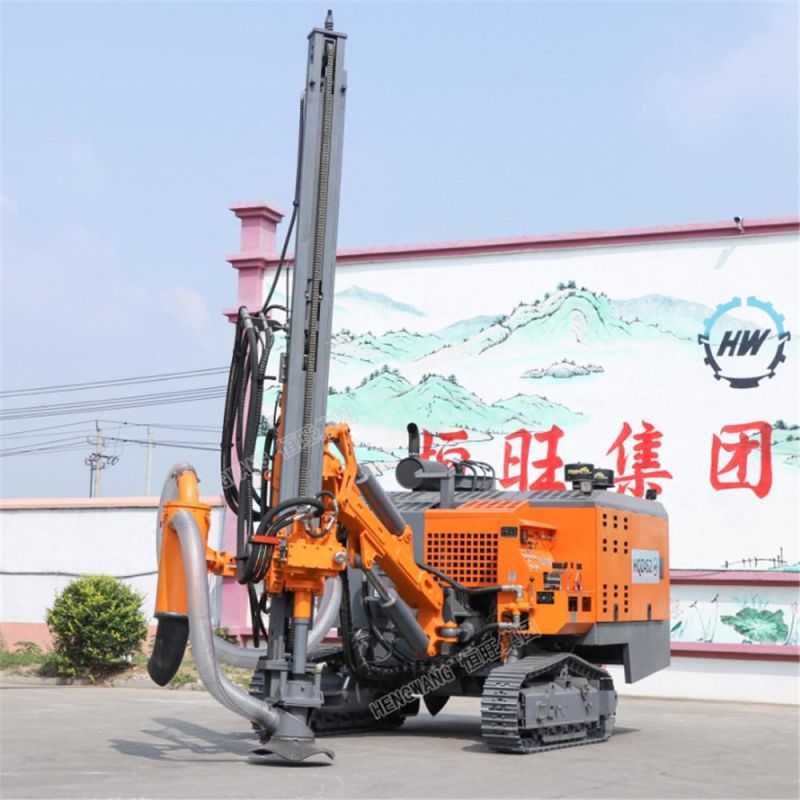

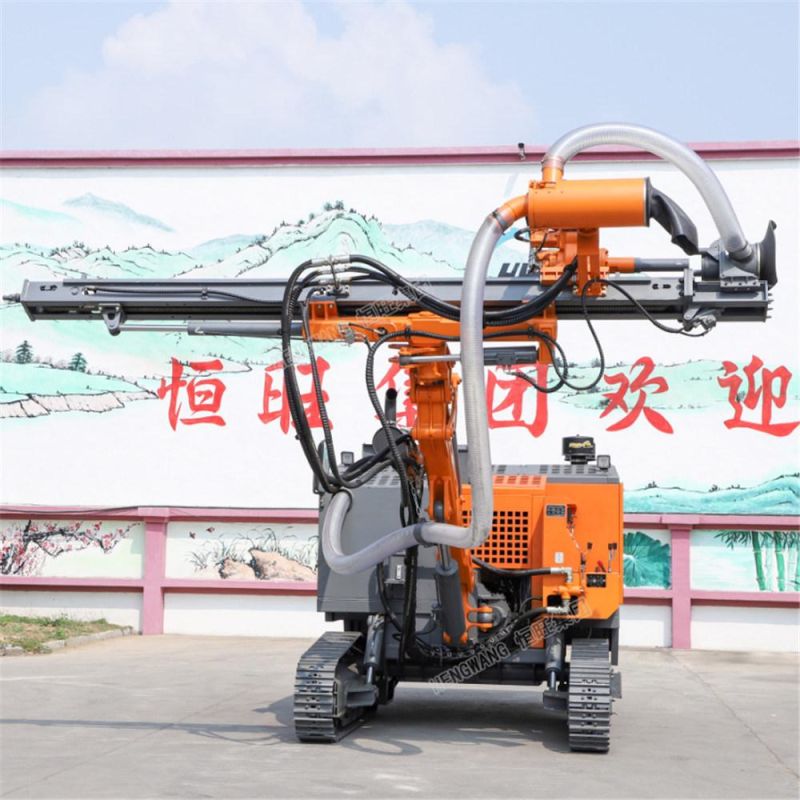

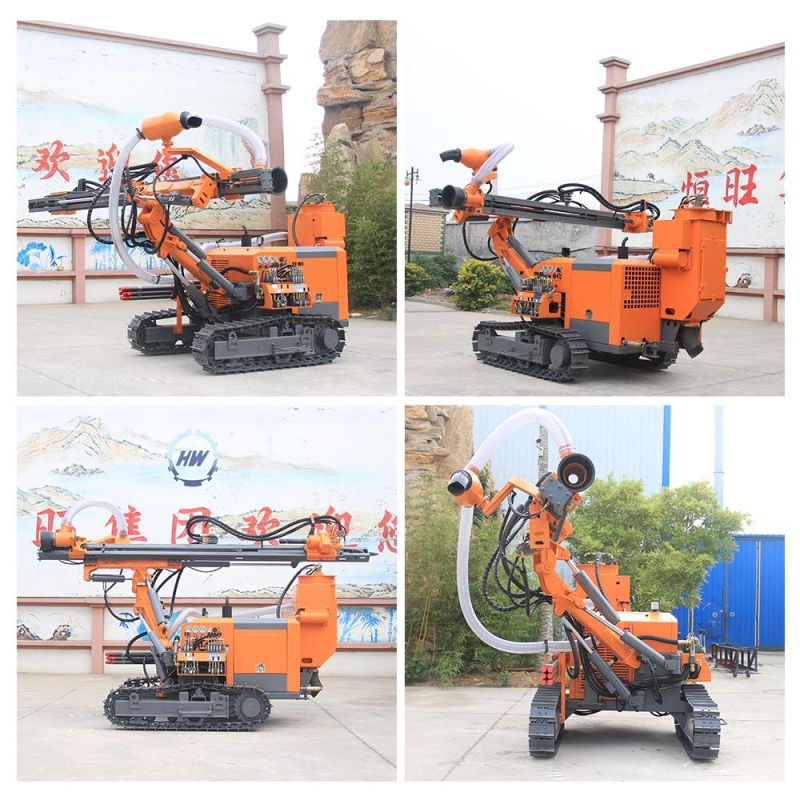

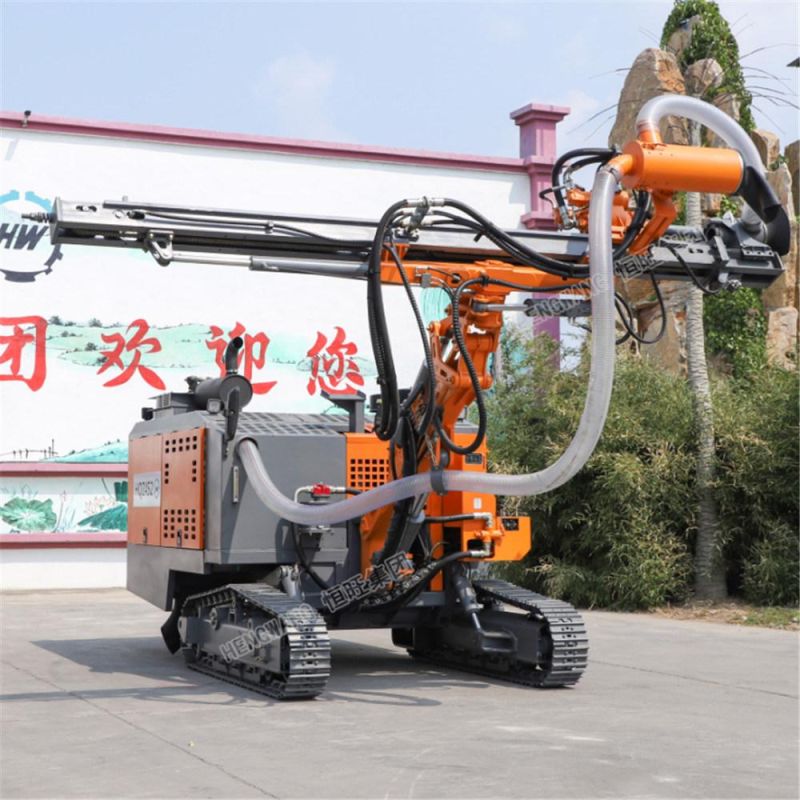

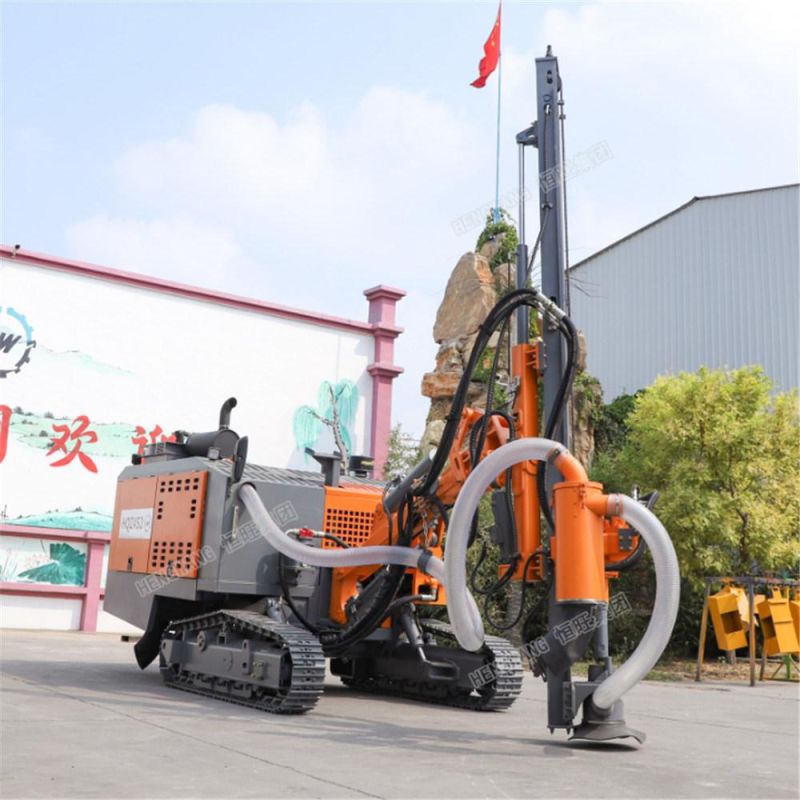

Picture:
