Hw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling Rig

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Main Specifications

HW420S

Diesel Engine

Yuchai 59 kW

Electric Motor

45 kW

Hole Depth

60 m

Drill Pipe Sizes

76X3,000 mm

Hole Dia

110 - 203 mm

DTH Hammer

4"/5"/ 6"

Rotation Torque ( Max.)

4,600 N.m

Rotation Speed

60 -160 rpm

Feed Force ( Max.)

35 kN

Feed Speed

26 m/min

Feed Type

Chain & Cylinder

Pull Up Force ( Max.)

80 kN

Tramming Speed ( Max.)

2.5 km/h

Gradient

25°

Total Weight

5,000 kg

Transportation Dimensions

5,800 X 2,250 X 2,250 mm

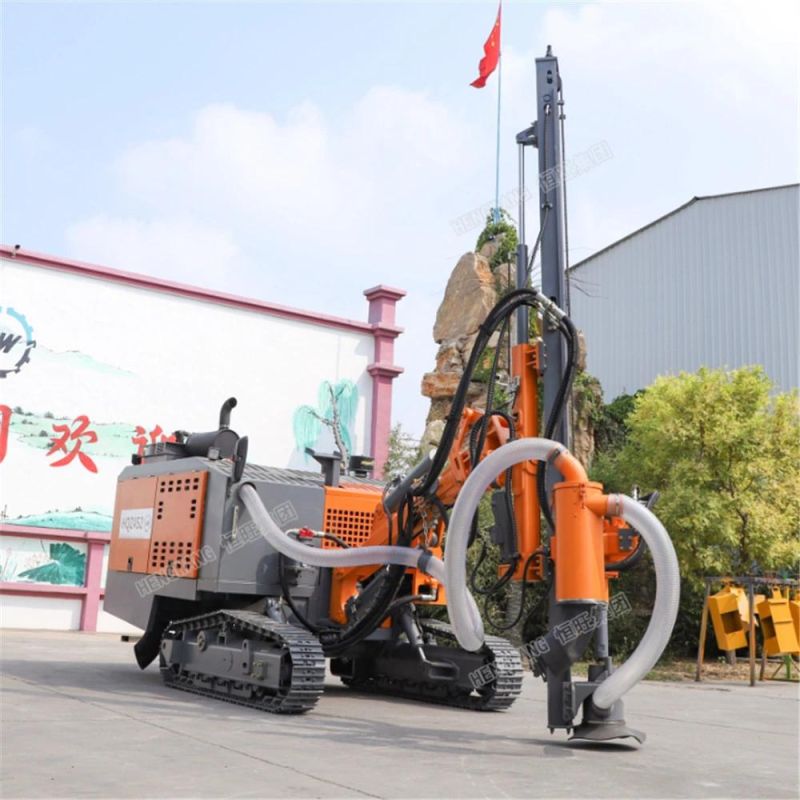

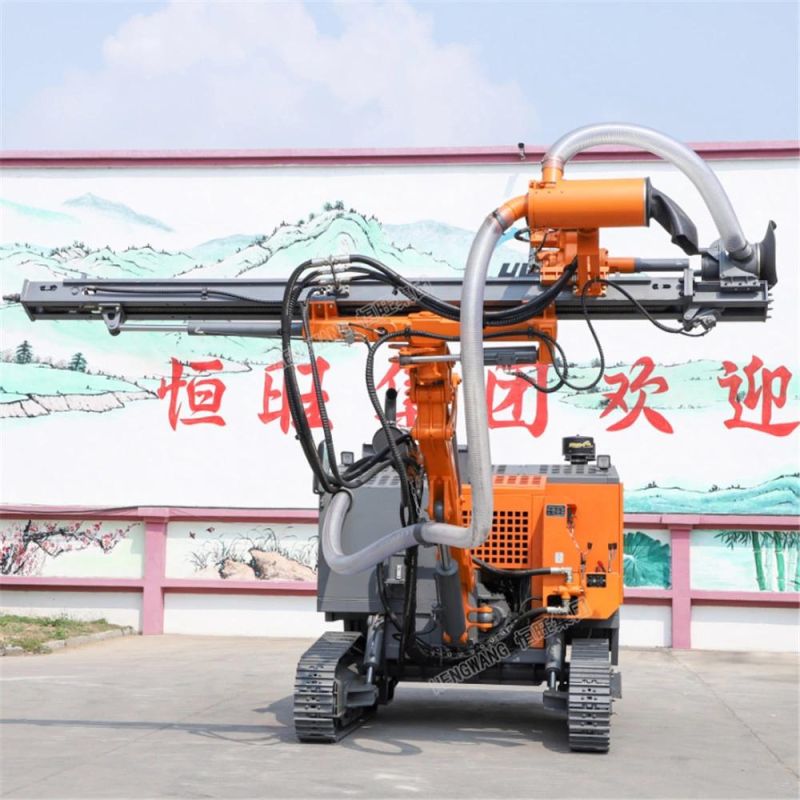

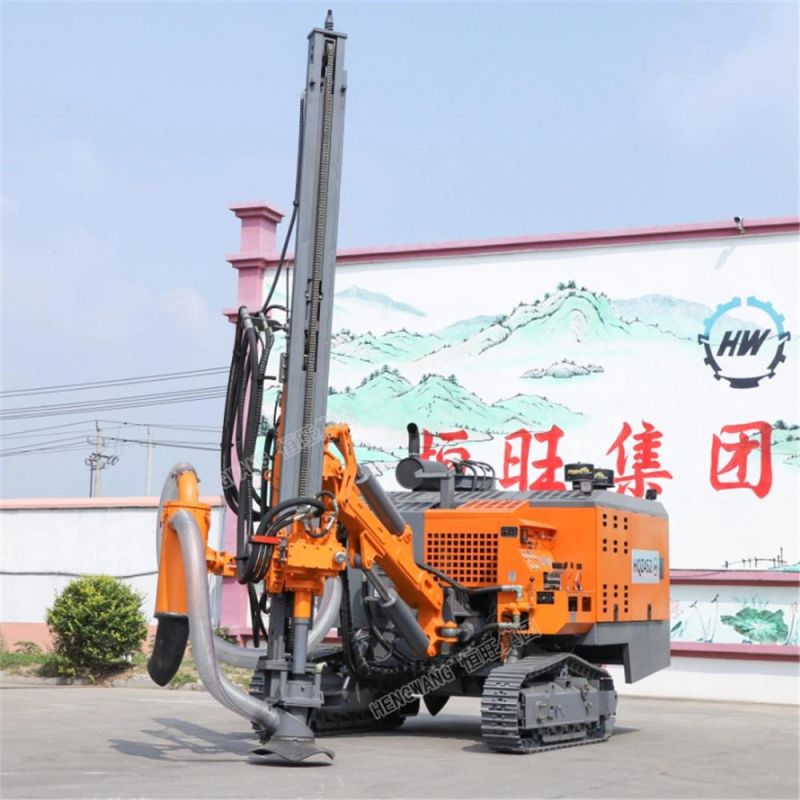

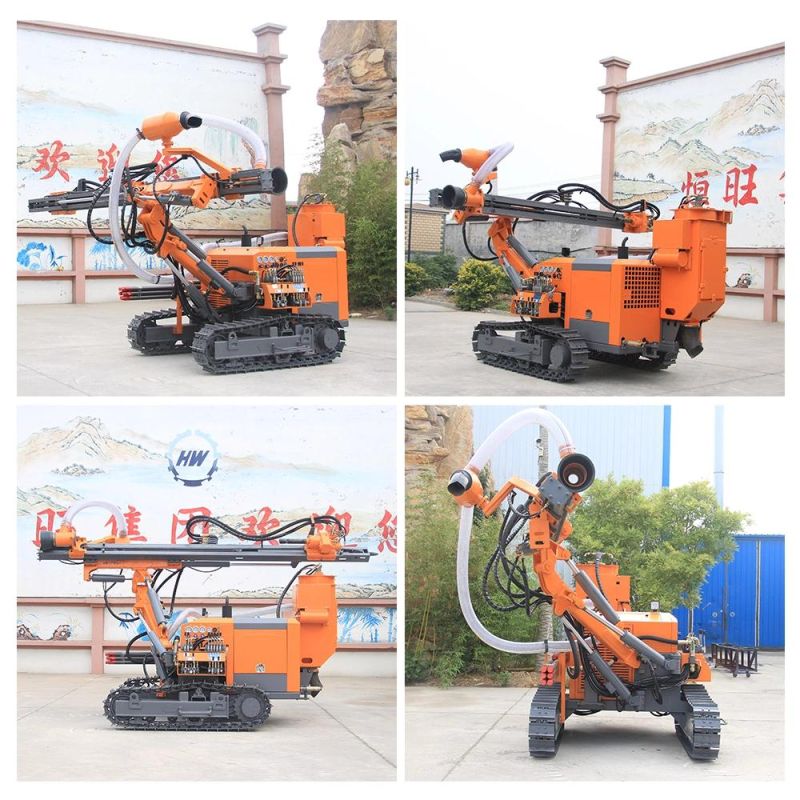

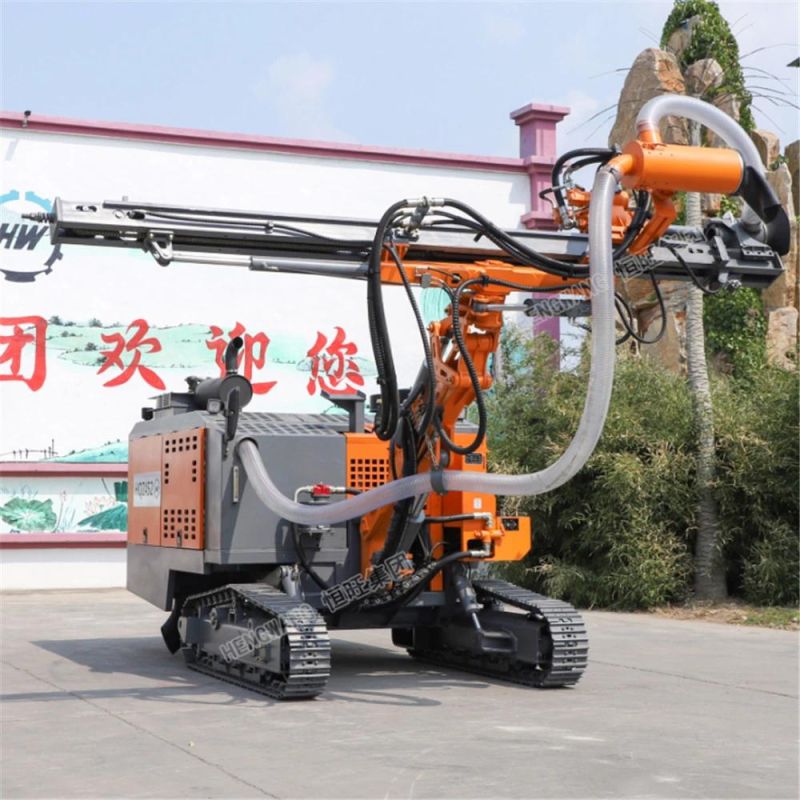

Picture:
Hw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling RigHw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling RigHw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling RigHw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling Rig

Hw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling Rig
