• Material：Stainless 304, 316
• Width：150 - 6000 mm, Can Make Any Wide
• Wire Diameter：1.0,1.2,1.4,1.5,1.6,1.8,2.0,2.5,3.0 mm
• Pitch：4 - 20 mm or Customized
• Egde：Single Loop , Double Loops
• Baffle：Can Be Customized
• Typical Applications：Cooling, Frying, Baking, Drying, Heating, Coating
• Transport Package：Plywood Box for Export Standard
• Specification：customized
• Trademark：KENSIDE
• Origin：China
• HS Code：84389000
• Production Capacity：10000 Meters,Month

Basic Info.

Material Stainless 304, 316 Width 150 - 6000 mm, Can Make Any Wide Wire Diameter 1.0/1.2/1.4/1.5/1.6/1.8/2.0/2.5/3.0 mm Pitch 4 - 20 mm or Customized Egde Single Loop / Double Loops Baffle Can Be Customized Typical Applications Cooling, Frying, Baking, Drying, Heating, Coating Transport Package Plywood Box for Export Standard Specification customized Trademark KENSIDE Origin China HS Code 84389000 Production Capacity 10000 Meters/Month

Product Description

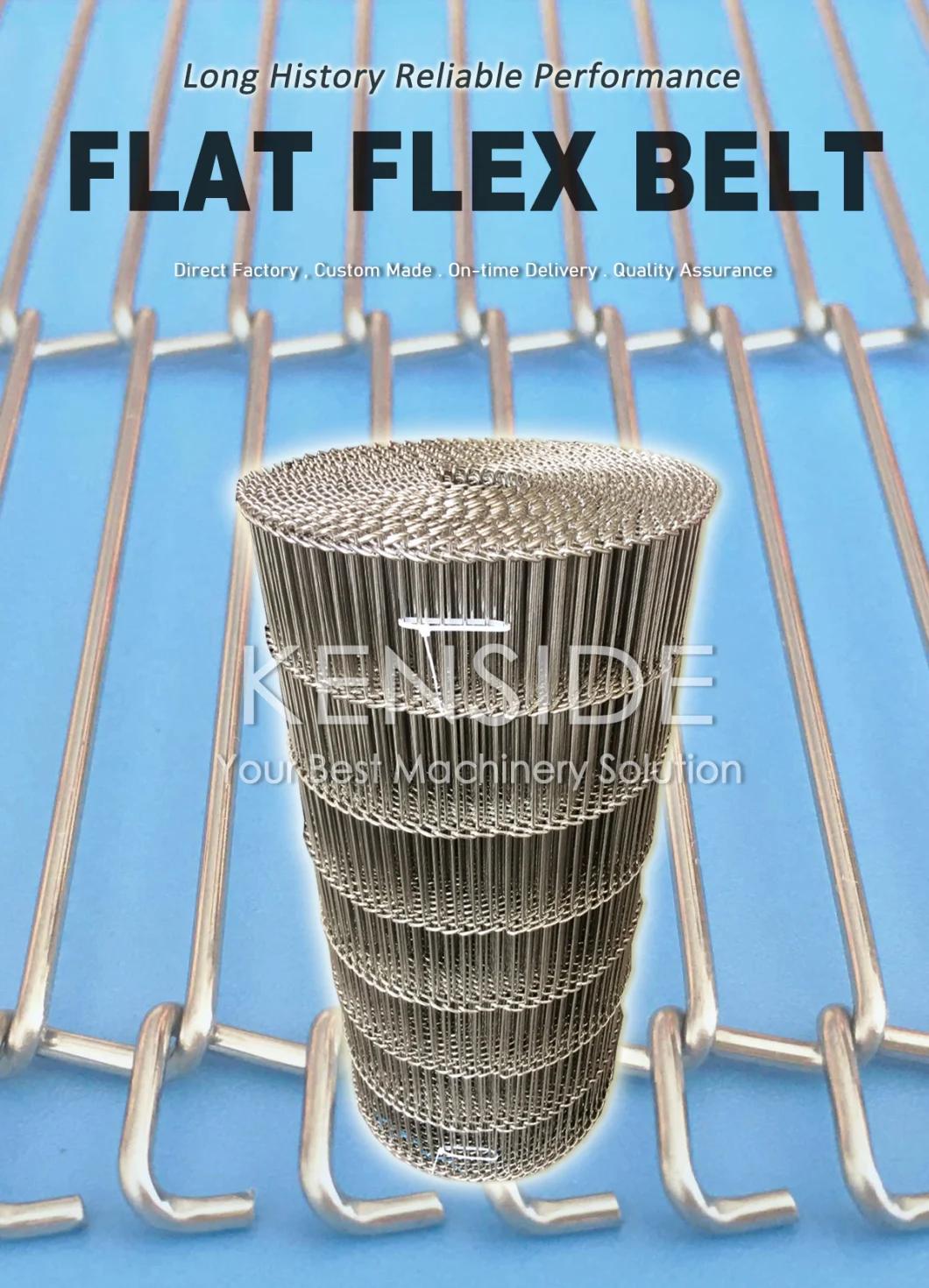

                                      Flat Flex Belt or Flat Flex Conveyor Belt

Flat flex conveyor belt is one of the earliest conveyor belts used in the transportation industry, also known as chocolate belt or Z-shaped mesh belt. The structure is simple, which is made of single wires connected by bending. With a large proportion of openness holes, liquid and air can pass through the mesh easily, which is suitable for processing applications requiring enormous air and liquid through. Light belt weight, make its conveying efficiency much higher comparing with the other conveyor belts, suitable for food processing industry - heating, cooling, frying, baking, drying, enrobing, packaging, chocolate coating, frozen food, canned food, seafood, etc., in other industries such as electronic equipments, chemical machineries, general conveying machineries and special conveying machineries and others.



Product Specifications:

Name	Flat Flex Belt
Material	stainless steel 304, 316
Width	150 - 6000 mm
Pitch	4 - 20 mm or customized
Wire Diameter	1.0/1.2/1.4/1.5/1.6/1.8/2.0/2.5/3.0 mm
Egde	Single Loop / Double Loops
Typical Applications	cooling, frying, baking, drying, heating, coating, etc

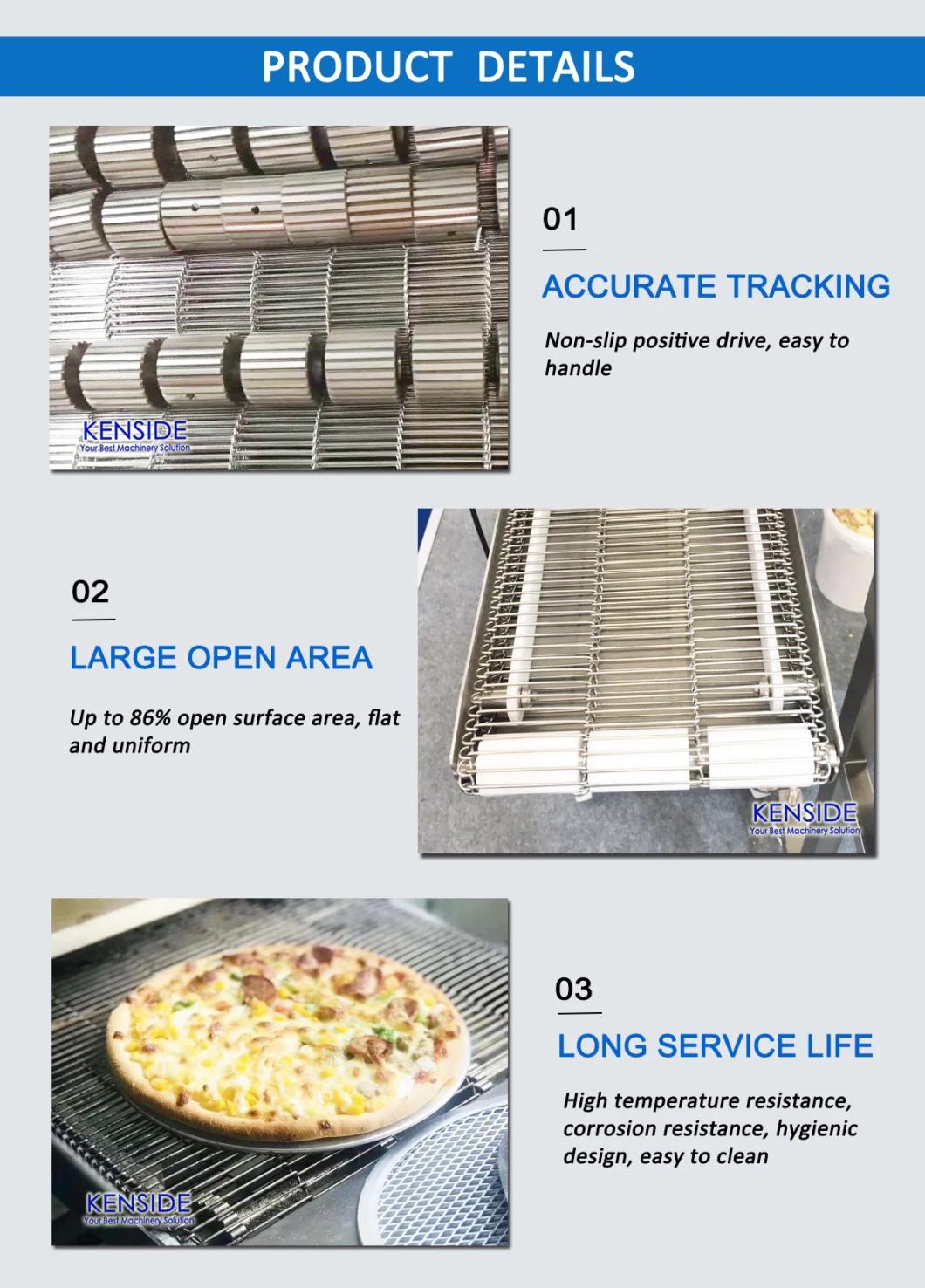

Product Details:



Our Advantages:
1. High elastic stainless wire from superior domestic or overseas suppliers - good wear resistance and corrosion resistance, high temperature and low temperature resistance, deformation resistance, high load bearing, shrinkage resistance, oxidation resistance, fracture resistance
2. It is made of high precision mold - high conveying precision and stability, and greatly improves conveying efficiency
3. Strict production process management, multiple quality checks before packaging and delivering.
4. All specifications can be customized, including belt width, pitch, wire diameter, etc.

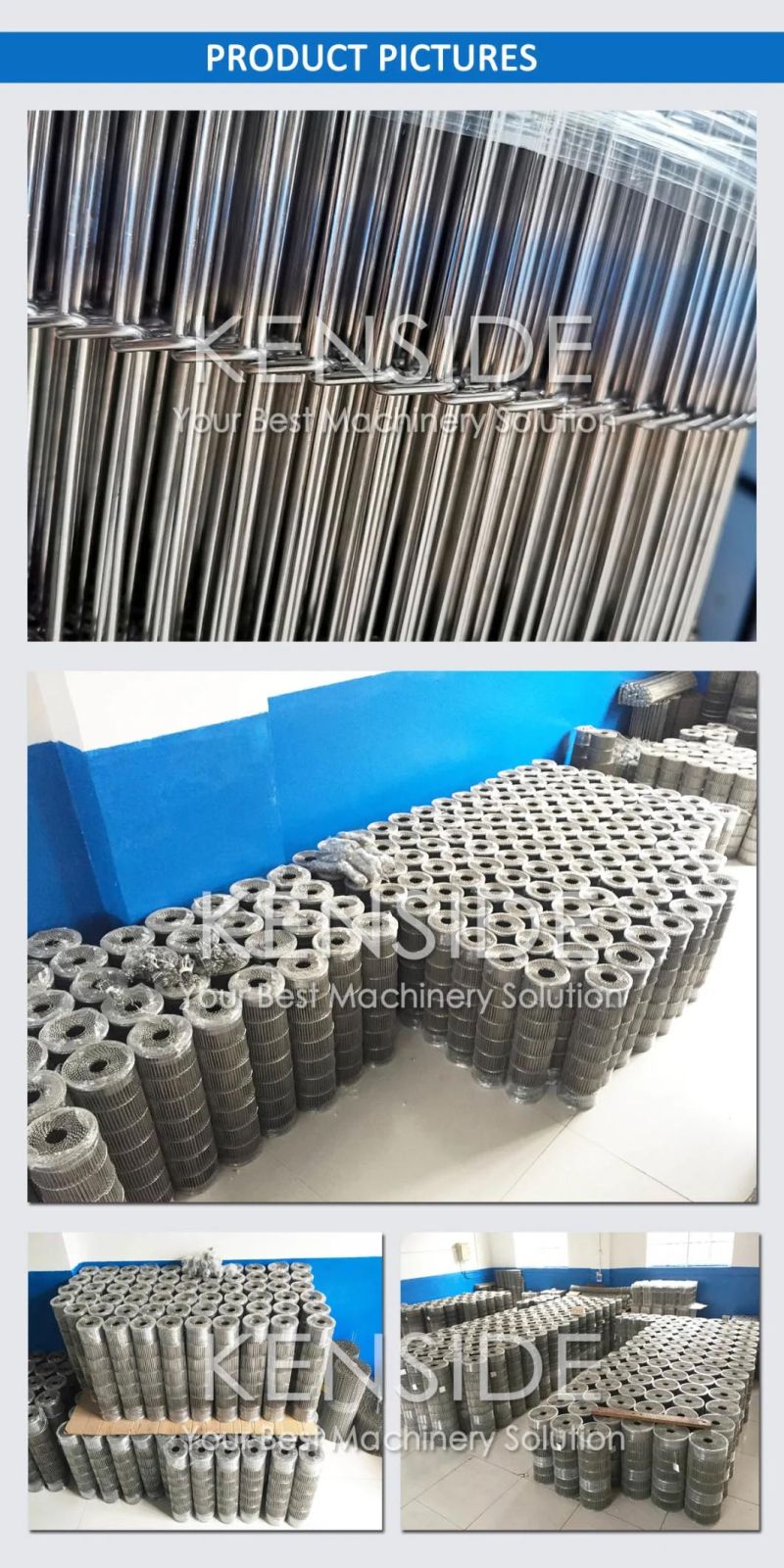

Product Pictures:

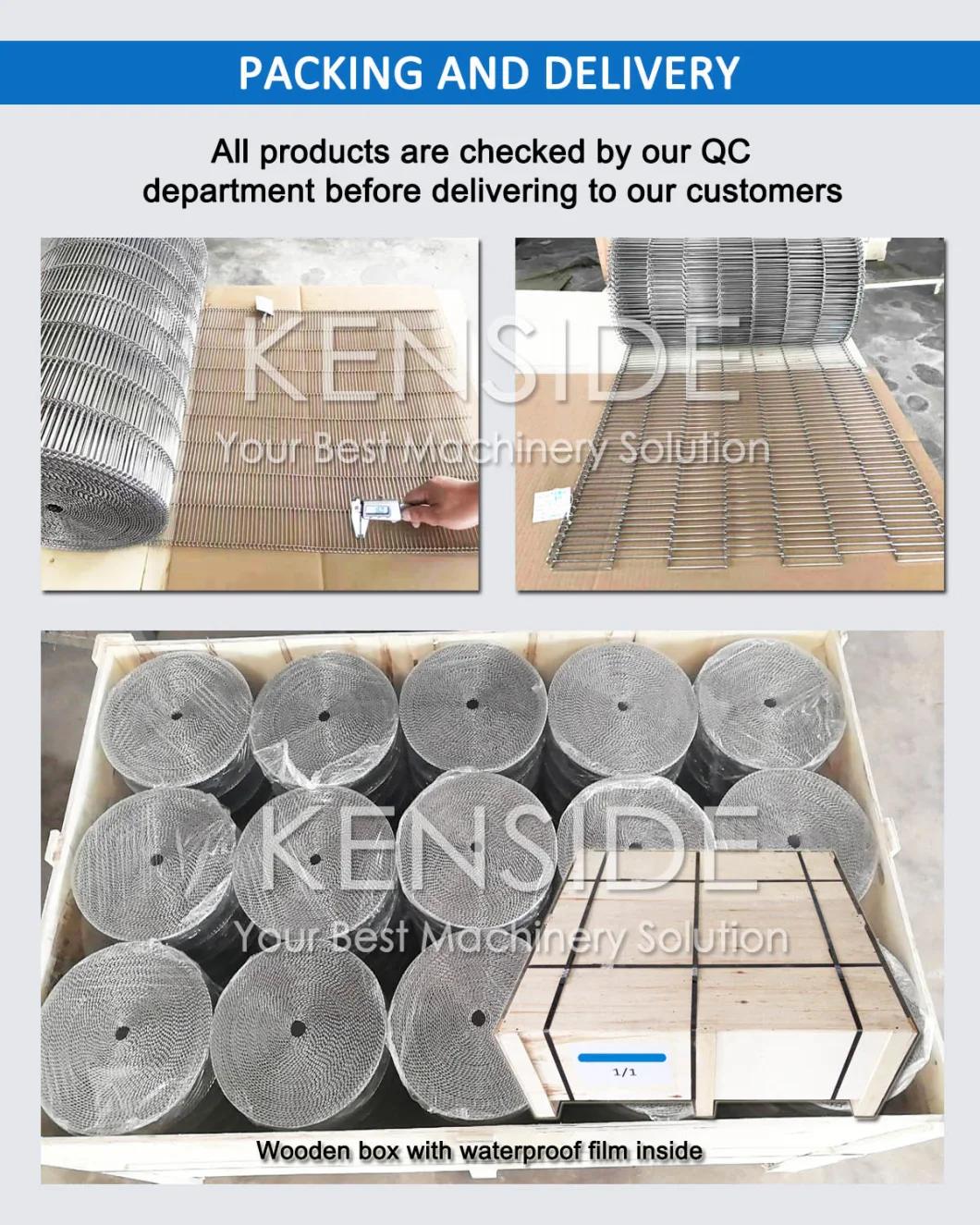

Packing and Delivery:

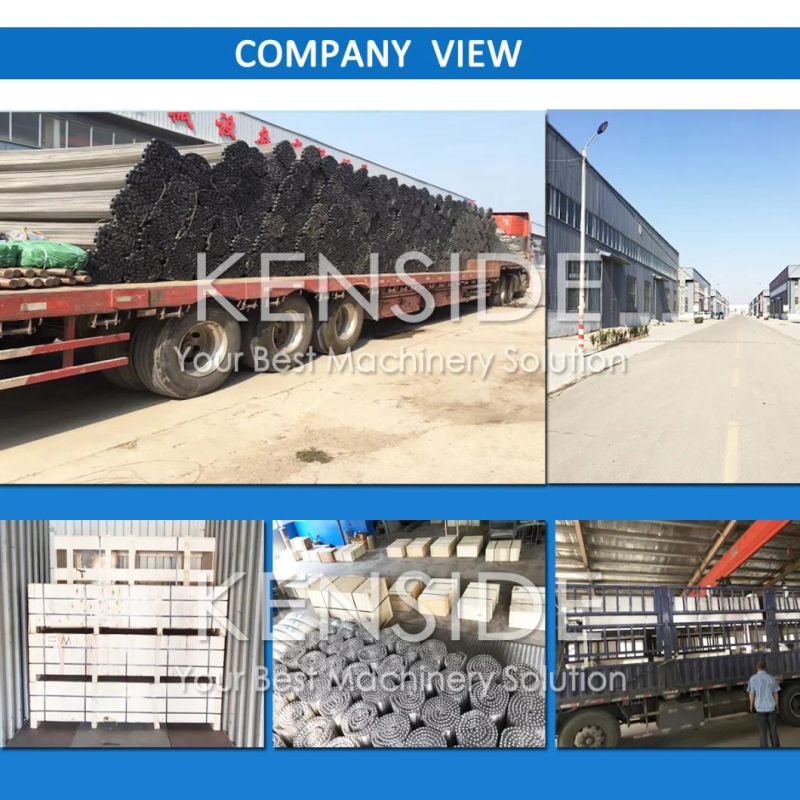

Company View:



Contact Us:
