• Material：Stainless Steel 304, 316
• Width：150 - 6000 mm
• Pitch：4 - 20 mm or Customized
• Wire Diameter：1.0,1.2,1.4,1.5,1.6,1.8,2.0,2.5,3.0 mm
• Egde：Single Loop , Double Loops
• Typical Applications：Cooling, Frying, Baking, Drying, Heating, Coating,
• Transport Package：Plywood Box for Export Standard
• Specification：customized
• Trademark：KENSIDE
• Origin：China
• HS Code：84389000
• Production Capacity：10000 Meters,Month

Basic Info.

Material Stainless Steel 304, 316 Width 150 - 6000 mm Pitch 4 - 20 mm or Customized Wire Diameter 1.0/1.2/1.4/1.5/1.6/1.8/2.0/2.5/3.0 mm Egde Single Loop / Double Loops Typical Applications Cooling, Frying, Baking, Drying, Heating, Coating, Transport Package Plywood Box for Export Standard Specification customized Trademark KENSIDE Origin China HS Code 84389000 Production Capacity 10000 Meters/Month

Product Description

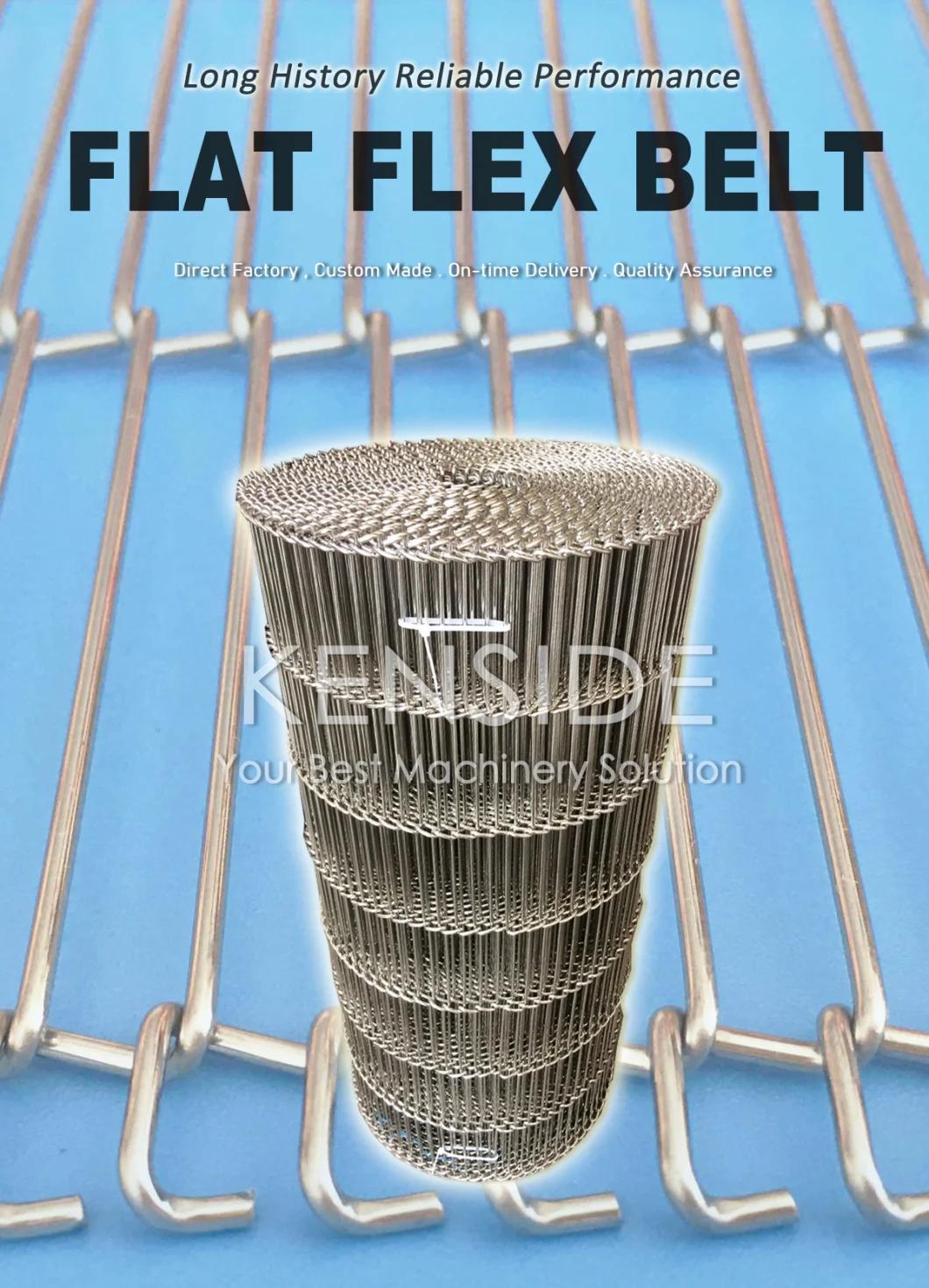

Stainless Steel Wire Belt
Flat flex belt is usually made of high elastic stainless steel wire and driven by stainless steel sprockets or nylon sprockets. The widths vary from 150mm to 6000mm. Special widths can be customized according to specific requirements. Single loop Edge(SLE) or double loops edge(DLE) structure, suitable for straight running or turn curve conveyors, followings are its main advantages -
(1)  Sprokets positive drive ensures stable tracking
(2)  Large opening area, good ventilation, air through and water through
(3)  Small drive rolls diameter
(4)  Easy to clean, more hygienic



Wire Belt Specifications:


Name	Flat Flex Belt
Material	stainless steel 304, 316
Width	150 - 6000 mm
Pitch	4 - 20 mm or customized
Wire Diameter	1.0/1.2/1.4/1.5/1.6/1.8/2.0/2.5/3.0 mm
Egde	Single Loop / Double Loops
Typical Applications	cooling, frying, baking, drying, heating, coating, etc

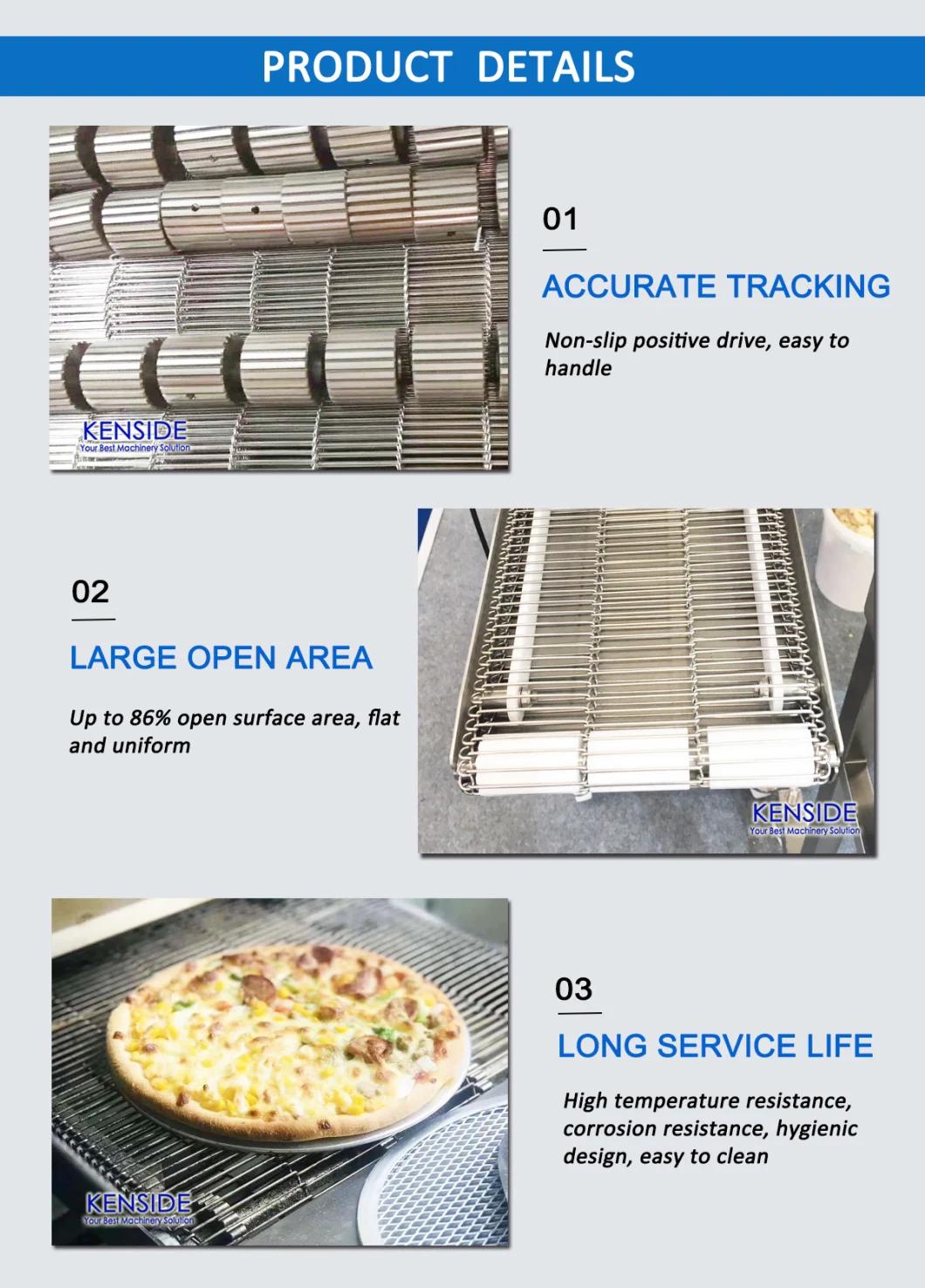

Wire Belt Details:



Our Advantages:
1. High elastic stainless wire from superior domestic or overseas suppliers - good wear resistance and corrosion resistance, high temperature and low temperature resistance, deformation resistance, high load bearing, shrinkage resistance, oxidation resistance, fracture resistance
2. It is made of high precision mold - high conveying precision and stability, and greatly improves conveying efficiency
3. Strict production process management, multiple quality checks before packaging and delivering.
4. All specifications can be customized, including belt width, pitch, wire diameter, etc.

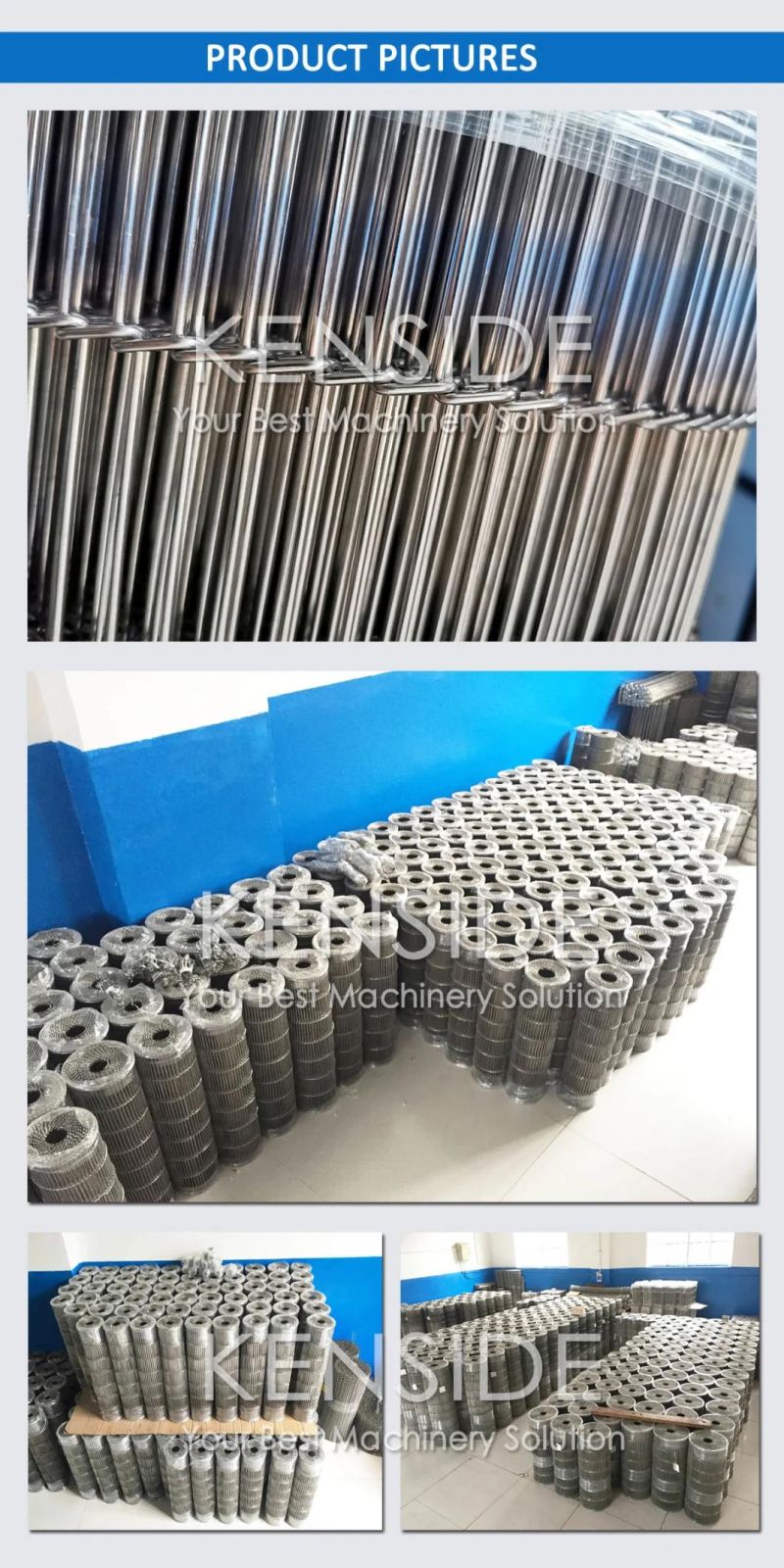

Wire Belt Pictures:

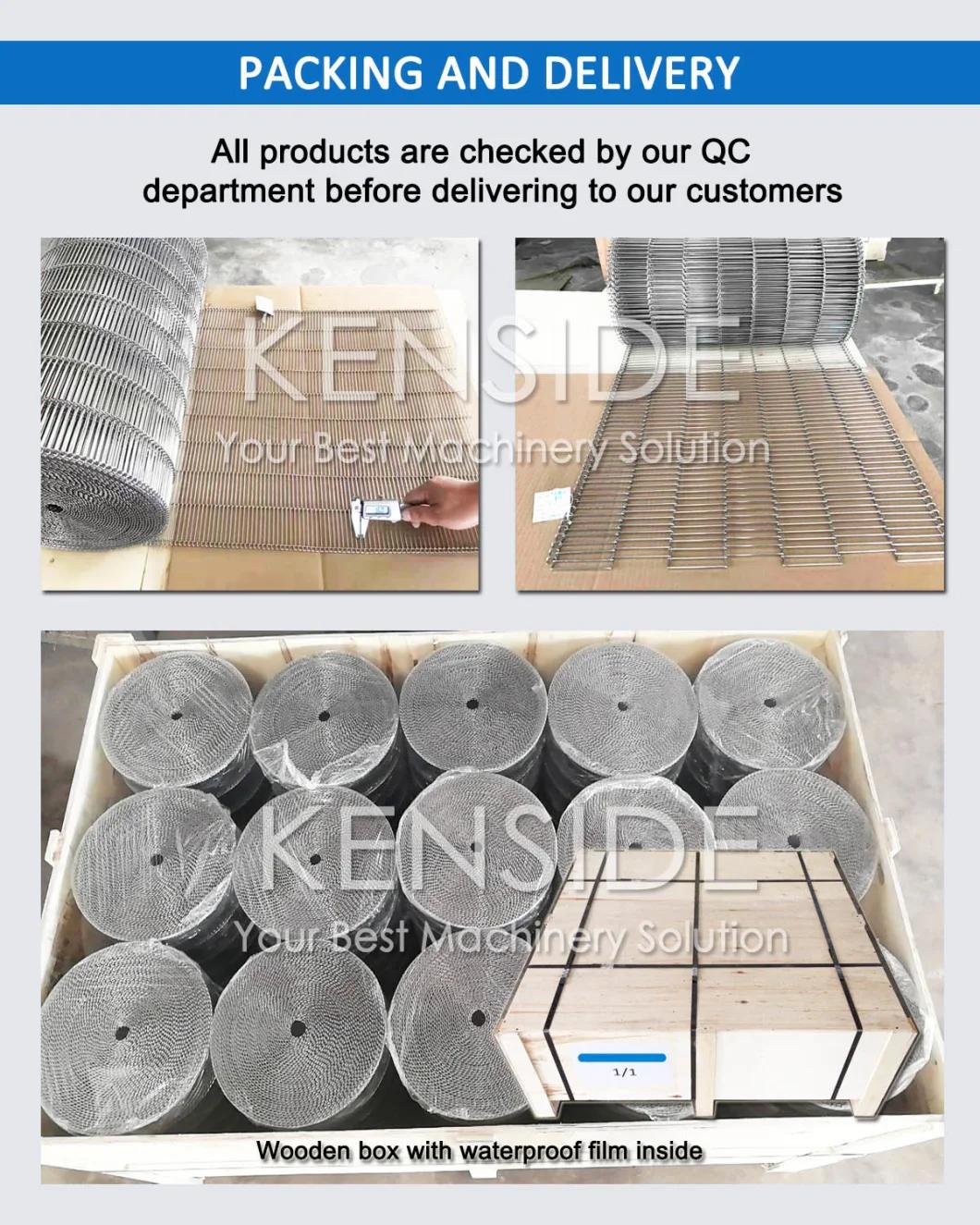

Packing and Delivery:

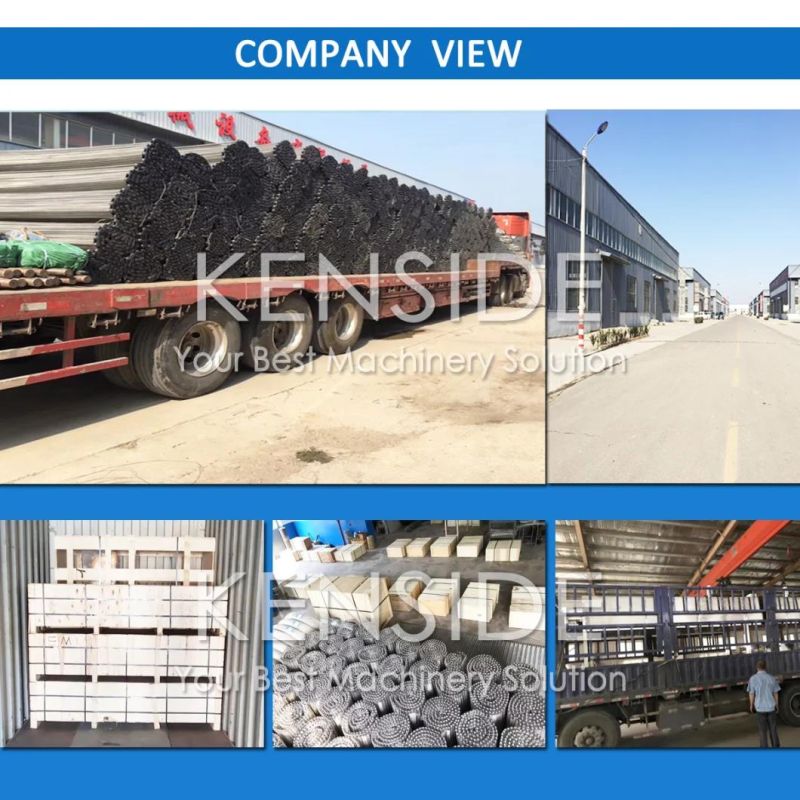

Company View:
