Wood Fabric Leather Acrylic Cutting Machine with CO2 Laser Flc1520
Hangzhou Mig Packaging Co., Ltd.- Application：Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
Base Info
- Model NO.：FLC1520
- Laser Technology：Laser Control Fault Cutting
- Control：CNC
- Current：AC
- Laser Type：CO2
- Engraving Machine Type：Laser Cutting Machine
- Working Area：1500*2000mm
- Laser Power：90W,100W,130W,150W
- Transport Package：Plywood
- Specification：ce
- Trademark：flying
- Origin：China
- Production Capacity：60PCS,Month
Description
Basic Info.
Model NO. FLC1520 Laser Technology Laser Control Fault Cutting Control CNC Current AC Laser Type CO2 Engraving Machine Type Laser Cutting Machine Working Area 1500*2000mm Laser Power 90W/100W/130W/150W Transport Package Plywood Specification ce Trademark flying Origin China Production Capacity 60PCS/MonthProduct Description

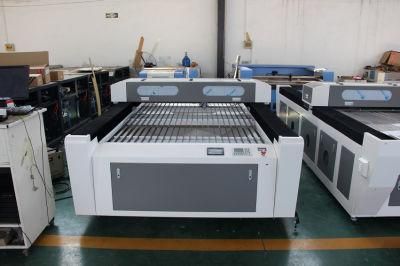

cnc FLC1520 laser cutting machine for wood fabric leatherFeatures In order to meet the demands of large area cutting in some fields, this laser cutting machine adopts the stable and well-knit working chassis (machine tool level), and imported linear guide,, which ensure the stability and precision during its fast movement. Also it has upper cover which can guarantee the operator's safety.Specifications:
| Model | FLC1520 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 90W/100W/130W/150W/180W |
| Working area | 1500 x2000mm |
| Max Engraving speed: | 0-50, 000mm/min |
| Max cutting speed | 0-30, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, BMP, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, water pump |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

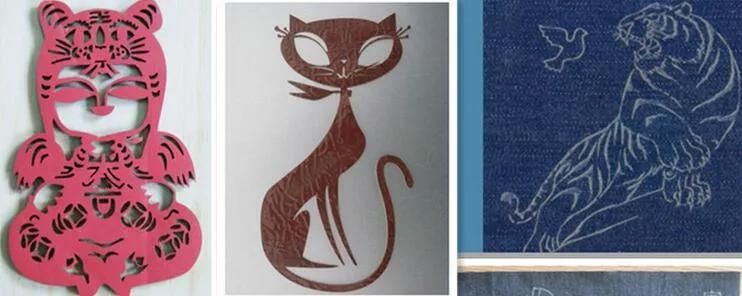

Samples Show:
