• Model NO.：flc9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：CO2
• Engraving Method：Vector Engraving
• Power：High Power
• Drive Type：Stepper Drive
• Control：CNC
• Certification：Ce
• Laser Type：CO2
• Current：AC
• Condition：New
• Working Area：900*600mm
• Transport Package：Wood
• Specification：CE
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：50PC,Month

Basic Info.

Model NO. flc9060 Cooling System Water Cooling Technical Class Continuous Wave Laser Automatic Grade Automatic Applicable Material Nonmetal Type Oscillating Mirror Laser Classification CO2 Engraving Method Vector Engraving Power High Power Drive Type Stepper Drive Control CNC Certification Ce Laser Type CO2 Current AC Condition New Working Area 900*600mm Transport Package Wood Specification CE Trademark flying Origin China HS Code 8456100090 Production Capacity 50PC/Month

Product Description

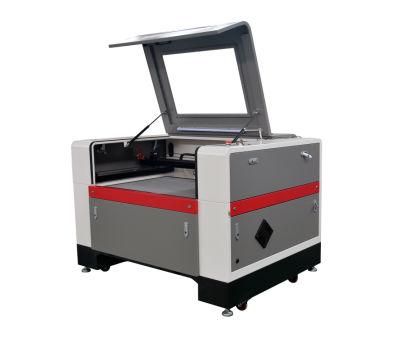

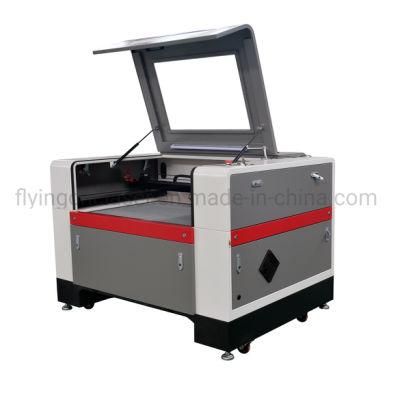

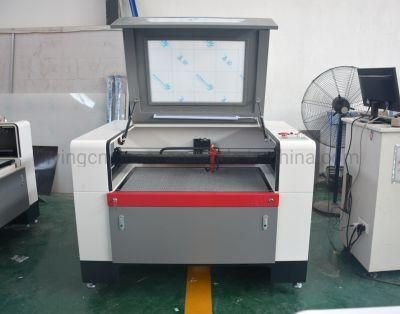

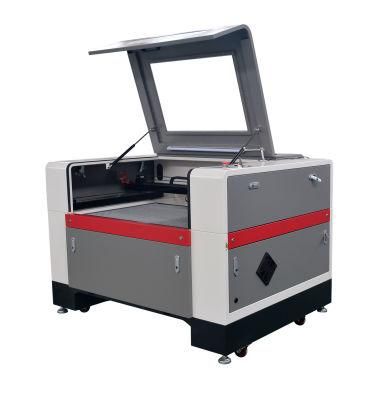

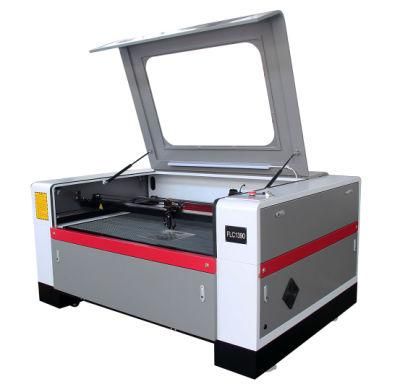

China leading manufacturer for co2 laser cutting and engraving machine
Features:
   This laser engraver machine takes CO2 laser tube as thermal source,  it  can engrave and cut, thus it is applicable for various industries. It is a greatly economical piece of equipment. The whole machine has stable performance and easy-operation system, coming with professional software. So it can realize high efficiency and good quality processing effect for various industries.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:
Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, steel, marble, granite, tiles and etc...Extra Features:1) Materials can extend through the front and rear doors to allow for a larger work product.2) Following LED Work light to help see products during laser processing.3) Red-Dot pointer to help you see the expected laser beam position.4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.5) Parts tray for removing small parts or scrap from under the workbed.6) Fully enclosed laser case yields a class I (user friendly) laser product.


Specifications:

Model	FLC9060
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	90W/100W/130W/150w/180w
Working area	900 x600mm (35.4 x 23.6 inches)
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power
