Drilling depth

230m

Maximum borehole caliber

300mm

Minimum borehole caliber

75mm

Diameter of Drill pipe

42/50/60mm

Drilling angle

90°~75°

Weight(Not include power)

1150kg

Unity machine dimension

2750*950*1770mm

2.Vertical Spindle

Spindle rotating speed

64/128/287/557r/min

Spindle stroke

450mm

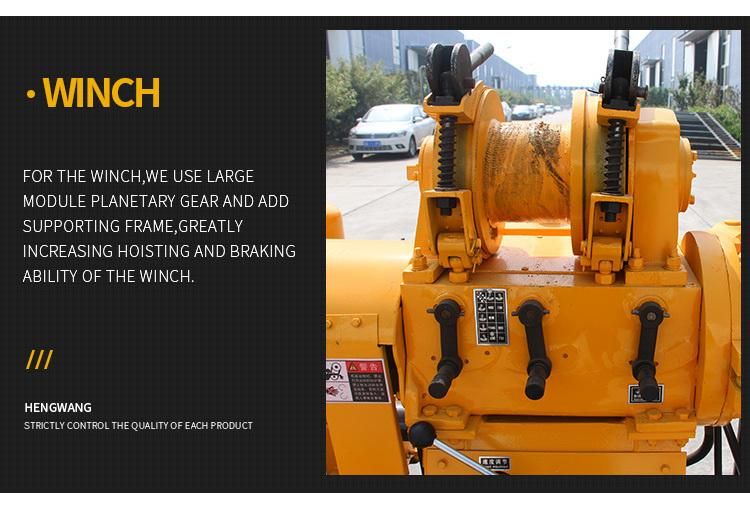

3.Hoist

Max. single line lifting capacity

2400kg

Reel lifting speed

1.64m/s

Steel wire rope diameter

13mm

Steel wire rope capacity

35m

Hug floodgate diameter

245mm

Hug floodgate belt width

70mm

Movable distance

400mm

4. Mud pump

Type

BW-160

Type

Horizontal Single Cylinder with double function

Max. Discharge

Diesel engine 170L/min

Electrical Motor 140L/min

Max. Pressure

3MPa

Work Pressure

1.5MPa

5. Power

Diesel engine

22HP

Electric Motor

15KW

6. Drilling tower

Type

Integrated on drilling rig

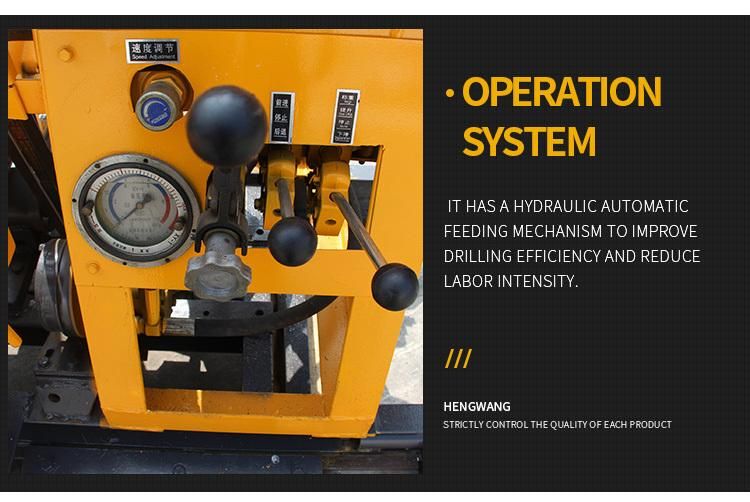

Control system

Hydraulic
