100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits

Ruian Loyal Machinery Co., Ltd.

Base Info

Description

Technical Parameters of Water Well Drilling Rig SC-D150TypeSC-D150Max. Drilling Diameter300mmMax. Drilling Depth100mTotal Power6.2kwEngine Power2.5kwLifting Power1.5kwCapacity of hoist1.5tPump 2.2kw, 220v (flow head 46m)Height of tower2.5mRotating speed200r/minMeasurement2100mm*800mm*600mmTotal Weight700kgsDrilling Rod Length1.5m/pieceDiameter of Drilling Rod42mm

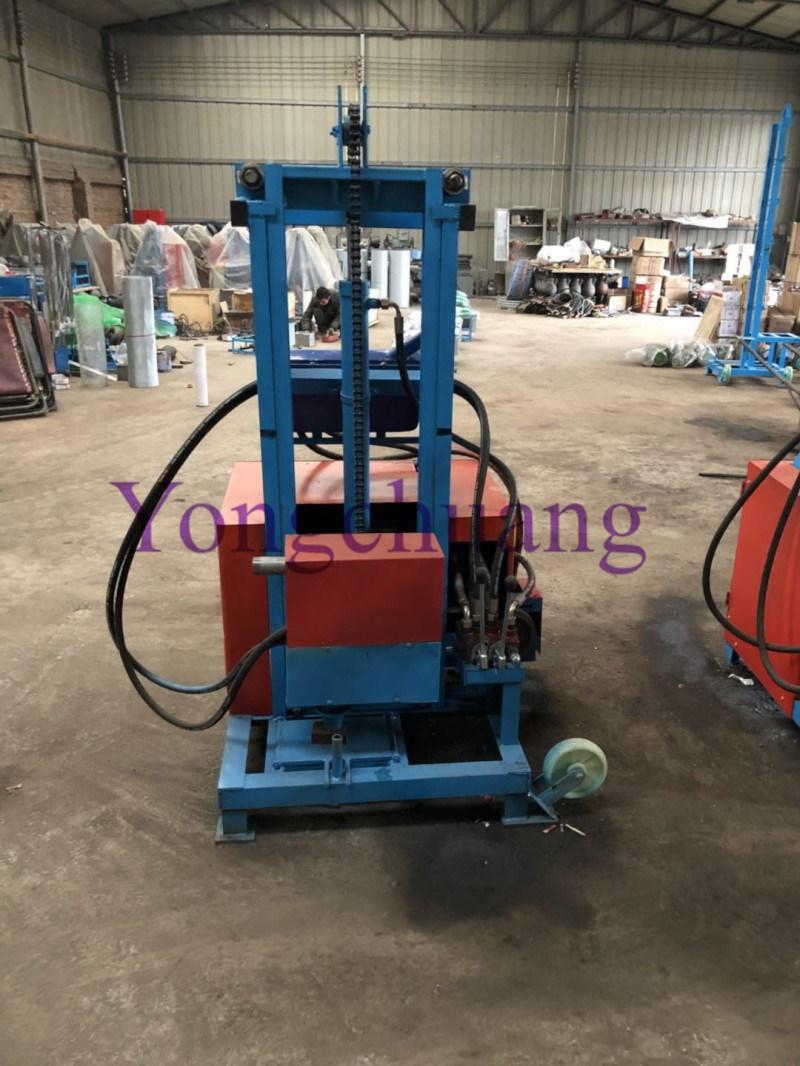

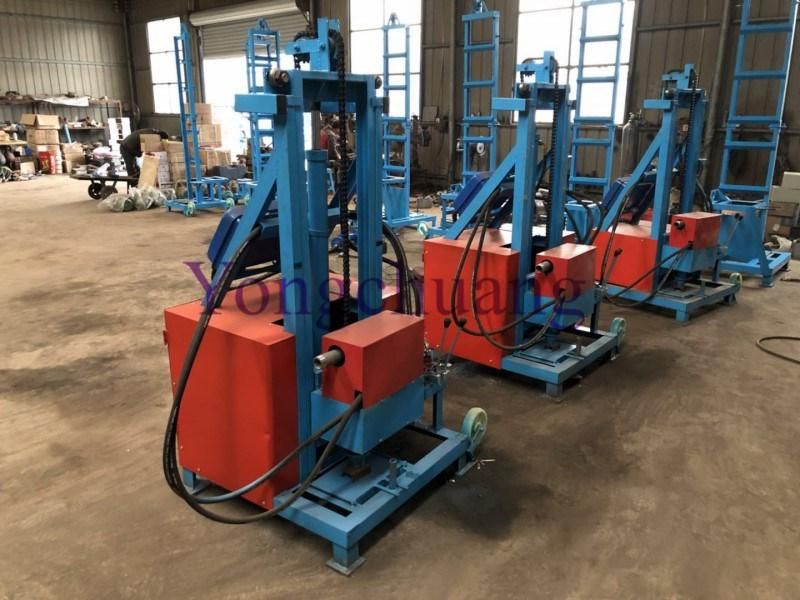

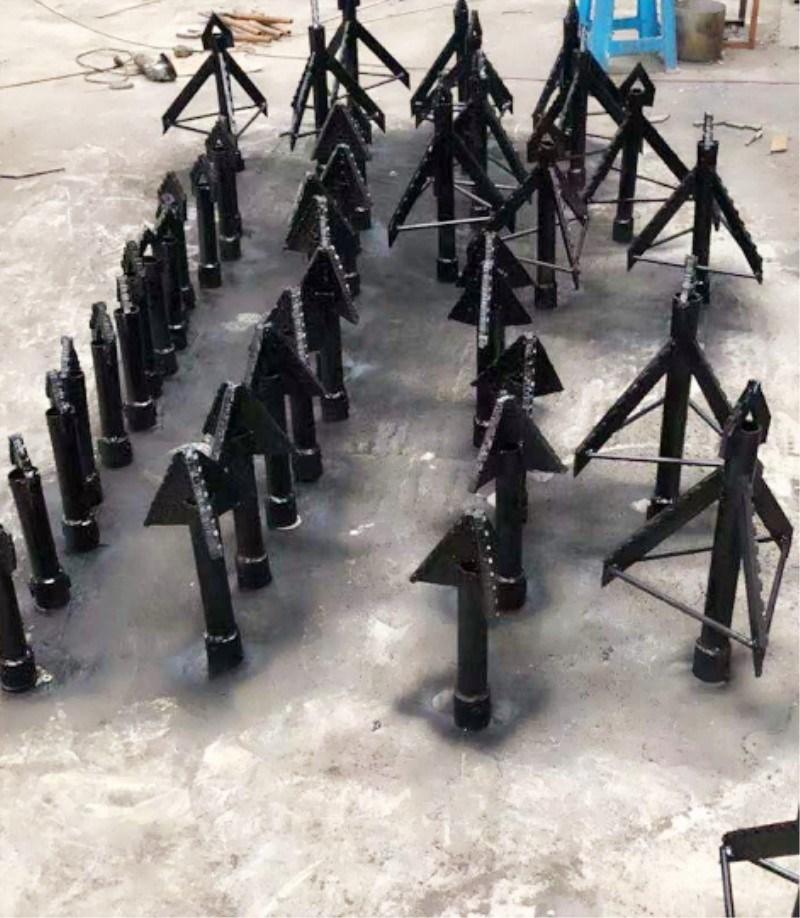

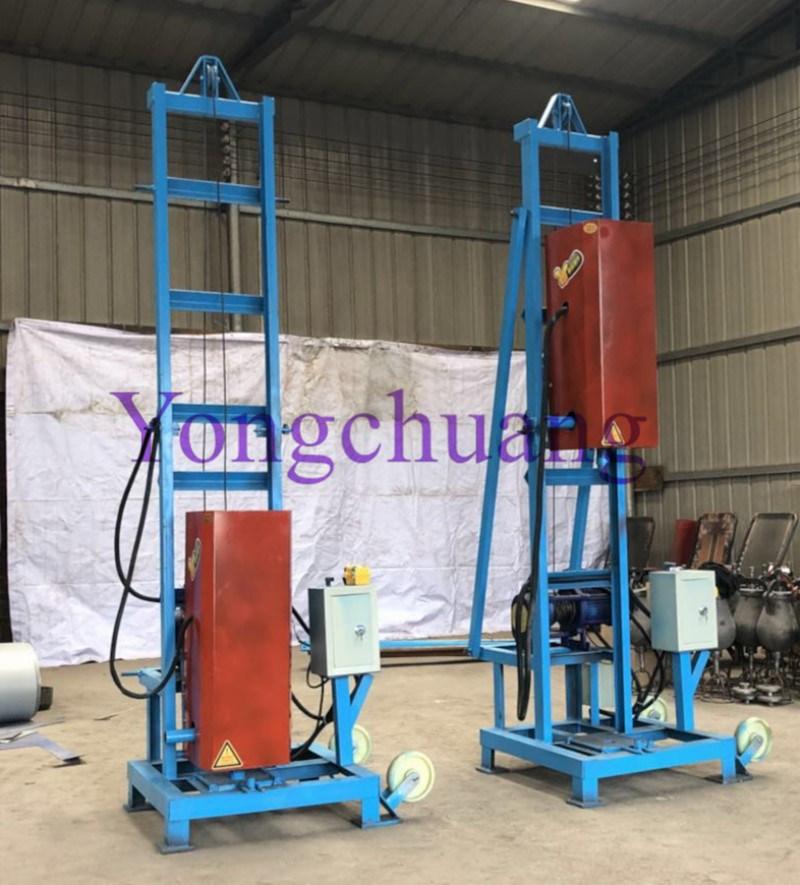

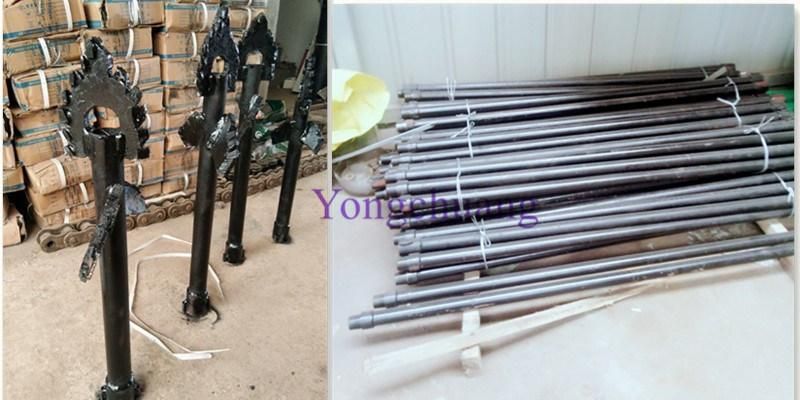

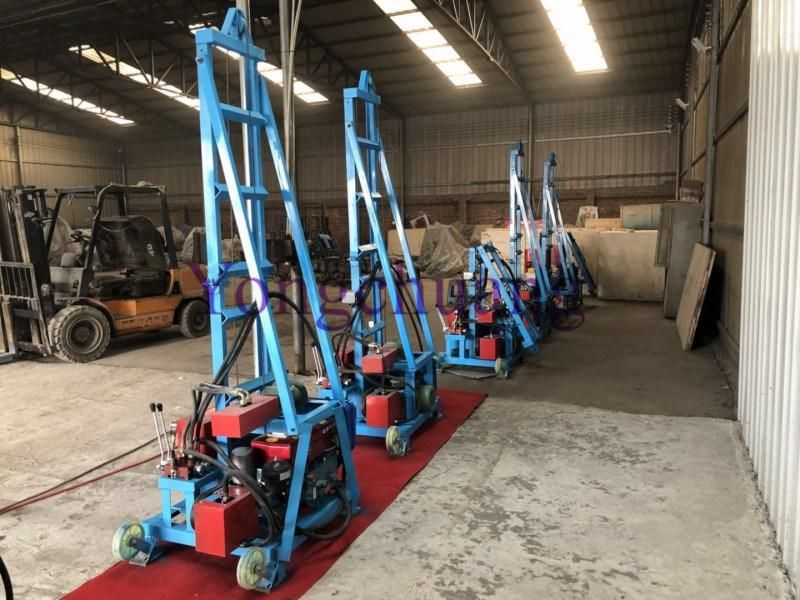

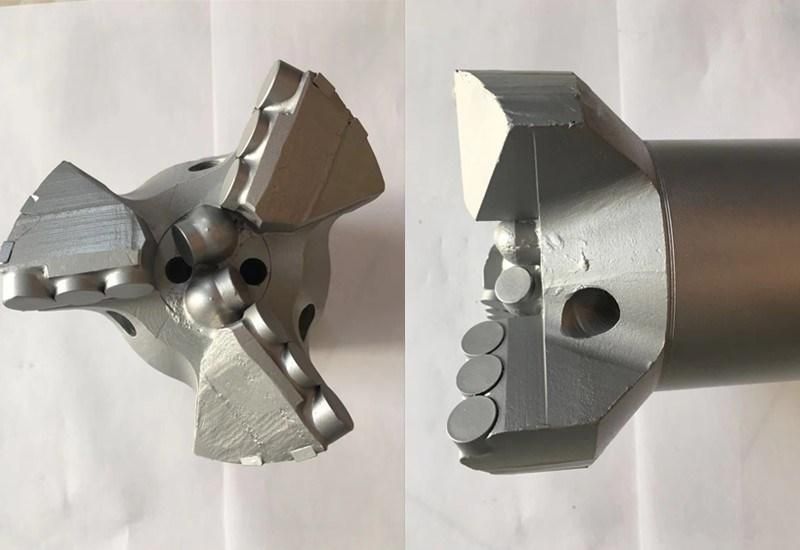

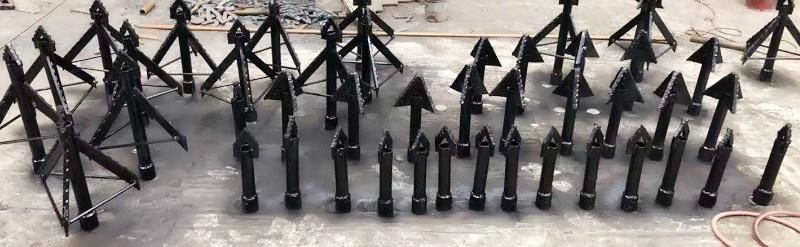

Pictures of Rotary Drilling Rig:


100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
100m ~150m of Rotary Drilling Rig with Drill Pipe and Drill Bits
