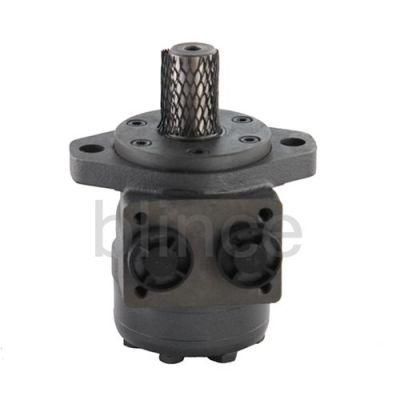

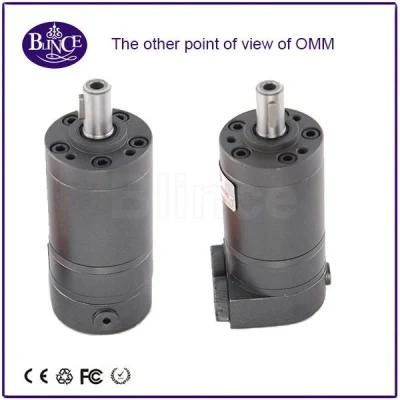

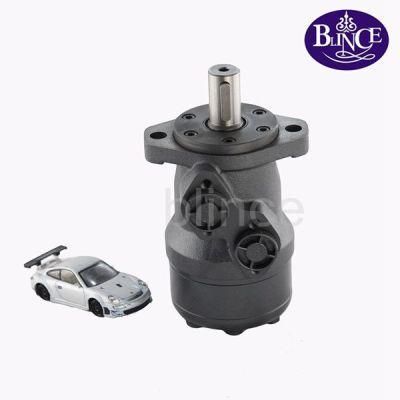

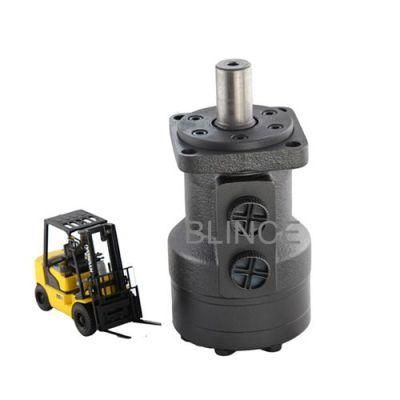

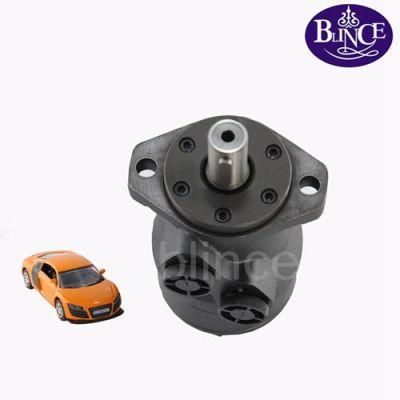

Bmm/Omm8/12.5/20/32/40/50 High Speed Hydraulic Motor for Mold CNC Machine Tools
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, RoHS, ISO9001
- Excitation Mode：Excited
- Power Rating：2500W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：omm 8cc,12.5cc,20cc,32cc,40cc,50cc orbit motor
- Type：Hydraulic Motor
- Hydraulic Power Units：Vane Pump
- Usage：Hydraulic Oil
- Hydraulic Actuator：Hydraulic Motor
- Hydraulic Motor：Vane Hydraulic Motor
- Motor Shafts：Straight, Splined and Tapered
- Warranty：One Year
- Application：Plastic Machine, Agriculture Machine
- Motor Flange Shape：Square and Rhombus Flange
- Motor Material：Cast Iron
- Processing：Forging & Cutting &Phosphating
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
Any help i can do for you, feel free to contact me.O(∩_∩)O~
Amy chen
Phone:+8613560881920
Whatsapplication:008613560881920
Tel: +86-769-85156586
Fax: +86-769-851580786
THANKS FOR YOUR READING, AND HOPE YOU HAVE A NICE DAY. ( n. N ) **
