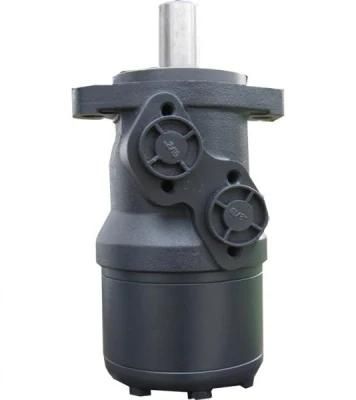

Blince Omm 32cc Orbit Motor, Bmm32cc Small Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, CE, ISO9001
- Excitation Mode：Excited
- Power Rating：3000W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：BMM 32cc mini hydraulic motor
- Type：Hydraulic Motor
- Warranty：One Year
- Usage：Hydraulic Oil
- Motor Shafts：Straight, Splined and Tapered
- Hydraulic Actuator：Hydraulic Motor
- Hydraulic Power Units：Vane Pump
- Processing：Forging & Cutting &Phosphating
- Motor Material：Cast Iron
- Application：Plastic Machine, Agriculture Machine
- Hydraulic Motor：Vane Hydraulic Motor
- Motor Flange Shape：Square and Rhombus Flange
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
