Basic Info.

Model NO. HDPE Plastic Film Blowing Machine Computerized Computerized Machine Weight 1.5t Certification CE, ISO9001:2008 Colour Blue and White Certifiaction CE, ISO9001, CQC, SGS Transport Package N/a Specification CQC, ISO9001, SGS, CE Trademark YUNBANG Origin China HS Code 84773000 Production Capacity 12 Sets/Year

Product Description

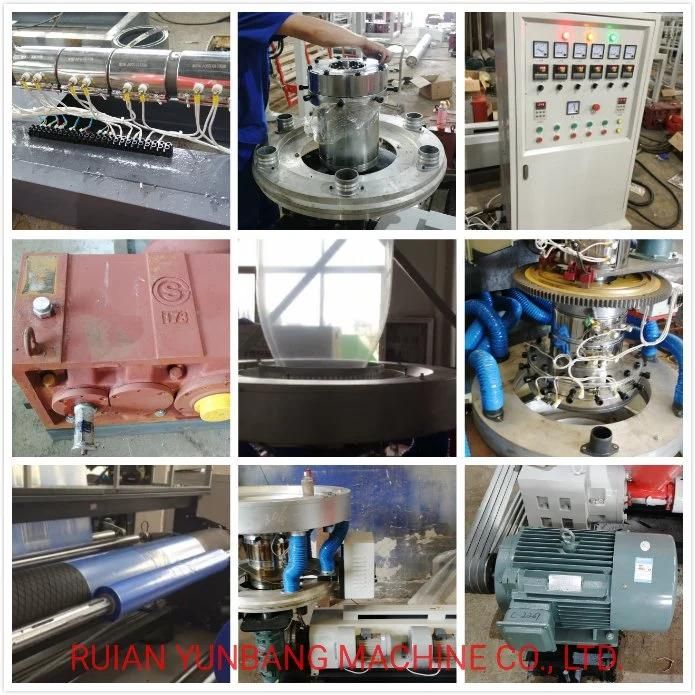

This machine unit can film blowing and printing at the same time.

Option Unit as below:
1. auto feeding
2.Air compressor
3.Special size die head
4. rotary die head
5. double widing

Technical parameters:

Model	SJ50-YT2600	SJ50-YT2800	SJ65-YT2100
screw Diameter (mm)	50	50	65
Screw L/D Ratio	28:1	28:1	28:1
Blowing film driving motor (kw)	11	15	18.5
Max. extrsion out put (kg/h)	35	50	75
Die size (mm)	Φ60,Φ100	Φ80,Φ150	Φ100,Φ200
Width of Blowing Film (mm)	600	800	1000
Thickness of Blowing Film (mm)	0.005-0.10	0.005-0.10	0.005-0.10
Printing Length (mm)	191-1200	191-1200	191-1200
Max. Printing Width (mm)	600	800	1000
Total Power (kw)	28	32	40
Weight (T)	3.5	4	5
Overall Dimensions (L*W*H)mm	6000χ2400χ4000	6200χ2600χ4300	6400χ2800χ4800
