Basic Info.

Model NO. SJ-45DX2X500 Certification CE, ISO9001:2008 Die Head Fixed Die Head Winder Single Transport Package Wooden Case /Stretch Film Package Specification CE/ISO9001 Trademark Zhuxin Brand Origin China HS Code 84773090 Production Capacity 1000sets/Year

Product Description

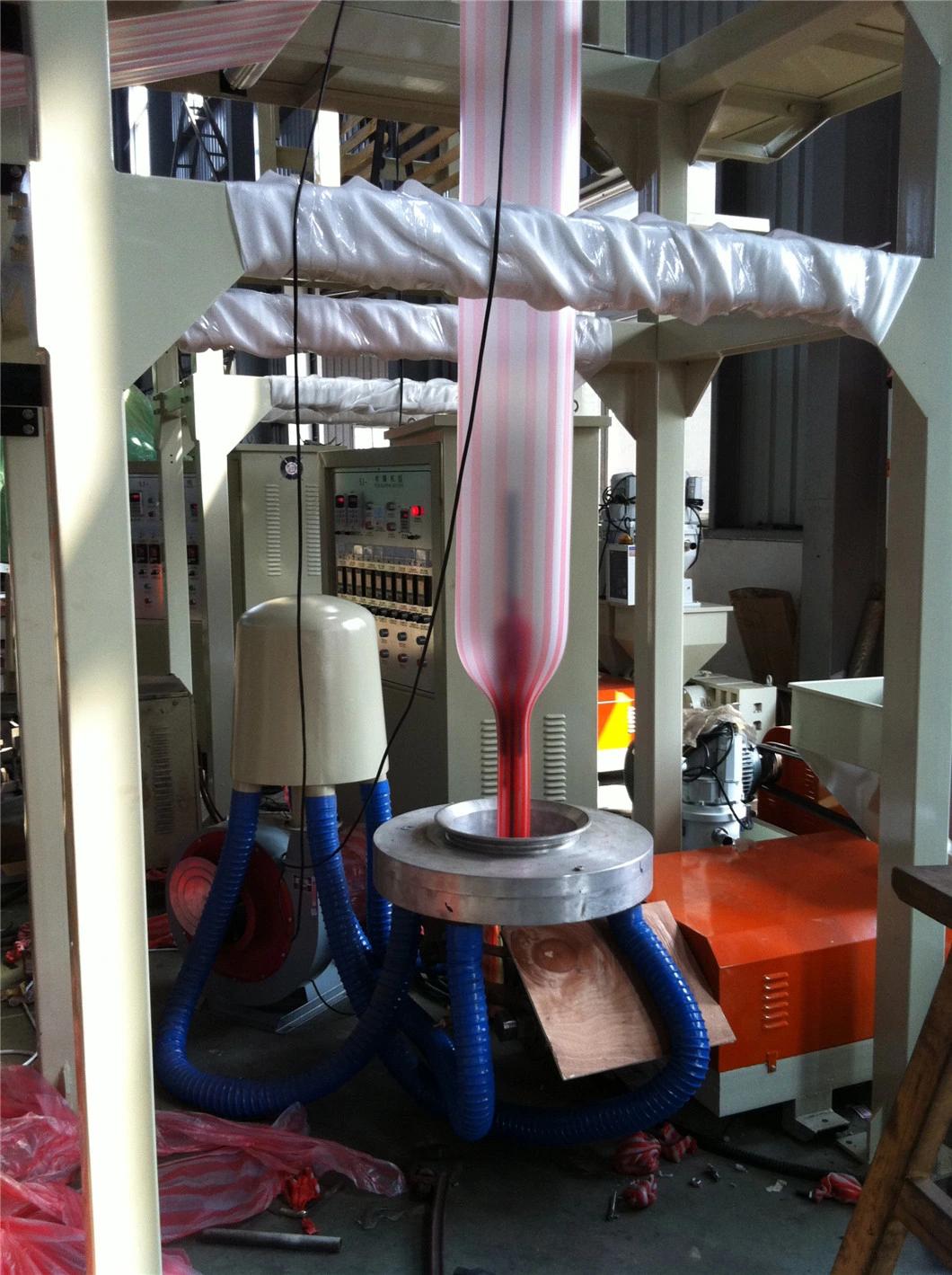

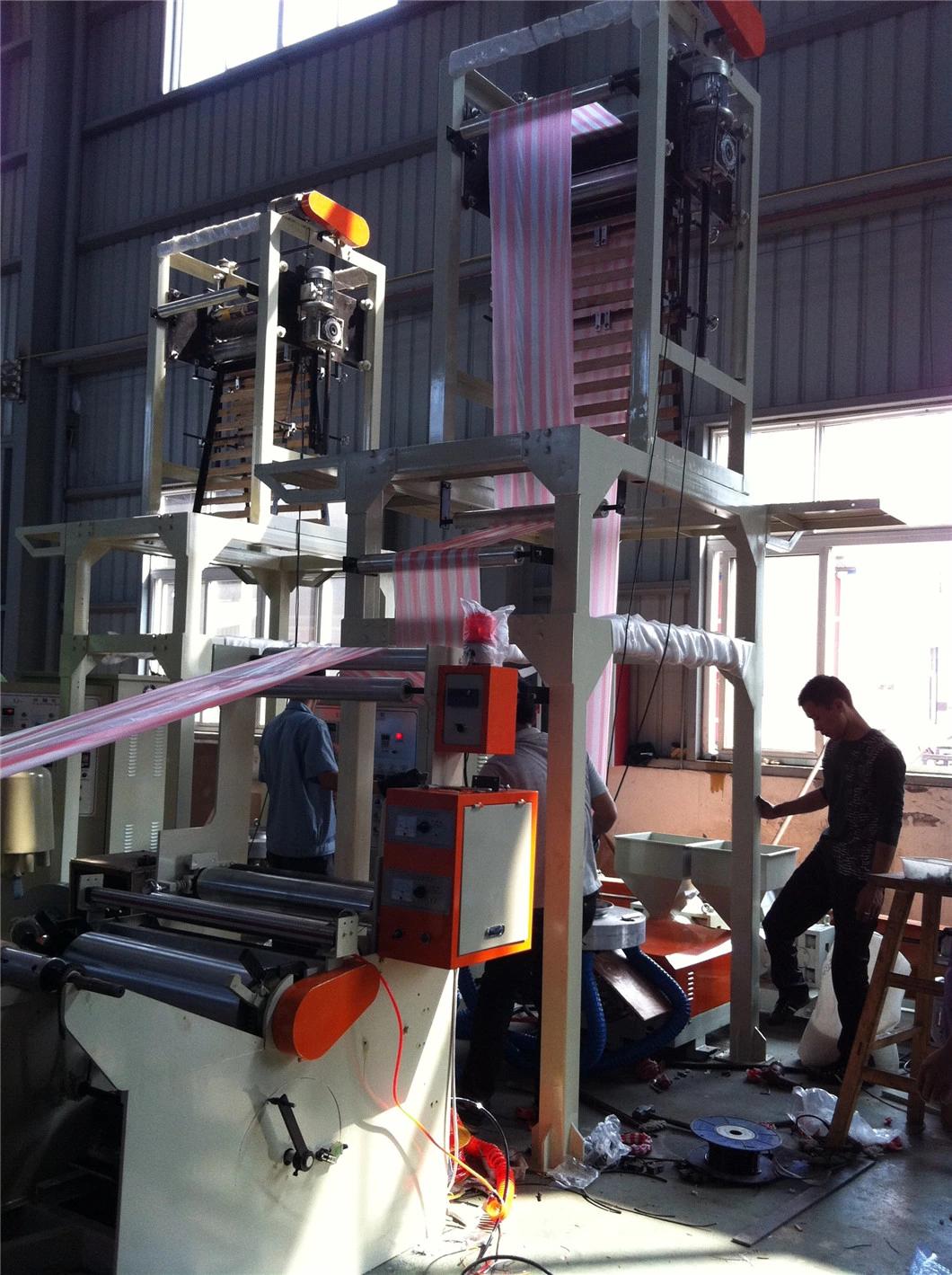

SJ-45DX2X500 double colour film blowing machine is used for blowing the various low density polyethylene(LDPE)and high density polythlene(HDPE)colour striped plastic film, etc, which are widely used for packing food, fruit, garments, textile, dailly necessities and other civil and industrial products.

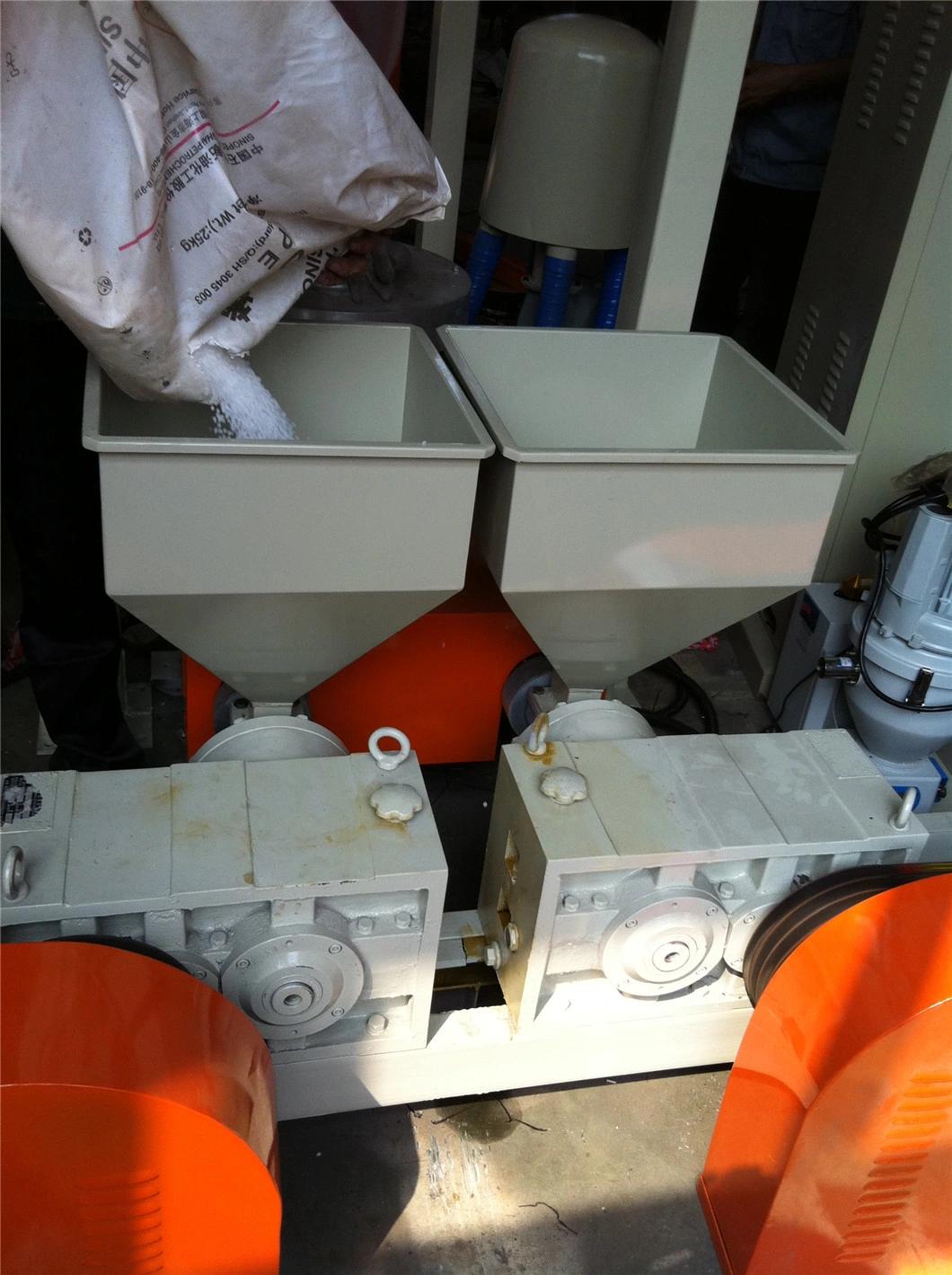

The cylinders and the screw stems of model SJ-45Dx2 extruder are made of high -quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

SJ-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Model: SJ-45Dx2x500/600
Screw of diameter: 45x2
Screw Ratio: 28: 1
Screw speed: 10-100r/min
Main output: 30kg/h
Max folding width of film: 580mm
Single-sided thickness of film: 0.006-0.06mm
Power of main motor: 11kw
Outline diameter: 3800x2000x2800mm
Weight: 2200kgs


MODEL	SJ-45Dx2x500	SJ-45Dx2x600
Diameter of screw	45mmx2	45mmx2
Screw Ratio	L/D28:1	L/D28:1
Reduced diameter of film(mm)	10-100r/min	10-100r/min
Motor power	15KW	11KW
Max.output(kg/h)	30kg/h	30kg/h
Max folding Width of film	480mm	580mm
Single-sided Thickness of film	0.006-0.06mm	0.006-0.06mm
Weight(T)	2200kg	2300kg
Outline diameter(L*W*H)  (mm)	3800*2000*2800	3800*2000*2800
