Fangtai Single/Double Layer Co-Extrusion Stretch Film Making Machine
Zhengzhou Research Institute for Abrasives & GrindingBase Info
Description
Basic Info.
Model NO. FT-1000 HS Code 8477800000 Production Capacity 20set/MontProduct Description

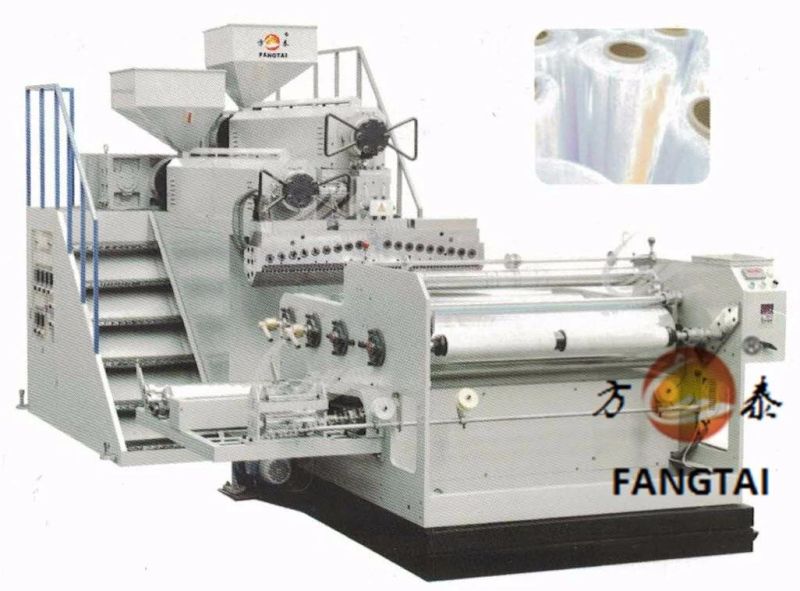

Fangtai Single/Double layer Co-extrusion Stretch Film Making Machine
Use
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky wrapping film.The film has good tensile strength,anti-pricking ability and impact strength.Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging beautiful,economical and practical.The film can be widely used in wrapping or palletized goods.It is a good substitute for hot shrinking packaging film during transportation.
Main Technical Variables
| Model | FT-1000(Double-layer) | FT-1000(Single-layer) |
| Diameter of Screw | Φ65*2 | Φ70 |
| L/D Ratio of Screw | 28:1 | 28:1 |
| Linear Speed of Machinery(m/min) | 50-100 | 50-100 |
| Width of Die Head(mm) | 1250 | 1250 |
| Width of Finished Products(mm) | 1000(500*2) | 1000(500*2) |
| Thickness of Finished Products(mm) | 0.015-0.05 | 0.015-0.05 |
| Structure of Film Layers | A/B | --- |
| Max.Output(kg/h) | 80 | 80 |
| Main Motor Power(kw) | 22*2 | 30 |
| Total Power(kw) | 140 | 120 |
| Overall Dimensions(L*W*H)(m) | 7.5*4.5*3.2 | 7.5*4*3.2 |
| Weight(kg) | 5.5T | 4.5T |
