Basic Info.

Model NO. FT-1000 HS Code 8477800000 Production Capacity 20set/Month

Product Description

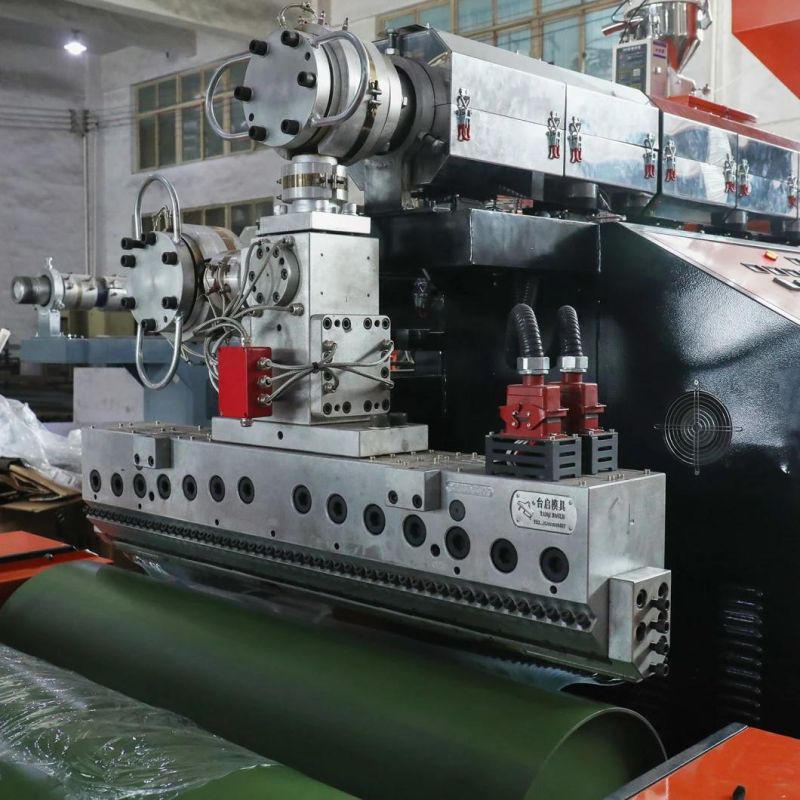

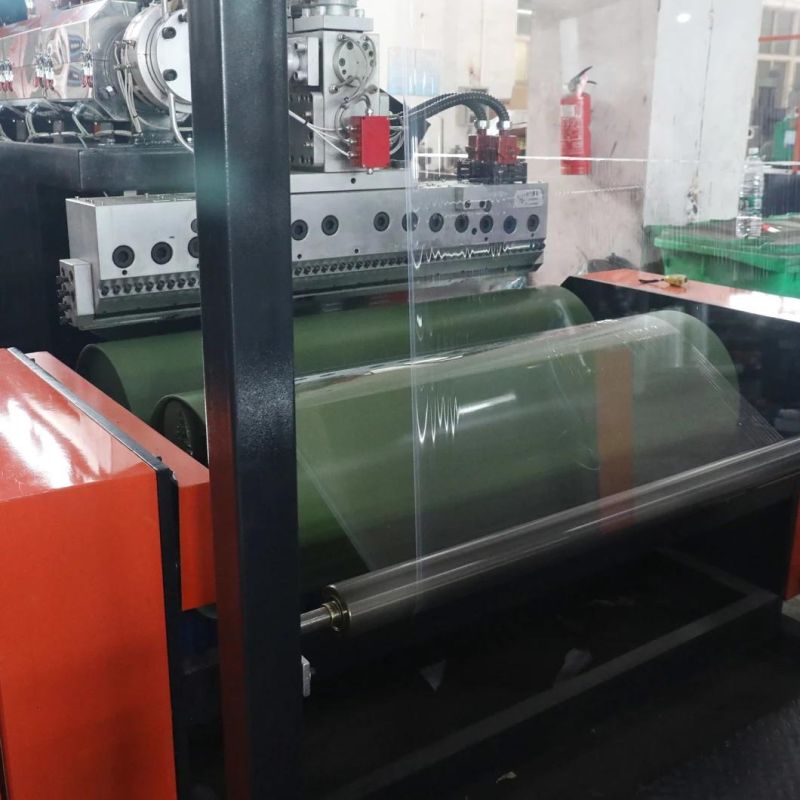

FT-1000 Single/Double-layer Co-extrusion Stretch Film Making Machine

Use
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film.The film has good tensile strength,anti-pricking ability and impact strength.Its good shriking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging beautiful,economical and practical.The film can be widely used in wrapping or palletized goods.It is a good substitute for hot shrinking packaging film during transportation.

OPTIONAL EQUIPMENT
1)auto loader
2)auto dry hopper
3)motorize net changer
4)hydraulic net changer
5)air shaft
6)glue pump


Model	FT-1000(Double-layer)	FT-1000(Single-layer)
Diameter of screw	φ65mm*2	φ70
L/D ration of Screw	28:1	28:1
Width of die head(mm)	1250	1250
Width of finished products(mm)	1000(500*2)	1000(500*2)
Thickness of finished products(mm)	0.015-0.05	0.015-0.05
Structure of film layers	A/B	---
Max. output(kg/h)	80	80
Linear speed of machinery(m/min)	50-100	50-100
Main motor power(kw)	22*2	30
Total power(kw)	140	120
Overall dimensions(L*W*H)(m)	7.5*4.5*3.2	7.5*4*3.2
Weight(T)(About)	5.5T	4.5T
