• Model NO.：KQ100-500L
• Name：Electrical Tilting Jacketed Kettle Jacket Kettle
• Material：Stainless Steel 304,304L 316,316L
• Heating：Electric ,Steam ,Gas
• Capacity：100L 200L 300L ,500L 600L 1000L
• Mixer：Scrapper Mixer, Normal Mixer
• Tilting：Yes
• Heating Temperature：150c
• Kettle Type：Vertical ,Tilting
• Warranty：One Year
• Packing：Plywood Box
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ100-500L Name Electrical Tilting Jacketed Kettle Jacket Kettle Material Stainless Steel 304/304L 316/316L Heating Electric /Steam /Gas Capacity 100L 200L 300L ,500L 600L 1000L Mixer Scrapper Mixer, Normal Mixer Tilting Yes Heating Temperature 150c Kettle Type Vertical /Tilting Warranty One Year Packing Plywood Box Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

Sanitary stainless steel jacketed kettle(steam/electrical heating)

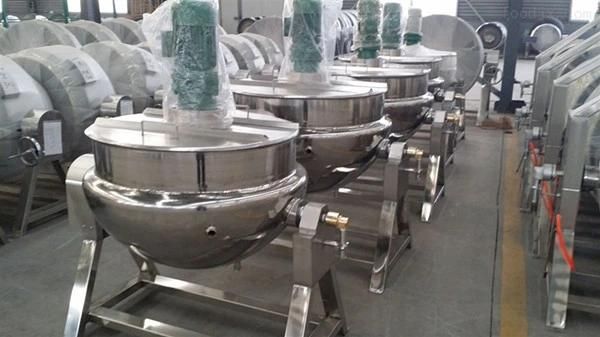

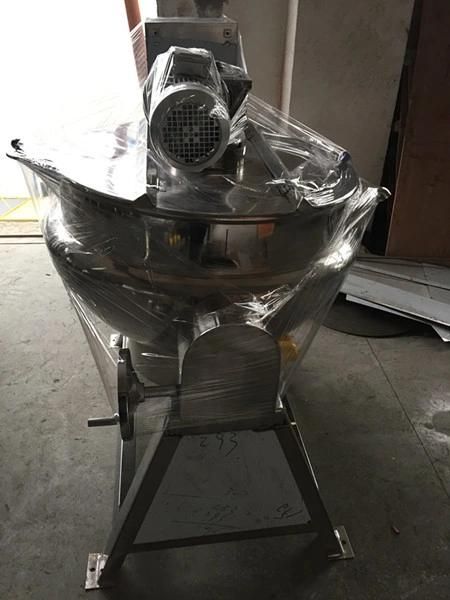

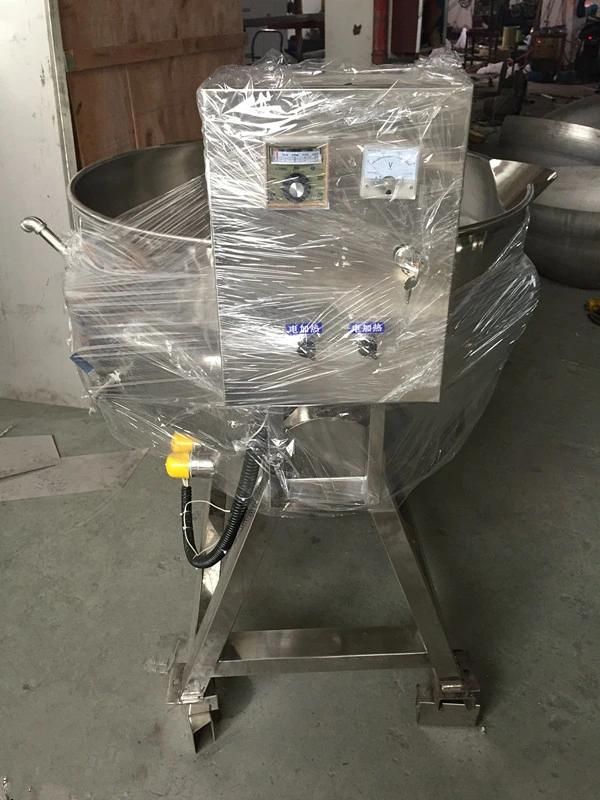

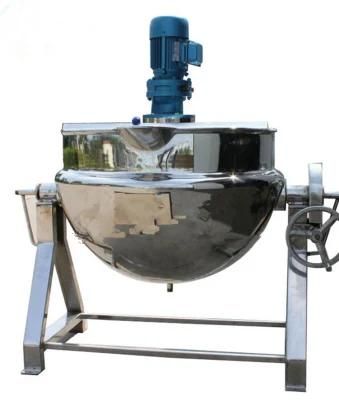

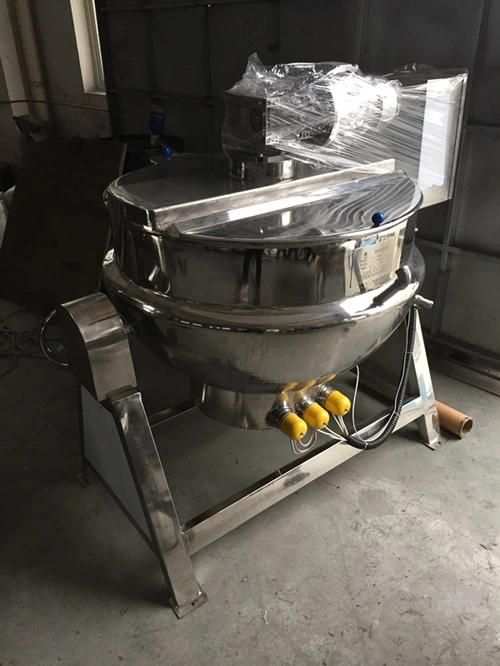

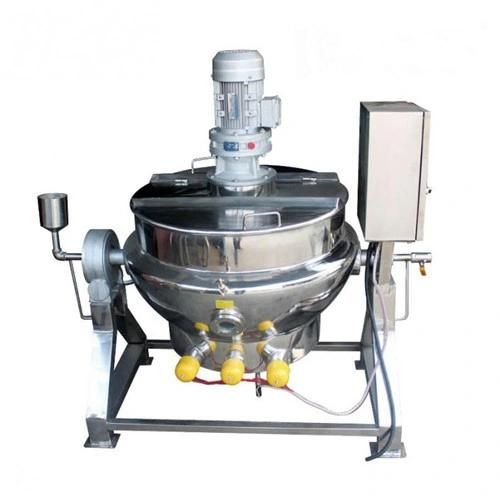

Electrical Tilting Jacketed Kettle Jacket Kettle
Material: SS304/316

600 L Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc

Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L
Application

Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.

TankCapacity(L)	200	300	400	500
REV	36r/min, 0.55KW, 380V, 50HZ,  3PHAZE	36r/min, 0.55KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE
Heating Area(M2)	1.0	1.4	2.0	2.0
Vertical Product Dimension(CM)	100*90*155	110*100*160	120*130*165	120*130*165
Material	SS304	SS304	SS304	SS304
WEIGHT GW/NW(KGS)	100	120	180	180
Package	Wooden box	Wooden box	Wooden box	Wooden box

Electrical Tilting Jacketed Kettle Jacket Kettle
