• Model NO.：JK100-500L
• Name and Description：Stainless Steel Jacketed Kettle Jacket Pot Steam
• Application：for Meat, Sugar, Soup,
• Double Jacketed Kettle：Heating and Mixing
• Jacket Kettle Capacity：300L ,500L, 600L, 1000L
• Mixer：Scrapper Mixer, Normal Mixer
• Kettle Material：Ss 304,316
• Kettle Type：Vertical ,Tilting
• Jacket Kettle：Heating by Electricity, Steam
• 1000ljacket Kettle：Double Wall Kettle
• Indurstry Kettle：Rice, Soup, Meat, Pharmacy, Jam Cooking
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. JK100-500L Name and Description Stainless Steel Jacketed Kettle Jacket Pot Steam Application for Meat/ Sugar, Soup, Double Jacketed Kettle Heating and Mixing Jacket Kettle Capacity 300L ,500L, 600L, 1000L Mixer Scrapper Mixer, Normal Mixer Kettle Material Ss 304/316 Kettle Type Vertical /Tilting Jacket Kettle Heating by Electricity, Steam 1000ljacket Kettle Double Wall Kettle Indurstry Kettle Rice, Soup, Meat, Pharmacy, Jam Cooking Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

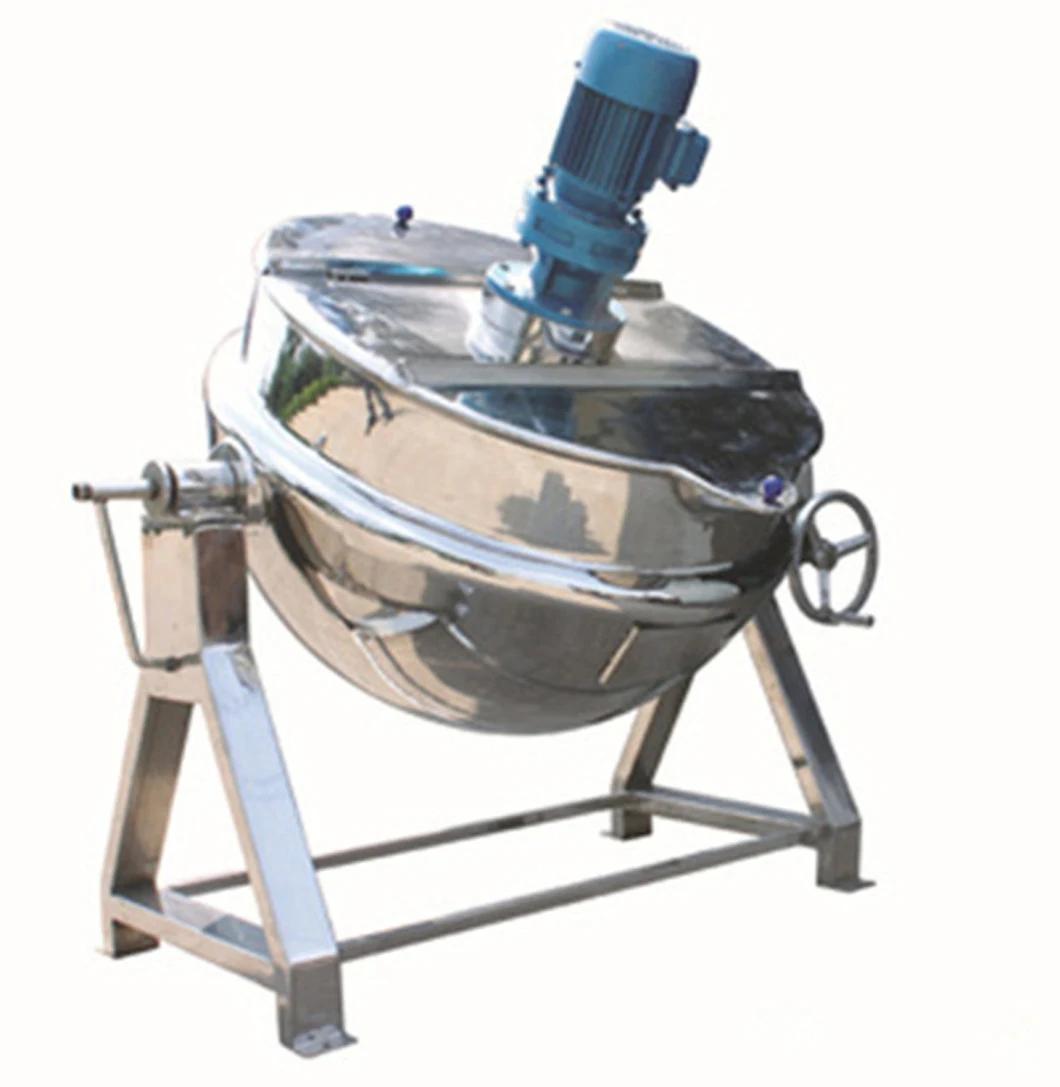

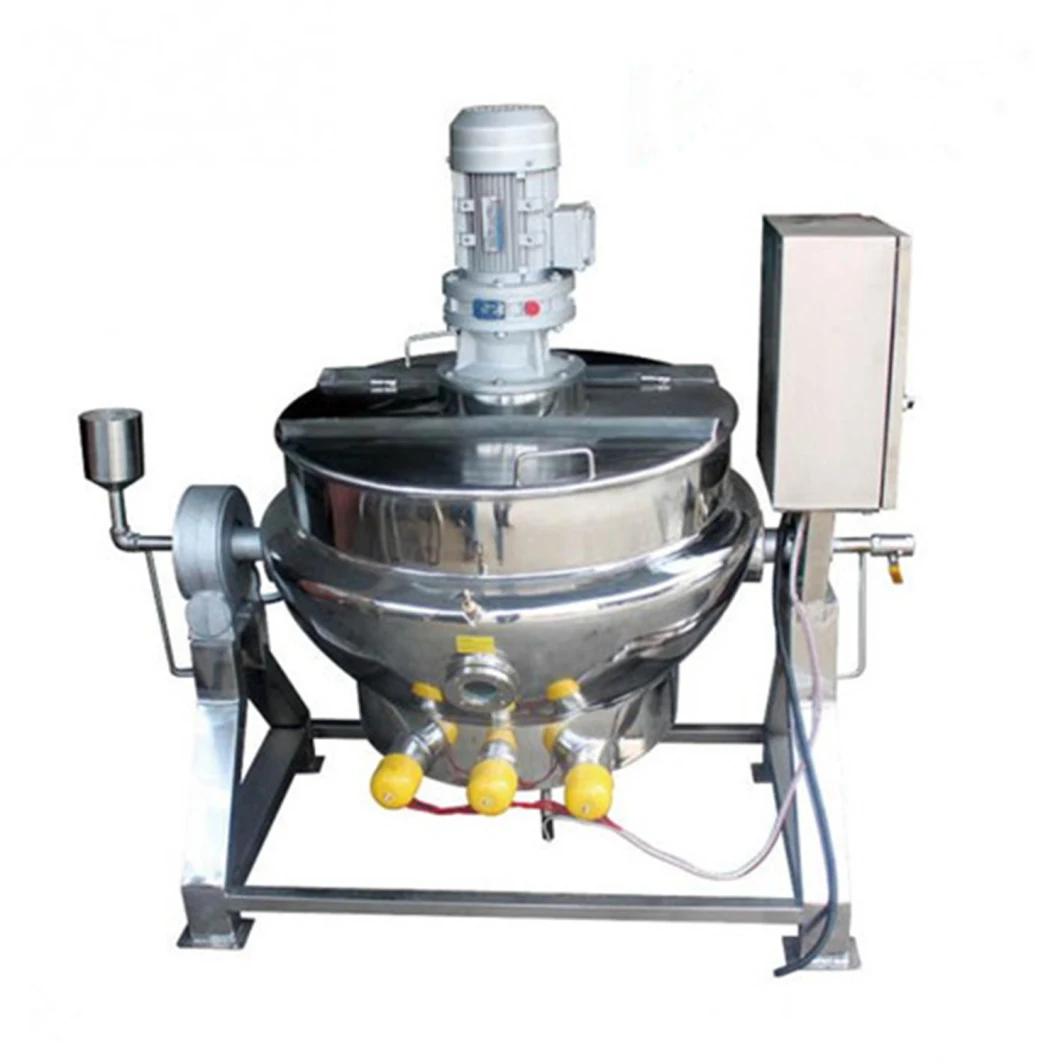

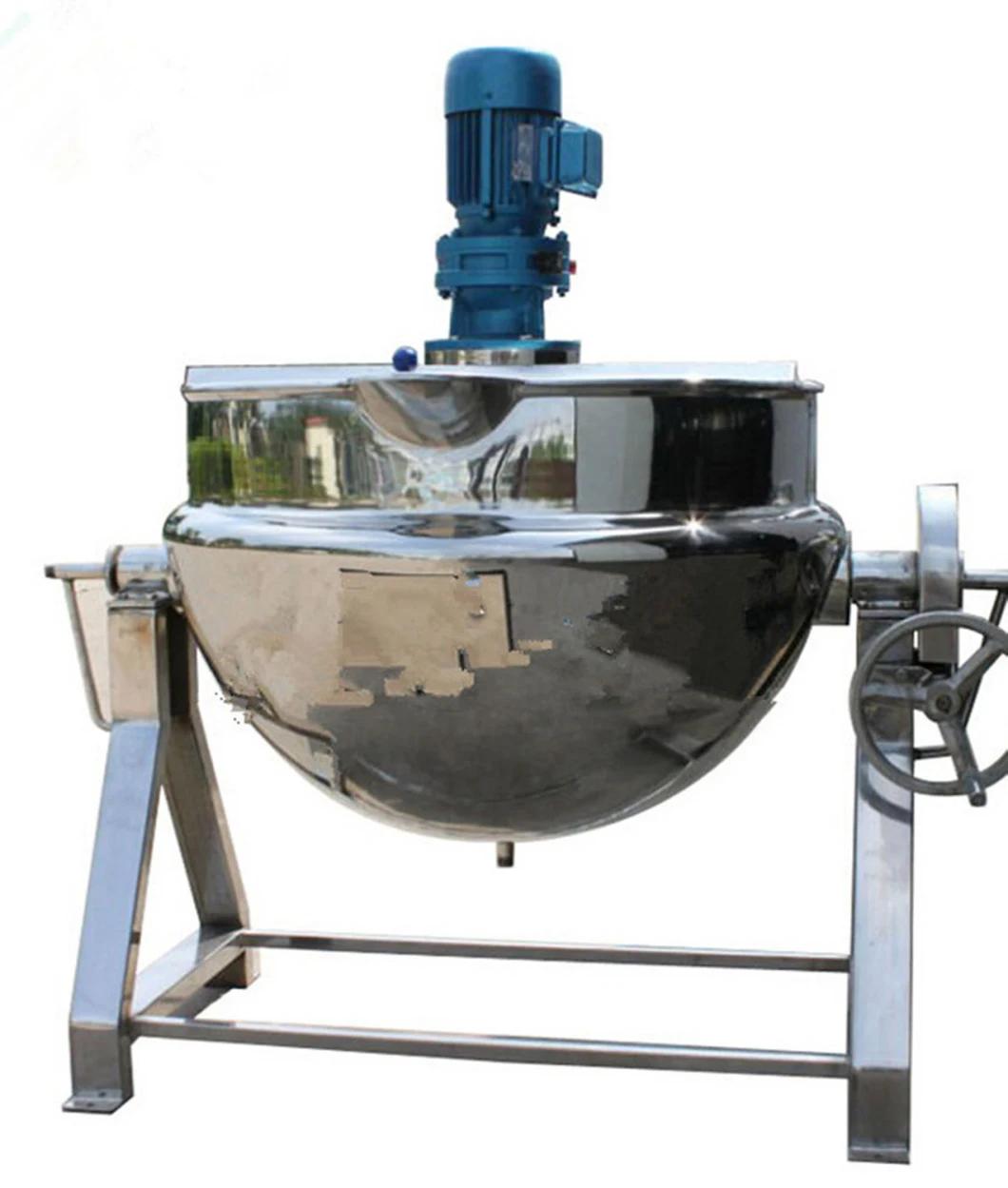

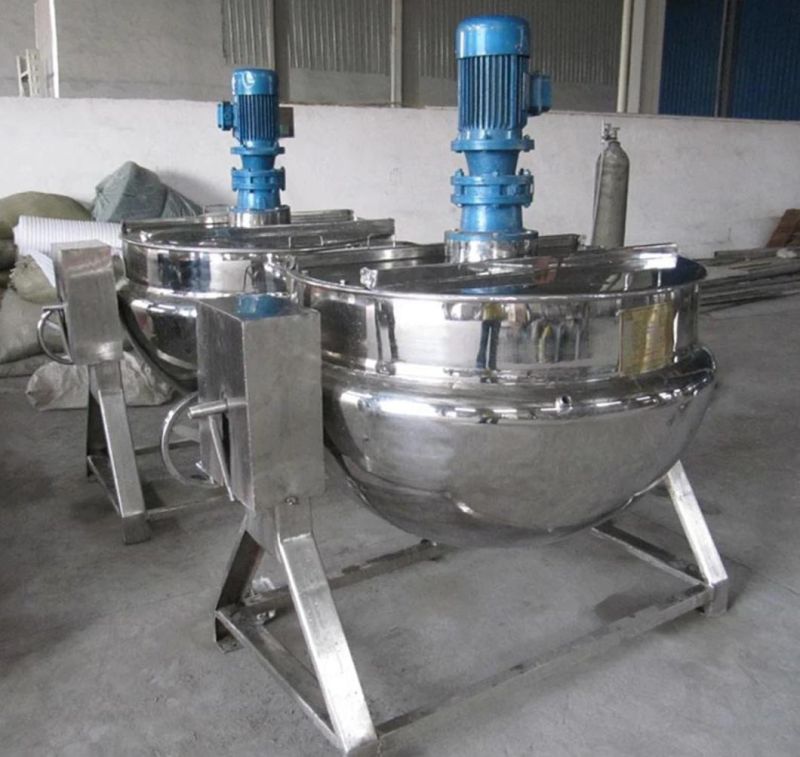

Stainless Steel Jacketed Kettle Jacket Pot Steam Cooker Food Machine :




Material: SS304/316
Stainless Steel Jacketed Kettle(Jacket Pot, Steam Cooker, Food Machine
600 L Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc

Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L
Application

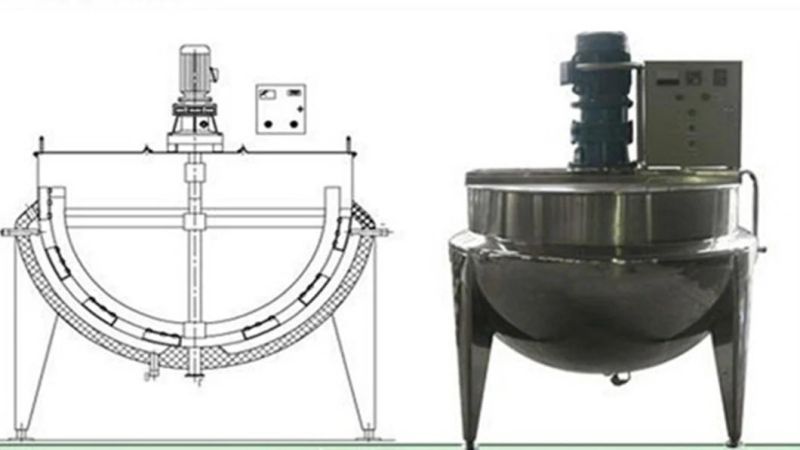

Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.

TankCapacity(L)	200	300	400	500
REV	36r/min, 0.55KW, 380V, 50HZ,  3PHAZE	36r/min, 0.55KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE
Heating Area(M2)	1.0	1.4	2.0	2.0
Vertical Product Dimension(CM)	100*90*155	110*100*160	120*130*165	120*130*165
Material	SS304	SS304	SS304	SS304
WEIGHT GW/NW(KGS)	100	120	180	180
Package	Wooden box	Wooden box	Wooden box	Wooden box

Stainless Steel Jacketed Kettle Jacket Pot Steam Cooker Food Machine
