• Type：YAG Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Standard Export Wooden Box
• Specification：20w 30w 50w 100w
• Trademark：mactron
• Origin：Guangdong Dongguan
• Production Capacity：200set,Month

Model

MT-F

Work Area (mm)

110x110 Or 175x175 or 200x200 or 300x300mm

Laser Power

20 / 30 /50 /100w

Laser Repetition Frequency

25KHz - 400KHz

Wavelength

1065±10nm

Beam Quality M2

<2

Min Line Width

0.05mm

Min Character

0.2mm

Marking Speed

≤5000mm/s

Marking Depth

≤0.4mm

Repeat Precision

±0.002mm

Power Supply

220V(±10%)/50Hz/4A

Gross Power

<500W

Laser Module Life

100000h

Cooling Style

Air Cooling

System Composition

Control System, Industrial Computer, Working Table

Working Environment

Clean and Dust Free

Operating Temperature

10ºC-35ºC

Humidity

5% to 75% (Free of Condensed Water)

Power

AC220V, 50HZ, 10Amp Stable Voltage

Warranty

12 Months

Dimension (cm)

131x53x68

Weight (kg)

110

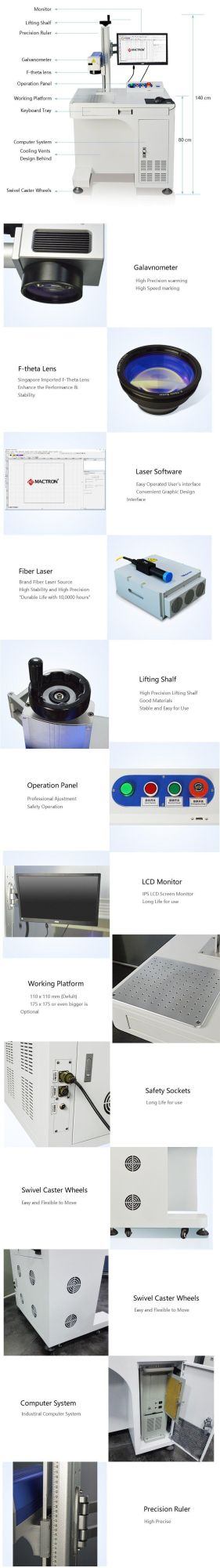

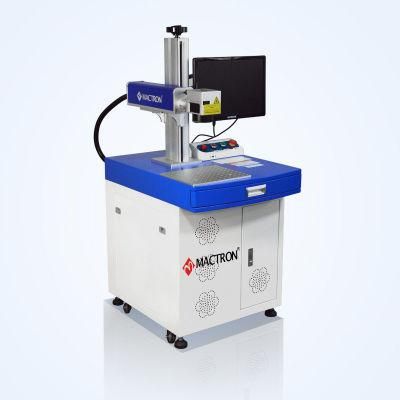

3. Machine's Images



Feature:

1. One-unit structure with manually focusing system and user-friendly operation.
2. Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
3. Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00; focus diameter is less than 20um; expanding angle is only 1/4 of the YAG-DP. Therefore it is esp. good at delicate marking.
4. High electricity-laser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG's consumption.
5. Free from maintenance, long working life, small size, suitable for any working environment.
6. Fast marking speed, 2-3 times faster than the traditional marking machine .
7. The Fiber Laser Marking software supports files such as CorelDraw, AutoCAD, Photoshop and PLT,PCX,DXF,
BMP; SHX OR TTF can be directly adopted; the functions such as auto coding for sequence No., group mark, date, barcode and so on.

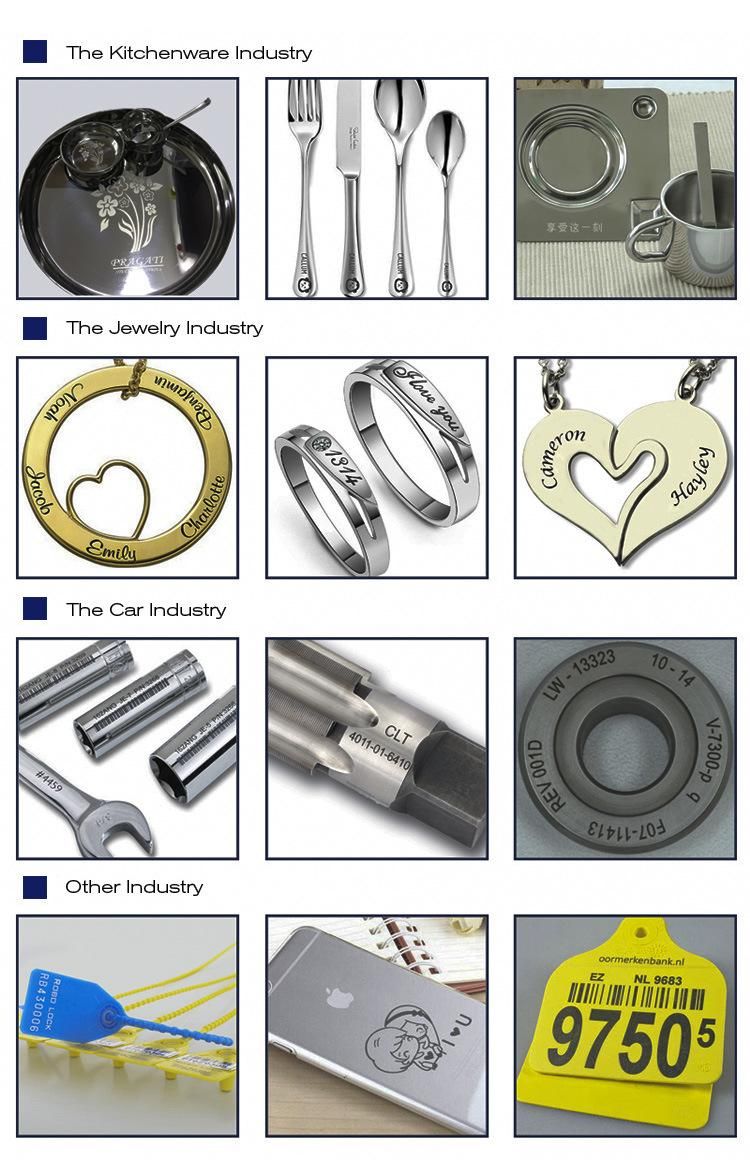

Applicable Industry:

This 20W Fiber Laser Marking Machine widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
