High-Speed Metal Plastic PVC Sheet Engraving 20W Fiber Laser Marking Machine
Wenzhou Longwan Haibing Welton Machinery Fittings Factory- Laser Visibility：Visible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Free Electron Laser
Base Info
- Model NO.：MT-FP
- Type：YAG Laser Marking Machine
- Marking Method：Scanning Marking
- Transport Package：Standard Export Wooden Box
- Specification：10W 20w 30w 50w 100w
- Trademark：mactron
- Origin：Guangdong Dongguan
- HS Code：8486204900
- Production Capacity：200set,Month
Description
Model
MT-F20E
Work Area (mm)
110x110mm Or 175x175mm
Laser Power
20W
Laser Repetition Frequency
25KHz - 400KHz
Wavelength
1065±10nm
Beam Quality M2
<2
Min Line Width
0.05mm
Min Character
0.2mm
Marking Speed
≤5000mm/s
Marking Depth
≤0.4mm
Repeat Precision
±0.002mm
Power Supply
220V(±10%)/50Hz/4A
Gross Power
<500W
Laser Module Life
100000h
Cooling Style
Air Cooling
System Composition
Control System, Industrial Computer, Working Table
Working Environment
Clean and Dust Free
Operating Temperature
10ºC-35ºC
Humidity
5% to 75% (Free of Condensed Water)
Power
AC220V, 50HZ, 10Amp Stable Voltage
Warranty
12 Months
Dimension (cm)
131x53x68
Weight (kg)
110
Feature:
1. One-unit structure with manually focusing system and user-friendly operation.
2. Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
3. Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00; focus diameter is less than 20um; expanding angle is only 1/4 of the YAG-DP. Therefore it is esp. good at delicate marking.
4. High electricity-laser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG's consumption .
5. Free from maintenance, long working life, small size, suitable for any working environment .
6. Fast marking speed, 2-3 times faster than the traditional marking machine .
7. The Fiber Laser Marking software supports files such as CorelDraw, AutoCAD, Photoshop and PLT,PCX,DXF,
BMP; SHX OR TTF can be directly adopted; the functions such as auto coding for sequence No., group mark, date, barcode and so on.

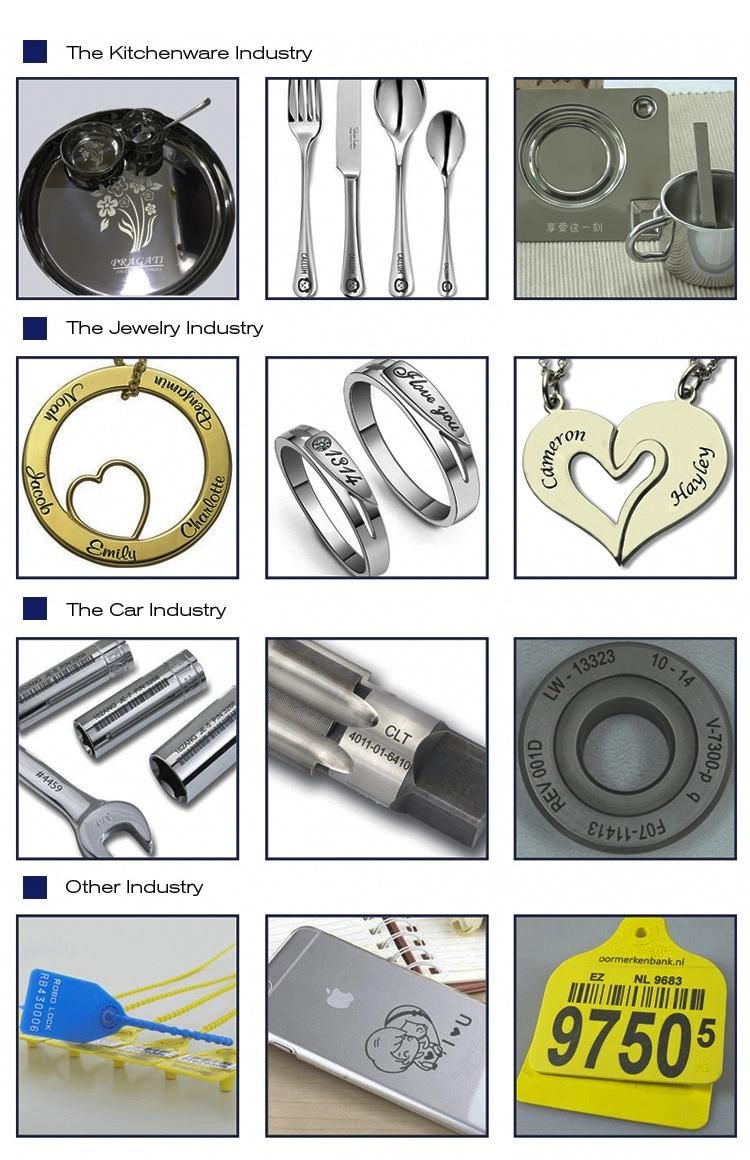

Applicable Industry:
This 20W Fiber Laser Marking Machine widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
