Basic Info.

Model NO. ST-75 Stable Plastification Low Sheering Force Long Service Life High Output Advanced Design Steady Operation Compact Structure Long Use Life Transport Package Wooden Specification CE Trademark Sana-tory Origin China HS Code 84778000 Production Capacity 300kg/H

Product Description

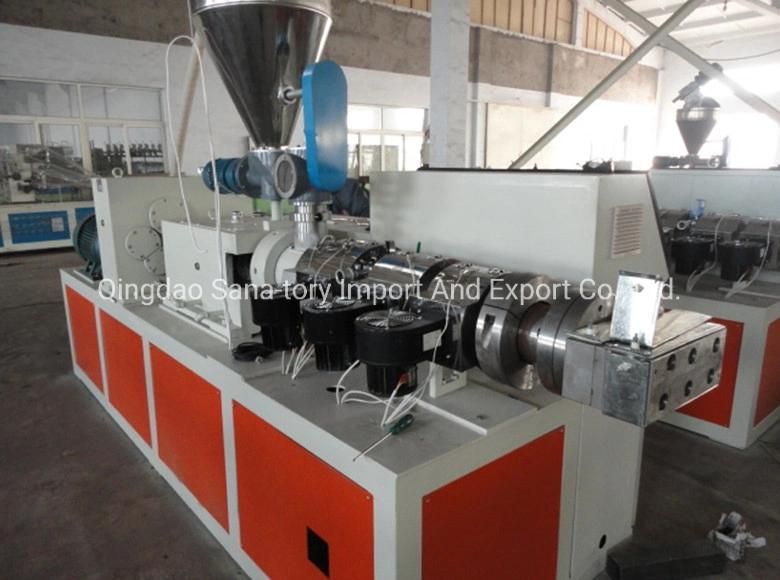

Plastic UPVC Window and Door Profile Extrusion Production Line/Extruder Machine

PVC profile production line is consisted of single screw extruder, vacuum forming table, drawing machine, plastic cutter, stacker.

This production is used to produce PVC door/window profile, elbowboard, the decoration panel, multi-hole wire-through pipe and other profiles. It main contents Plastic Loader, Extruder, Mould, Vacuum Calibration Table, Haul-off, Cutter and Stacker. It can produce different sections and thickness of profile by changing the type of machine and mould.

The door and windows profile is made of PVC powder. It is widely used as window and door profile, as well as decorative material. With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently

This PVC window profile extrusion line is designed for extrusion of PVC plastic door's and window's profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. PVC profiles can be used in the building industry and home or office.

Parameters:

Model number	Screw diameter (mm)	Rotational speed of screw (rpm)	Effective work length (mm)	Main motor power (kw)	Heating power of Barrel (kw)	Production capacity (kg/h)	Central height of machine (mm)	Net weight	Overall size (mm)
SJSZ45	45/90	1-45	1070	15	9.6	70	1000	2800	3300*1200*2000
SJSZ51	51/105	1-45.5	1100	22	11.5	80	1000	3000	3360*1290*2100
SJSZ55	55/110	1-40	1200	22	18	150	1000	3500	3620*1350*2200
SJSZ65	65/132	1-38	1440	37	24	250	1000	4000	4235*1520*2450
SJSZ80	80/156	1-36.9	1800	55	36	360	1000	5000	4750*1550*2460
SJSZ92	92/188	1-34.7	2500	110	88	1000	1000	5500	6000*1600*2500
