Basic Info.

Model NO. qdzx Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Output (Kg/H) 80-120kg/H Screw Material 38crmoala Weight 15t Application Water,Gass Supply,Drai,Electric Pipe Warranty 18 Months Screw L/D Ratio 33:1 After-Sales Service Engineers Available to Service Machinery Overseas Power(W) 55kw Transport Package Carton Specification 25mx1.5mx2.2m Trademark zhenxiong Origin China HS Code 84778000 Production Capacity 15 Sets Per Month

Product Description

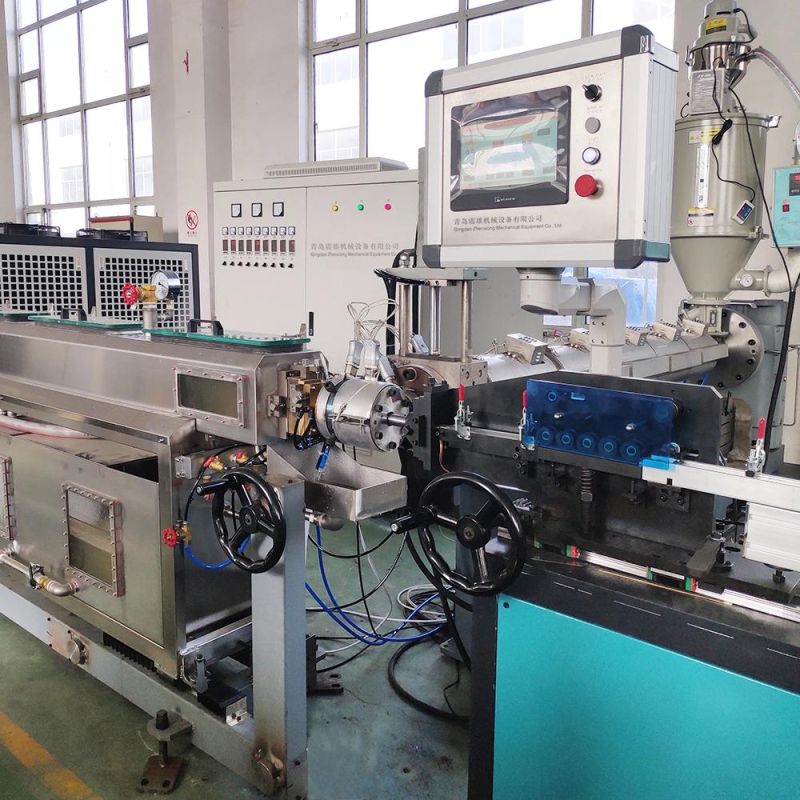

Agricultural drip irrigation pipe extrusion machine

Product Application

Drip Irrigation is today's need because water, nature's gift to mankind, is not unlimited and free forever. World water resources are fast diminishing. The one and only answer to this problem is the drip irrigation system.

This pipe production line is used to produce drip irrigation pipe with round dripper inside. This kindof pipes are widely used in water saving irrigation fields, such as vegetable, flowers and trees.



ADVANTAGES:

AGRICULTURAL INLAID DRIP IRRIGATION PIPE MAKING MACHINE

1) The distance between drippers can be varied according to the irrigation demands of different crops, so that it can save      water and increase output to the largest extent .

2) Special pacth type design on drippers help control dripping quantity of water supply  according to actual water quantity needed by the crop, and make dripping volume even for each emitter on a fixed length .



TECHNICALS:

PIPE DIAMETER:  12mm, 16mm, 20mm (or customized)

PRODUCTION SPEED: 15m/min, single / double / four tapes machine

WALL THICKNESS:  0.15-1.2mm

DRIPING SPACE: 100-1500mm






MAIN PARAMETERS:

1. Emitter Feeding / Choosing / Transferring Machine
2. Electrical Control Cabinet
3. SJ-65 Single Screw Extruder
4. Drip Tape Dedicated Mould
5. Vacuum Sizing Water Tank
6. Drying Heating Unit
7. Haul-off Unit
8. Hole Punching Machine
9. Double Work-position Winding Unit

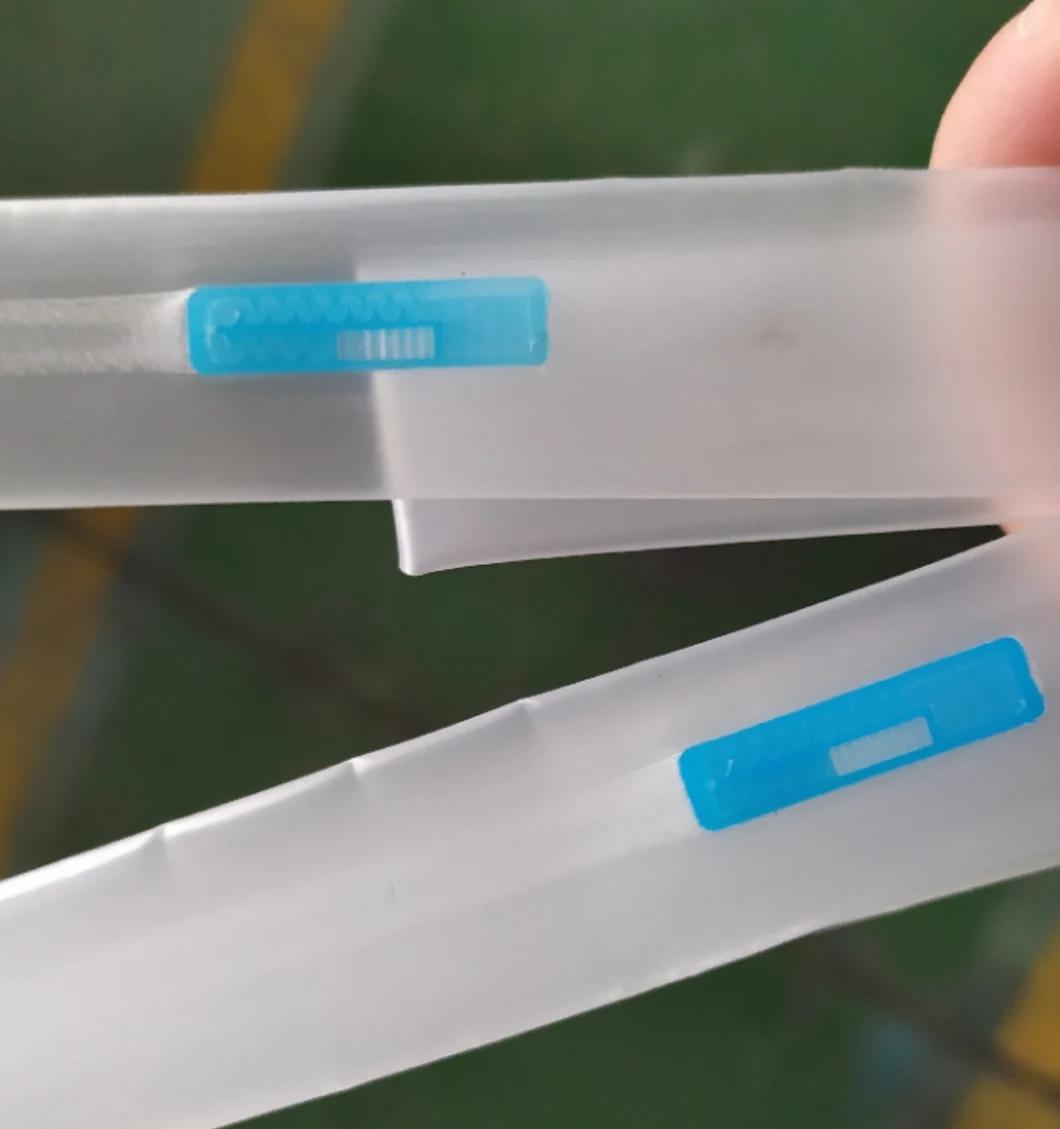

Sample Product
Sample Product

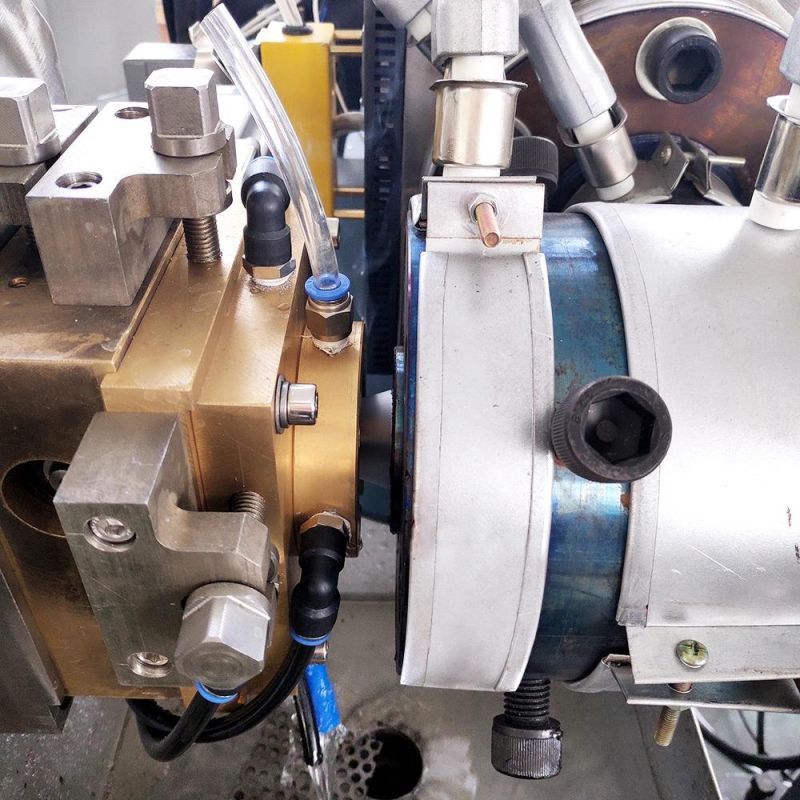

Mold and Die

The high pressure volume type pipe die head, makes the nose has a larger melt pressure, improves the quality of pipe material, which guarantee more stable extrusion

Dripper sorting & inserting machine

Mateiral: stainless steel
Sorting method: new designed spiral rotation sorting, to avoid problem of dripper stucked.
Dripper inserting: Auto inserting as per setting dripper space; with higher precision.


Vacuum Calibrating Tank

Material: stainless steel
Length: 5000mm
Features: special design calibrator for drip irrigation pipe, to ensure pipe diameter;
Stable vacuum degree; High quality stainless steel with nice apperance;
Three diemenstion movable design;

Punching Machine

Punching way: mechanical punching
Feature: Auto dripepr tracking device to ensure the punching hole accuracy;
imported high quality air driller; reasonable structure, 2 holes , 4 holes or 6 holes design can be choosen.

Pipe Hauling Machine

Hauling way: high wear resistant belt hualing with good stability

Features: high quality belt hauling with good stability; equipped with dripper space setting controller and pipe winding length controllerpes
