Directional Solenoid Valve Gd-Weh16 for Coal Machinery Rekith Brand
Jiangmen Jianghai Lianhe Colour Packing and Printing Co., Ltd.- Function：Reversing
- Installation：Plate
- Drive：Electric Hydraulic
- Type：Pilot-Operated Type
- Max Working Pressure：350bar
- Max Flowing：80L,Min
Base Info
- Model NO.：GD-WEH16
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：500 Pieces,Month
Description
Overview
Max.operating pressure Port A,B,P bar 350 Port T bar 210 when the operating pressure exceed the permission value, port T must be be used as a draun port for spool symbol A and B Max flow-rate L/min 80 Flow cross section
(switching neutral position) Type Q mm² for symbol Q 6% of nominal cross section Type W mm² for symbol W 3% of nominal cross section Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80 (NBR seal) -15 to +80(FKM seal) Viscosity range mm²/s 2.8 to 500 Degree of contamination Maximum permissible degree of fluid contamination: 20/18/15, ISO 4406 Voltage type DC AC(rectifier) Usable voltage 24 220 Allowed voltage (deviation) % ±10 Power consumption W 30 - Holding power VA - 50 Making capacity VA - 220 Duty 100% 100% Switching time to ISO 6403 ON ms 25 to 45 10 to 20 OFF ms 10 to 25 15 to 40 Switching frequency Time/h 15000 7200 Type of protection to DIN 40050 IP65 IP65 FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data
(switching neutral position)

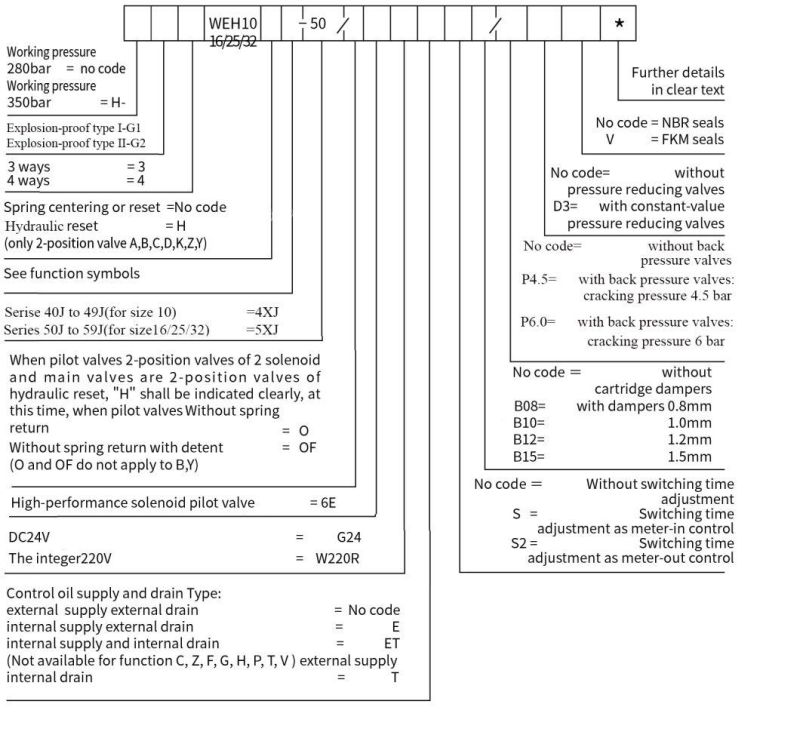

Ordering code
