Explosion Isolation Solenoid-Operated Hydraulic Directional Valve Gd-Weh16 Rekith Brand
Jiangmen Jianghai Lianhe Colour Packing and Printing Co., Ltd.- Function：Reversing
- Installation：Plate
- Drive：Electric Hydraulic
- Type：Pilot-Operated Type
- Max Working Pressure：350bar
- Max Flowing：1100L,Min
Base Info
- Model NO.：GD-WEH16
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：500 Pieces,Month
Description
Overview
Size 10 16 25 32 Max.operating pressure Type WEH MPa 28 28 28 28 Port P,A,B Type H-4WEH MPa 35 35 35 35 Port T With external pilot oil drain MPa 31.5 25 25 25 With internal pilot oil drain MPa 16/21 DC 10/16 AC Port Y DC MPa 16/21 With external pilot oil drain AC MPa 10/16 Type 4WH MPa 25 Max.control pressure MPa 25 Min.control pressure
With external pilot oil supply
With internal pilot oil supply
Not apply to C/F/G/H/P/T/V/Z/S Spring-return 3-position valve MPa 1.0 1.4 1.3 0.85 Hydraulic-return 3-position valve MPa - 1.4 1.8 0.85 Spring-return 2-position valve MPa 1.0 1.4 1.3 1.0 Hydraulic-return 2-position valve MPa 0.7 1.4 0.8 0.5 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80 (NBR seal) -20 to +80(FKM seal) Viscosity range mm²/s 2.8-500 Degree of contamination Maximum permissible degree of fluid contamination: Class 9 NAS1638 Switching pilot oill volume Spring-return 3=position valve CM³ 2.04 5.72 7.64 29.4 2-position valve CM³ 4.08 11.45 15.28 58.8 Hydraulic-return 3-position valve - WH WEH WH WEH WH WEH From "0" position to working position "a" CM³ - 2.83 2.83 7.15 7.15 14.4 14.4 From working position "a" to "0" position CM³ 2.72 2.9 14.18 7.0 29.4 15.1 From "0" position to working position "b" CM³ - 5.72 5.73 14.18 14.15 29.4 29.4 From working position "a" to "0" position CM³ - 8.55 2.83 19.88 5.73 43.8 14.4 Flow of shortest switching time L/min 35 35 35 45 Weight Single solenoid valve kg 6.4 8.5 17.6 40.5 Double solenoid,spring-return kg 6.8 8.9 18 41 Double solenoid, hydraulic-reurn kg 6.8 8.9 19 41 Hydraulic control valve kg 5.5 7.3 16.5 39.5 Switching time regulator kg 0.8 educing valve kg 0.4 Installation position C,D,K,Z,Y type hydaulic-return valves are installed horizontally, the rest can be installed arbitrarily FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data
With external pilot oil supply
With internal pilot oil supply
Not apply to C/F/G/H/P/T/V/Z/S

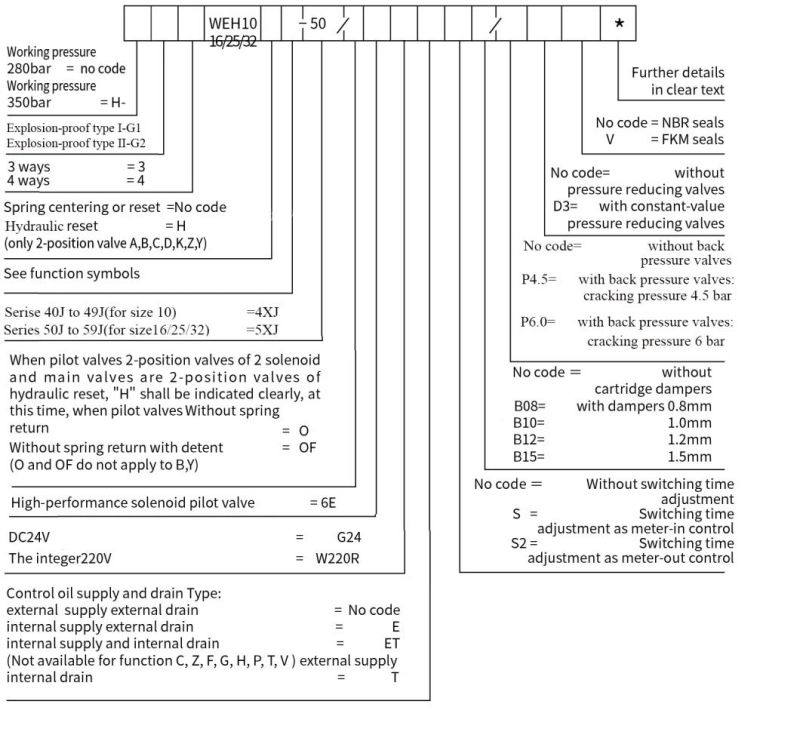

Ordering code
