Model NO. WTHQ 1200 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Material LDPE/LLDPE Transport Package Film Packing or Wooden Box Packing Specification 10*6*2.5m Trademark WT Origin China Production Capacity 100

Product Description

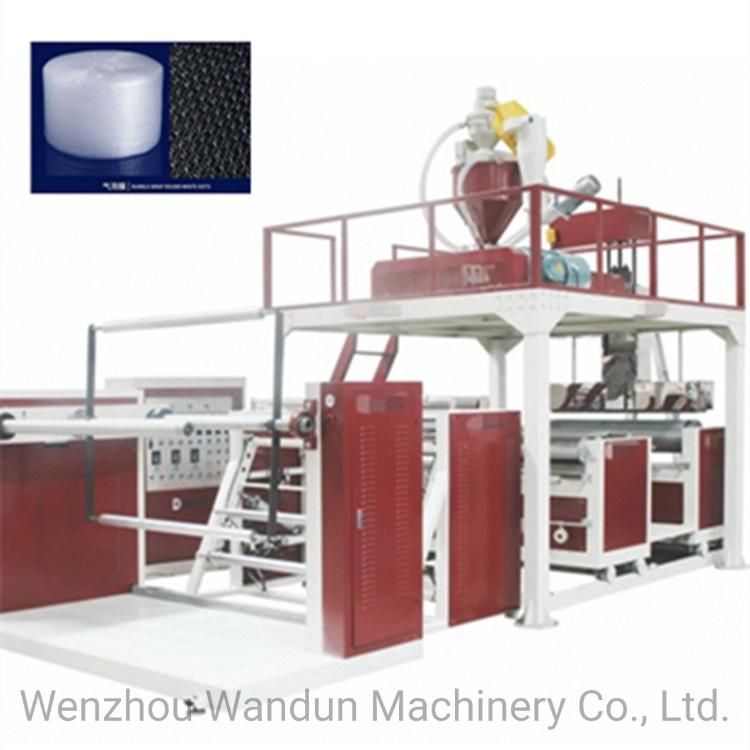

2-layer air bubble film machine (single extruder)






Introduction:

1. Main parts: Extruder, Control Panel, Bubble forming section, Winder;
2. To produce 2 layers air bubble film (bubble layer + base layer);
3. Film width from 1,000mm to 3,000mm;
4. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
5. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.

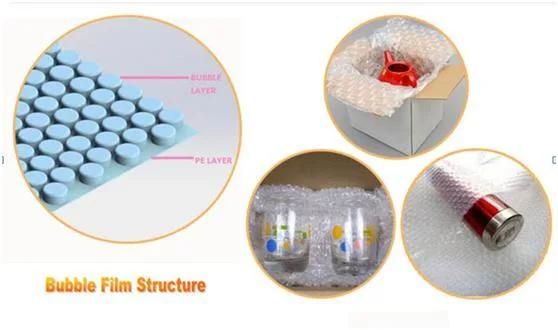

Mechanical Transmission Diagram & Bubble Structure:




Main Technical Variables:



Model	WTPE-1200	WTPE-1300	WTPE-1500	WTPE-1600
Diameter of Screw Stem	φ65 mm	φ65 mm	φ75 mm	φ75 mm
L/D Ratio of Screw	30:1	30:1	30:1	30:1
Material of Scerw & Barrel	38 CrMoALA	38 CrMoALA	38 CrMoALA	38 CrMoALA
Width of T-die Head	1350 mm	1450 mm	1650 mm	1750 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device	Casting-aluminum heating device	Casting-aluminum heating device
Width of Bubble Roller	1280 mm	1280 mm	1580 mm	1680 mm
Width of Products	1200 mm	1300 mm	1500 mm	1600 mm
Thickness	0. 06-0. 25 mm	0. 06-0. 25 mm	0. 06-0.25 mm	0. 06-0.25 mm
Main Motor	15 kw	15 kw	18.5 kw	18.5 kw
Tractiong Motor	1.5 kw	1.5 kw	1.5 kw*2	1.5 kw*2
Total Power	58 kw	58 kw	70 kw	70 kw
Rewinder	Turnover duplex turret rewinding type	Turnover duplex turret rewinding type	Turnover duplex turret rewinding type	Turnover duplex turret rewinding type
Max. Output	70 kg/h	70 kg/h	90 kg/h	90 kg/h
Linear Speed	1000 m/h	1000 m/h	1000 m/h	1000 m/h
