Haitian Bimetallic Screw and Barrel for Injecting Molding Machine
YUYAO RUIFENG HYDRAULIC CO., LTD.Base Info
Description
Product FeaturesBrand JINYI Product Name Bimetallic Screw Base Material 38CrMoAlA High-quality Alloy Structural Steel Bimetallic Material JYS01(Ni,Cr,Si), JYS02(Ni,Cr,W), JYS03(Co,Cr,W) Quenching and Tempering Hardness HB260-280 Nitriding Hardness HV950±50 Nitride Layer Depth & Hardness 0.4-0.6mm , 56-60HRC Brittleness ≤2 Surface Finish Ra0.04 Scope of Application Suitable Recycling & Engineering Plastics & < 20% reinfored additives & corrosive plastic

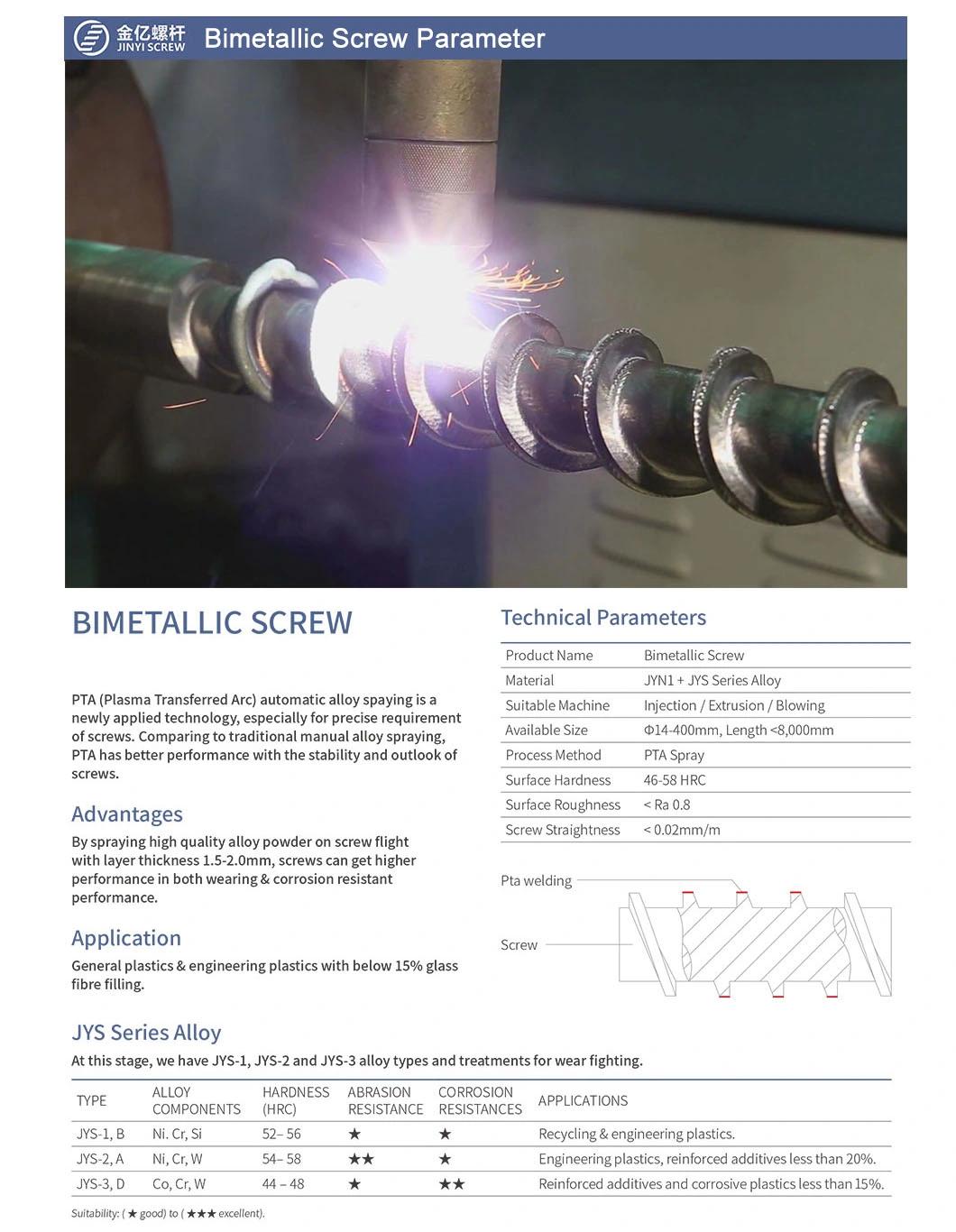

Bimetallic Screw
PTA (Plasma Transferred Arc) automatic alloy spaying is a newly applied technology, especially for precise requirement of screws. Comparing to traditional manual alloy spraying, PTA has better performance with the stability and outlook of screws.
Technical Parameters
Product Name : Bimetallic Screw
Material : JYN1 + JYS Series Alloy
Suitable Machine: Injection / Extrusion / Blowing ...
Available Size: Φ14-400mm, Length <8,000mm
Process Method: PTA Spray
Surface Hardness:46-58 HRC
Surface Roughness: < Ra 0.8
Screw Straightness: < 0.02mm/m
Advantages
By spraying high quality alloy powder on screw flight with layer thickness 1.5-2.0mm, screws can get higher performance in both wearing & corrosion resistant performance.
Application
General plastics & engineering plastics with below 15% glass fibre filling.
JYS Series Alloy
At this stage, we have JYS-1, JYS-2 and JYS-3 alloy types and treatments for wear fighting.
Suitability: (x good) to (xxx excellent).
FAQ:
Q1. What's your MOQ?
1PC or SET
Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.
Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.
Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory as below address.
Bimetallic Screw
PTA (Plasma Transferred Arc) automatic alloy spaying is a newly applied technology, especially for precise requirement of screws. Comparing to traditional manual alloy spraying, PTA has better performance with the stability and outlook of screws.
Technical Parameters
Product Name : Bimetallic Screw
Material : JYN1 + JYS Series Alloy
Suitable Machine: Injection / Extrusion / Blowing ...
Available Size: Φ14-400mm, Length <8,000mm
Process Method: PTA Spray
Surface Hardness:46-58 HRC
Surface Roughness: < Ra 0.8
Screw Straightness: < 0.02mm/m
Advantages
By spraying high quality alloy powder on screw flight with layer thickness 1.5-2.0mm, screws can get higher performance in both wearing & corrosion resistant performance.
Application
General plastics & engineering plastics with below 15% glass fibre filling.
JYS Series Alloy
At this stage, we have JYS-1, JYS-2 and JYS-3 alloy types and treatments for wear fighting.
| TYPE | ALLOY COMPONENTS | HARDNESS (HRC) | ABRASION RESISTANCE | CORROSION RESISTANCE | APPLICATIONS |
| JYS-1, B | Ni. Cr, Si | 52- 56 | x | x | Recycling & engineering plastics. |
| JYS-2, A | Ni, Cr, W | 54- 58 | xx | x | Engineering plastics, reinforced additives less than 20%. |
| JYS-3, D | Co, Cr, W | 44 - 48 | x | xx | Reinforced additives and corrosive plastics less than 15%. |
FAQ:
Q1. What's your MOQ?
1PC or SET
Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.
Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.
Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory as below address.
