Basic Info.

Model NO. LMSB-65, 75, 90, 120, 150, L/D=30, 33 or 36 Customized Under The Order Condition New Die Head Design T-Type Die Head-Jc-Times Brand Usual Sheet Width 500-2200mm Application Packaging, Stationery, Chemicals Main Electrical Components ABB, Rkc, Ormorn, Schnider, Delix etc Usual Sheet Thickness 0.2-10mm Extruder Design Conical Single Screw Extruder Terms of Delivery Fob, CIF, CIP, DDP, EXW Output 250kg-1000kg Payment System Prepayment 30%+Balance 70% Production Time 60 Days Transport Package Wooden Cases with Vacuum Film Specification width: 500-2200mm, thickness: 0.2-10mm Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000 Production Capacity 100 Sets/Year

Product Description

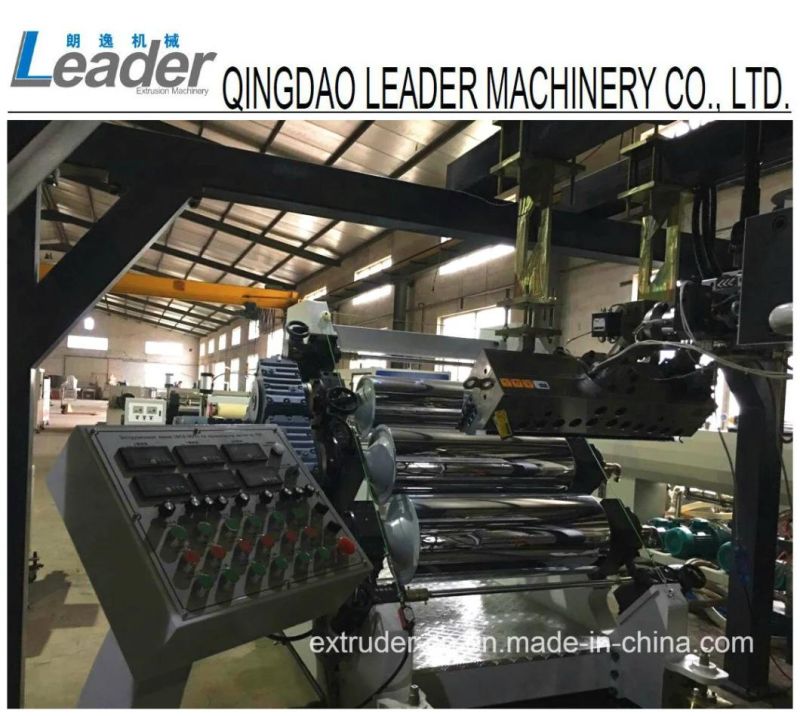

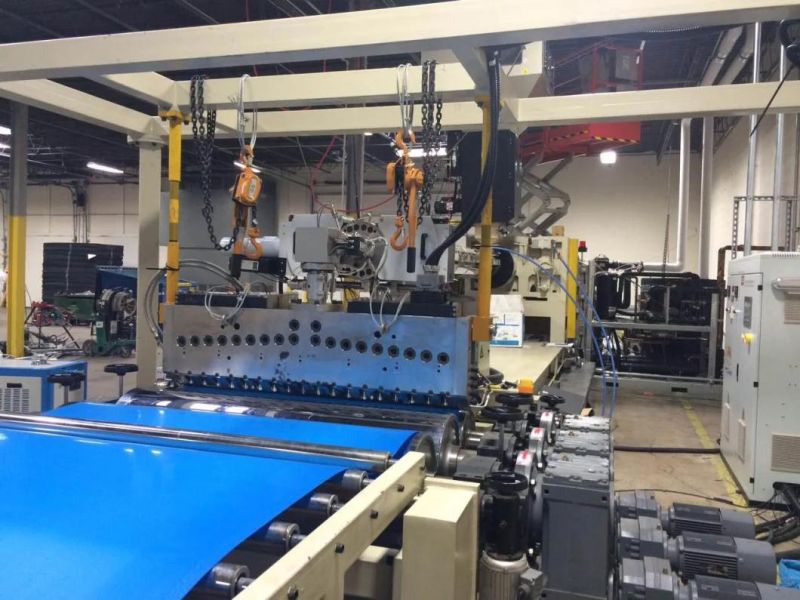

PP PE stationery foam sheet extrusion line.
PP PE chemical plastic foam sheet producing machinery.



This line specially used for producing PP/PE single layer or multilayer foam sheet or plate, suitable in the fields of packing, stationery, chemicals, construction, household appliances and so on.

A. Sheet specifications:
Usual sheet width: 500, 600, 700,900,1020,1200,1300,1400,1500,1700,1800,2100,2200mm.
Usual sheet thickness: 0.2-2mm, 1.5-10mm, 6-20mm,3-30mm.

B. Main technical data:

1,Extruder: Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.

2,T-type die head: excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness. Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness

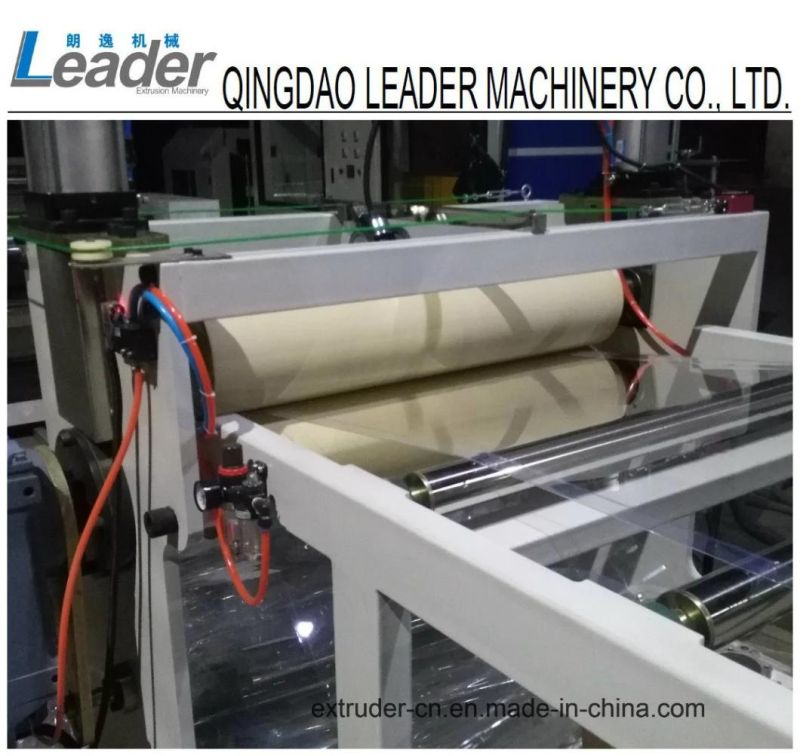

3,Three roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.

4,Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.

5,Edge cutting device: trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.

6,Cutting machine: it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable. Thick type sheet usually use saw cutting.

7,Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.





C. Оплата: 30%+70%, T/T (банковский перевод).
FOB CIF CIP , хорошие упаковки. Контейнерам, морем, жд, или воздухом.
Короткий срок изготовления. Представим услуги установки и пуско-наладки.
Комплектующие услуги и документы на русском языке.
Электрические элементы: АВВ, RKC, OMRON, SCHNEIDER, SIEMENS.
Гарантия: 18 месяцев за механические части, 12 месяцев для электрических частей.
Сертификаты: ISO9001-2008, CE, GOST, SGS.
