PVC PE PP WPC Profile Extrusion Line
Linyi Kunhong Tools Co., Ltd.Base Info
Description
SPECIFICATIONS FOR PVC/PE/PP WPC PROFILE EXTRUSION LINEModel GSZ65/132 G65 GSZ80/162 G85 GSZ91/188 Driving power 37 37 75 90 110 Max.output(kg/h) 180 300 300 700 500 Weight(T/Day) 3T 5T 6T 12T 11T
4. GSZ65/132 conical twin screw extruder
Max. designed output: 50 ~ 160 kg/h
PP+WOOD special designed for screw with rotation speed of 1 ~ 34.7 r/min
Screw material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, hardnessHRC56-60.
Screw core temperature controlling: cooling by circulation heat conduction oil.
Barrel material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.6~0.7mm, hardness HRC62-65
Heating unit: cast aluminium heater + stainless steel covering + cooling fan
Cooling unit: Fan with medium of air, supply precise temperature controlling
Heating zone quantity: 4 with total power 21kw Temperature range: 50~300ºC
Blower fan power: 0.55kw/set (3 set)
| NO. | Name | Qty. | Power (KW) | Length (m) | Weight (T) |
| 1 | GSZ65/132 conical twin screw extruder | 1set | 66 | 4 | |
| 2 | XDX240 vacuum calibration table | 1set | 30 | ||
| 3 | XQY240 haul-off unit | 1set | 3 | ||

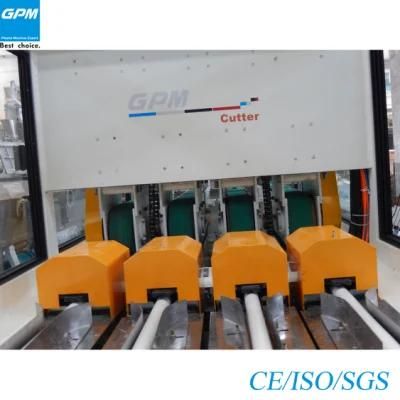

| 4 | XQG240 cutter | 1set | 2.5 | ||
| 5 | XFL240 stacker | 1set |
