• Model NO.：ck6090
• Engraving Method：Vector Engraving
• Working Size：600X900mm or as Customer Choice
• Auto Focus：Yes
• Power：60W,80W,90W,100W,130W or as Your Choice
• Driver：Leadshine Stepper Driver
• Certification：SGS, Ce, ISO 9001
• Inveter：Leadshine
• Red Point：Yes
• Structure：Steel Structure of Lathe Bed
• Voltage：3 Phases and 220V 50Hz,380V,60Hz
• Rail：Hiwin Square Rail
• Transport Package：Plywood Packing
• Specification：CE,FDA,SGS,iso
• Trademark：chanke
• Origin：Shandong
• HS Code：8456100090
• Production Capacity：50sets,Month

Basic Info.

Model NO. ck6090 Engraving Method Vector Engraving Working Size 600X900mm or as Customer Choice Auto Focus Yes Power 60W/80W/90W/100W/130W or as Your Choice Driver Leadshine Stepper Driver Certification SGS, Ce, ISO 9001 Inveter Leadshine Red Point Yes Structure Steel Structure of Lathe Bed Voltage 3 Phases and 220V 50Hz/380V/60Hz Rail Hiwin Square Rail Transport Package Plywood Packing Specification CE/FDA/SGS/iso Trademark chanke Origin Shandong HS Code 8456100090 Production Capacity 50sets/Month

Product Description

1.This machine can cut and engrave on the acrylic , the max thickness can cut and engrave on the acrylic is :20mm.We have many size of laser machine , as working size:1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm 1600x1000mm and so on.Laser tube has 60w, 80w, 100w, 120w,150w, using the Beijing RECI, or Chengdu Weegiant , having the honey nest table and the blade table.

2.Honey nest table fit for the soft materials, like leather, cloth, paper, fiber..

3.Blade table:Can withstand heavy materials, can hold 200kg, materials, suitable for cutting and engraving hard materials, like wood , acrylic and so on.

4.This machine is one Type of machine of chanke company, it is main working on the acrylic, double colour board, glass, crystal, marble, bowlder.Ceramic, wooden products, bamboo, cloth, leather, paper, plastic, rubber...

Have the up and down with rotary table.

Would be more clear if you could supply more information regarding the machine colour, machine size, what will you do using this machine...

Forget to tell you, we can according to your requirments to produce the machine.

Agent price and end user price is different, so please tell me you are the ender user or agent, when you send us the letter.

So don't hesitate contact us !


Features

1.The imported linear guide way ensures the high precision and the long service.

2.The stepper motor guarantees cutting and engraving smooth.We also have the SEVEO, The motor can be choice .But price is higher than the stepper motor.

3.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.

4.High quality laser tube provides the strong beam and long service life.

5.More scientific design and high strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.

6.The anti-pollution design improves the stability of the whole machine greatly.

7.Configure higher power laser tube.Beijing RECI LASER TUBE, can be over 10000 hours.


Model	CK960 laser engraving machine
Working area :	60cm*90cm / 47in*35in (L*W)
Laser power :	40W/60W/90w/100w
Laser type :	CO2 sealed laser tube,water-cooled
Engraving speed :	25-24000mm/min
Cutting speed :	50-5000mm/min
Power supply :	220V±10%/50HZ , 110V±10%/60HZ
Min.Shaping character :	Letter 1.0 x 1.0mm
Graphic format supported:	BMP, PLT, DST, DXF, AI, CDR,
Software supported :	CorelDraw, PhotoShop, AutoCAD
Laser Output Control:	1-100% software setting
Highest Scanning Precision:	2500DPI
Resolution ratio :	<0.01mm
Location precision:	<0.01mm
Working temperature:	5ºC-40ºC
Operating humidity:	5%-95%(without condensed water)
Equipment Dimension:	1650mm*1250mm*970mm/65in*49in*38in (L*W*H)
Net Weight:	350kg
Optional parts:	Up-down worktable, Red light pointer, Auto focus, Rotary device

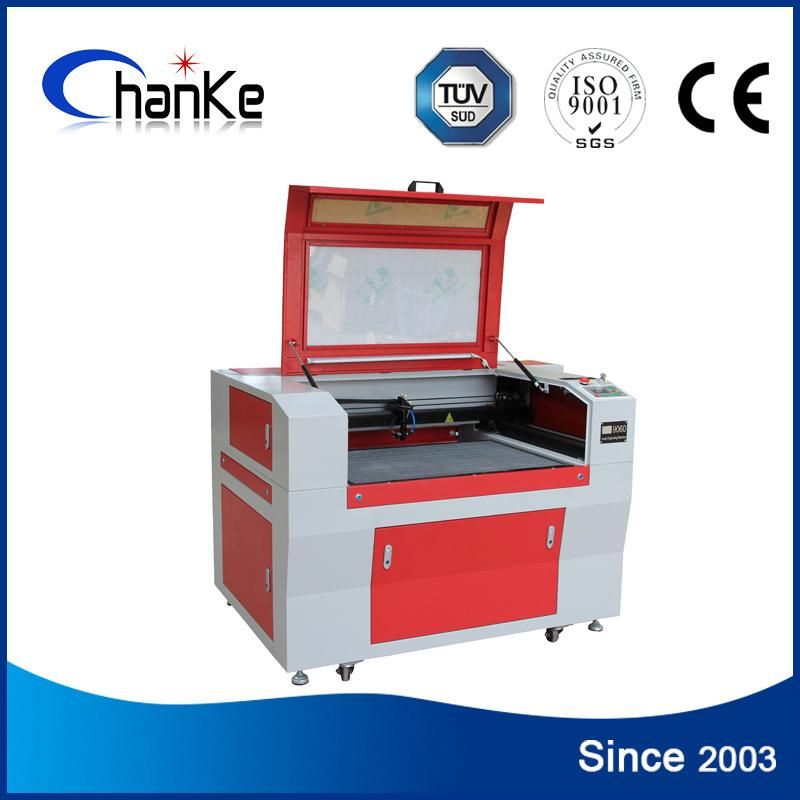

Machine photo

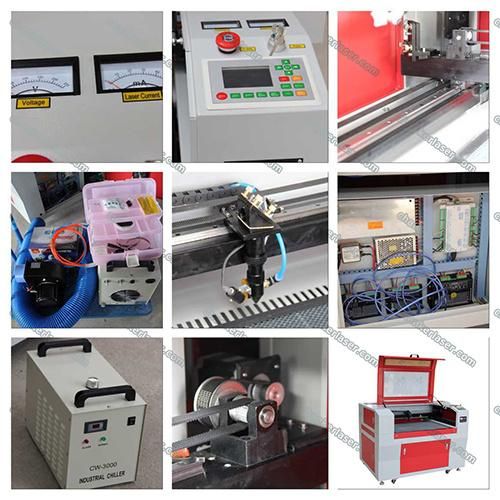

spare parts

samples
