600X900mm 100W Reci 2mm Laser Leather Cutting Machine
Shenzhen SPV Field IOT Co., Ltd.- Application：Leather Industry, Crafts Industr, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
- Applicable Material：Nonmetal
- Type：Oscillating Mirror
Base Info
- Model NO.：ck6090
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Working Table：Kinfe Blade and Honey Nest Working Table
- Auto Focus：Yes
- Power：60W,80W,90W,100W,130W,150W,180W
- Drive Type：Leadshine Stepper Driver

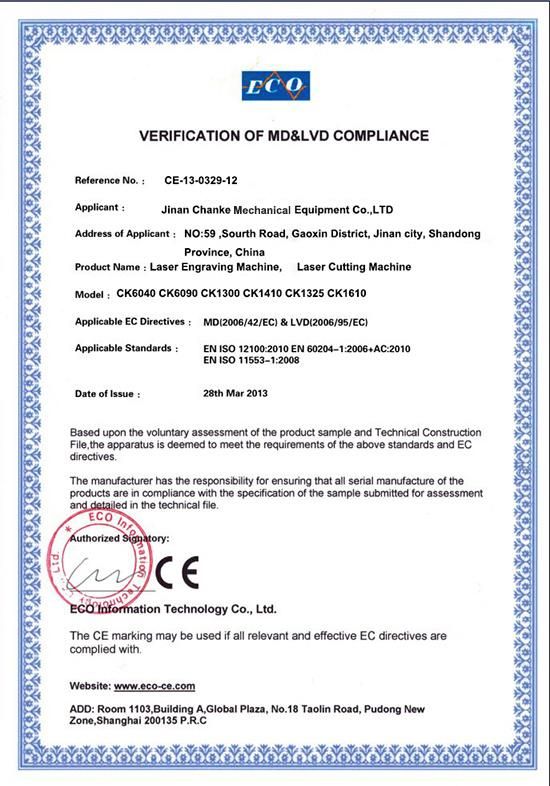

- Certification：SGS, Ce, ISO 9001
- Laser Type：CO2
- Control Software：Rdcam6442g
- Structure：Steel Structure of Lathe Bed
- Red Point：Yes
- Voltage：3 Phases and 220V 50Hz,380V,60Hz
- Transport Package：Plywood Packing
- Specification：CE,FDA,SGS,iso
- Trademark：chanke
- Origin：Shandong
- HS Code：8456100090
- Production Capacity：50sets,Month
Description
Type
6090 laser cutting machine
Model
DW6090 Laser Cutting Machine
Working area
600*900mm
Laser power
80W(60W/100W/130W/150W)
Laser type
CO2 laser tube,water-cooling
Engraving speed
0-6000mm/min
Cutting speed
0-5000mm/min
Power supply
220V/50HZ , 110V/60HZ
Position accuracy
0.01mm
Repetition accuracy
0.02mm
Graphic format supported
BMP, PLT, DST, DXF, AI
Guide rail
Hiwin from Taiwan
Transmission method
Belt transmission
Software supported
CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system
Leashine driving system and stepper motor
Net Weight
180KGS
Optional part
Partial up-down work table, Rotary, Autofocus

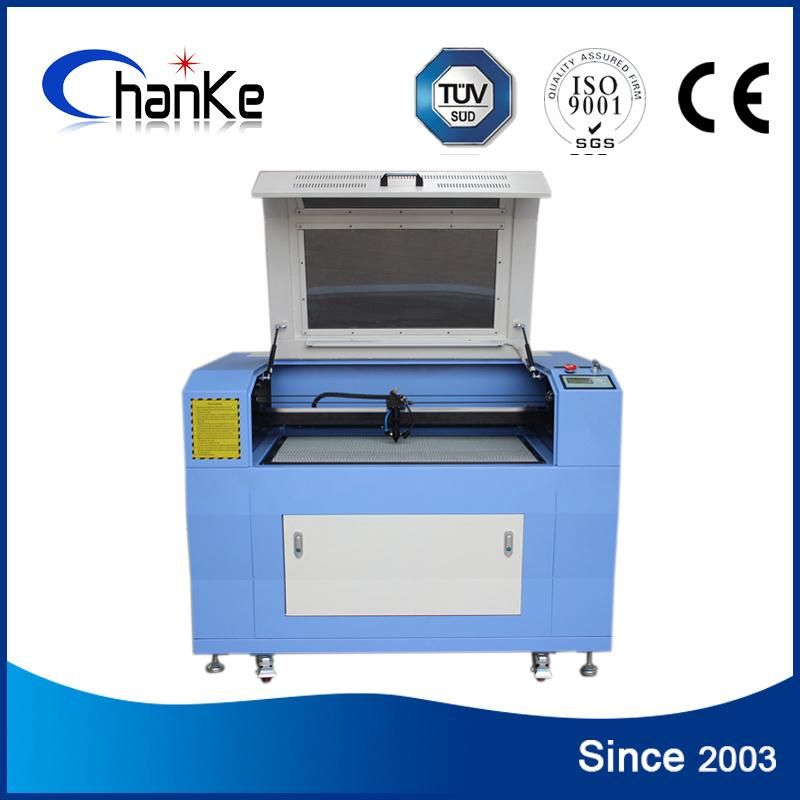

whole machine:

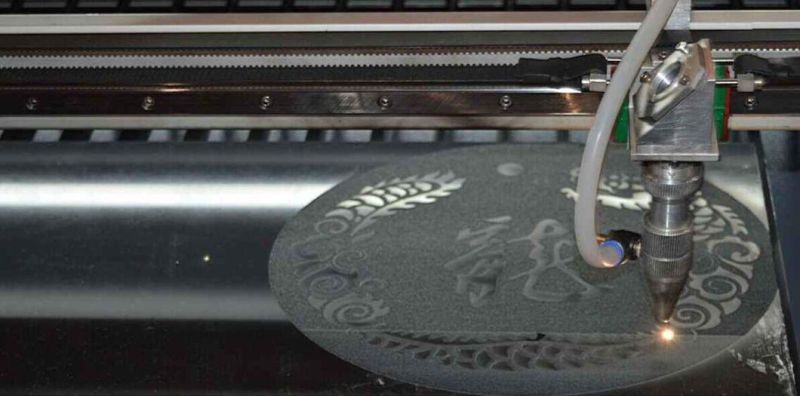

Smaples:
