• Model NO.：MT-FP20
• Type：Cabinet
• Marking Method：Laser Marking
• Transport Package：Wooden Box
• Specification：153*57*53cm
• Trademark：MACTRON
• Origin：Guangdong
• Production Capacity：200 Sets,Month

ModelMT-F30Work Area (mm)110*110mm/175x175mmLaser Power10/20/30/50WLaser Repetition Frequency25KHz - 80KHzWavelength1065±10nmBeam Quality M2<2Min Line Width0.05mmMin Character0.2mmMarking Speed≤8000mm/sMarking Depth≤0.4mmRepeat Precision±0.002mmPower SupplyAC 110/220V(±10%)/50/60HzGross Power<500WLaser Module Life100000hCooling StyleAir CoolingSystem CompositionControl System, Industrial Computer, Working TableWorking EnvironmentClean and Dust FreeOperating Temperature10ºC-35ºCHumidity5% to 75% (Free of Condensed Water)PowerAC220V, 50HZ, 10Amp Stable VoltageWarranty12 MonthsDimension (cm)131x53x68Weight (kg)110

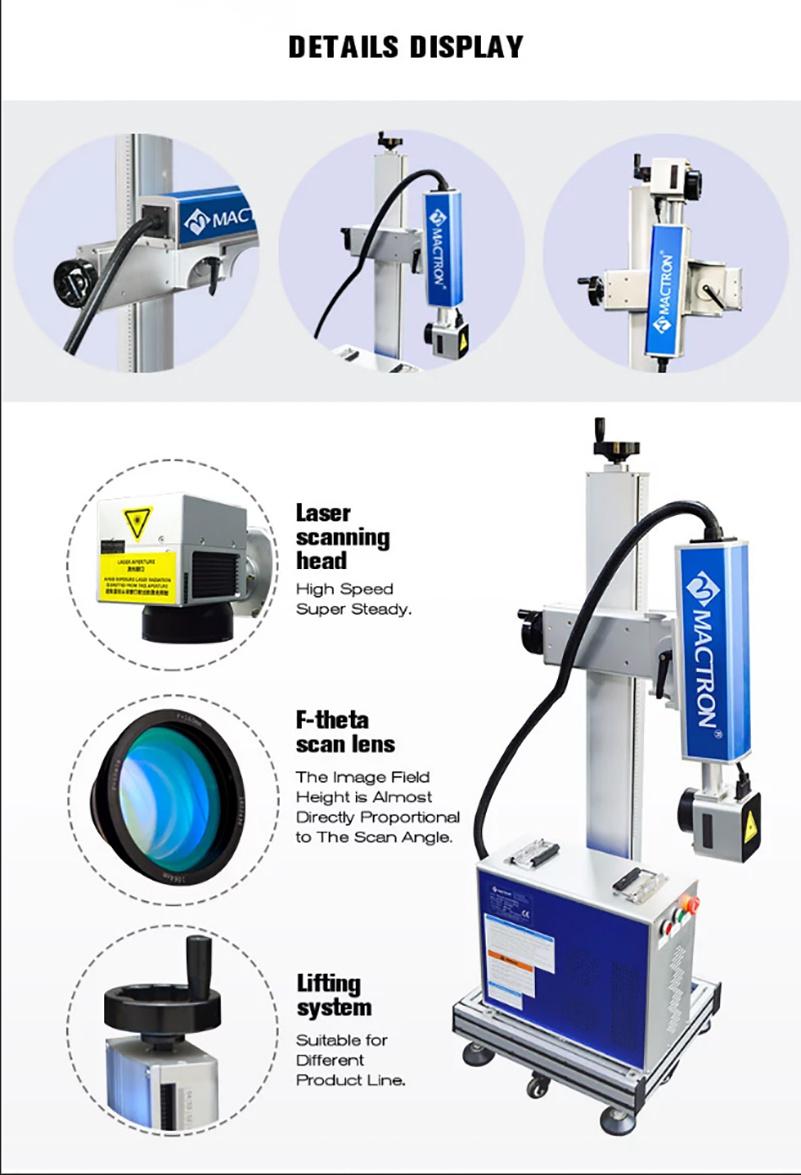

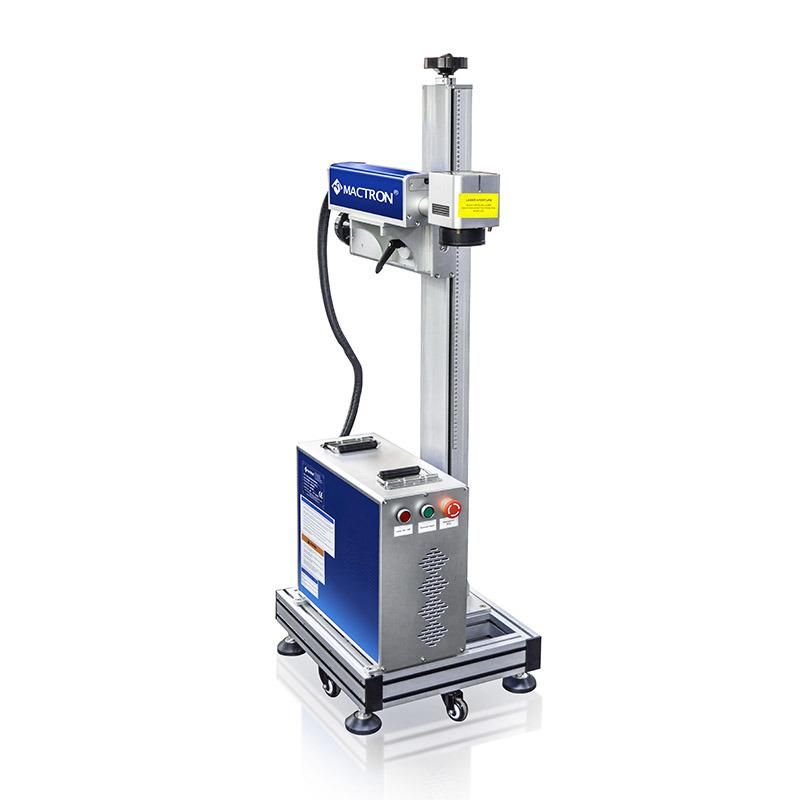

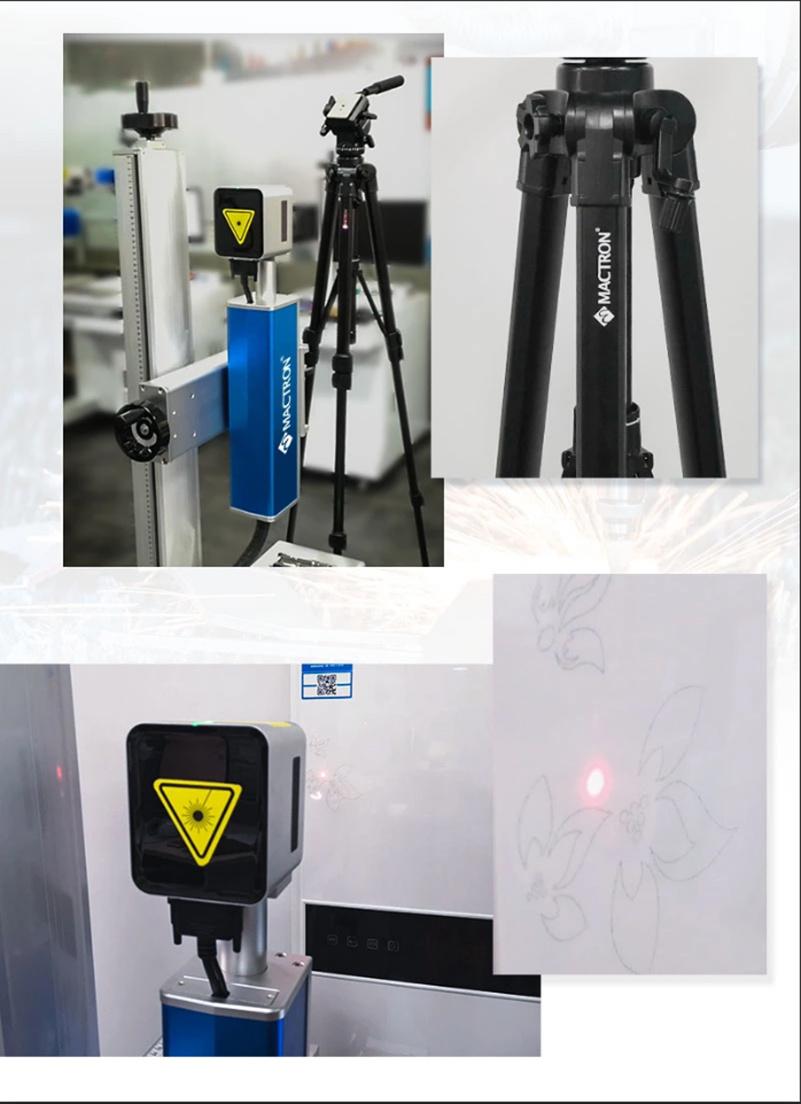

The machine with 360 degree frame can mark big products.The laser head can rotate (please see the detailed picture).

Feature:








1. One-unit structure with manually focusing system and user-friendly operation.
2. Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
3. Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00; focus diameter is less than 20um; expanding angle is only 1/4 of the YAG-DP. Therefore it is esp. good at delicate marking.
4. High electricity-laser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG's consumption .
5. Free from maintenance, long working life, small size, suitable for any working environment .
6. Fast marking speed, 2-3 times faster than the traditional marking machine .
7. The Fiber Laser Marking software supports files such as CorelDraw, AutoCAD, Photoshop and PLT,PCX,DXF,
BMP; SHX OR TTF can be directly adopted; the functions such as auto coding for sequence No., group mark, date, barcode and so on.

Applicable Industry:

This 20W Fiber Laser Marking Machine widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
