Basic Info.

Model NO. SJ Computerized Computerized Machine Weight 2.5t Certification CE, ISO9001:2008 Two Screw Strip Film Two Colour Double Color Screw Ratio L/D28:1 Max. Extrusion Output 30kg /H Transport Package as Requirement Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 15 Sets/Month

Product Description

Characteristics:
The cylinder and the screw stems of made of SJ-50× 2 extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

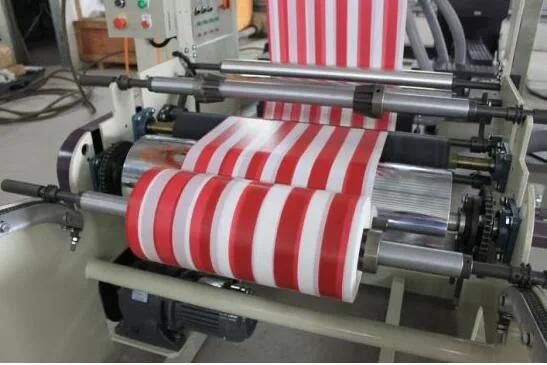

SJ-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

USE:

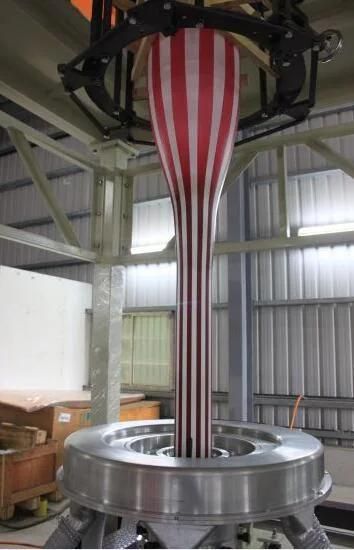

It is used for blowing the various low density polyethylene(LDPE)and high density polyethylene (HDPE) co lour striped plastic film, etc, which are widely used for packing food, fruit, garments, textile, dally necessities and other civil and industrial products.

Model	SJ-50×2×600
Screw Diameter	40mm ×2
Screw Ratio	L/D28:1
Screw Speed	10-100r/min
Power of Main Motor	11Kw
Max. Extrusion output	30kg /h
Max. Folding Width of Film	580mm
Single-sided Thickness of Film	0.006 -0.06mm
Lifting Range of Auxiliary Machine	700mm
Total Power	28Kw
Weight of Machine	2200kg
Overall Dimensions(L×W×H)	3800×2000× 2800mm
