Orbital Hydraulic Motor OMR 125cc & Danfoss OMR Series

Guangzhou Cospack Packaging Technology Co., Ltd.
  • Motor of Material：Cast Iron
  • Application：MID-Size Machinery and Equipment
  • Fuel：Synthetic Hydraulic Fluid
  • Item：Hydraulic Power Unit
  • Hydraulic Valve：Proportional Control Valve
  • Auxiliary Components：Seal

Base Info

  • Model NO.：OMR
  • Hydraulic Fluid：Synthetic Hydraulic Oil
  • Hydraulic Power Units：Vane Pump
  • Hydraulic Motor：Orbit Hydraulic Motor OMR125
  • Hydraulic Actuator：Hydraulic Motor OMR
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：100000 PCS,Year

Description

TypeOMP36OMP50OMP80OMP
100OMP
125OMP
160OMP
200OMP
250OMP
315OMP
400OMP
500Geometric displacement
(cm3/rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5Max.speed  (rpm)con.15001150770615490383310250192155120
 int.16501450960770615475385310240190150Max.torque (N.m)cont.55100146182236302360380375360385
 int.76128186227290370440460555525560
 peak96148218264360434540550650680680Max.output  (KW)cont.8.010.010.011.010.010.010.08.57.06.05.0
 int.11.512.012.013.012.012.012.010.58.57.06.0Max.pressure
Drop   (Mpa)cont.12.5141414141414119.07.06.0
 int.16.517.517.517.517.517.517.5141410.59.0Max.flow  (L/min)cont.5560606060606060606060
 int.6075757575757575757575Net Weight(kg)5.65.65.75.96.06.26.46.76.97.48.0

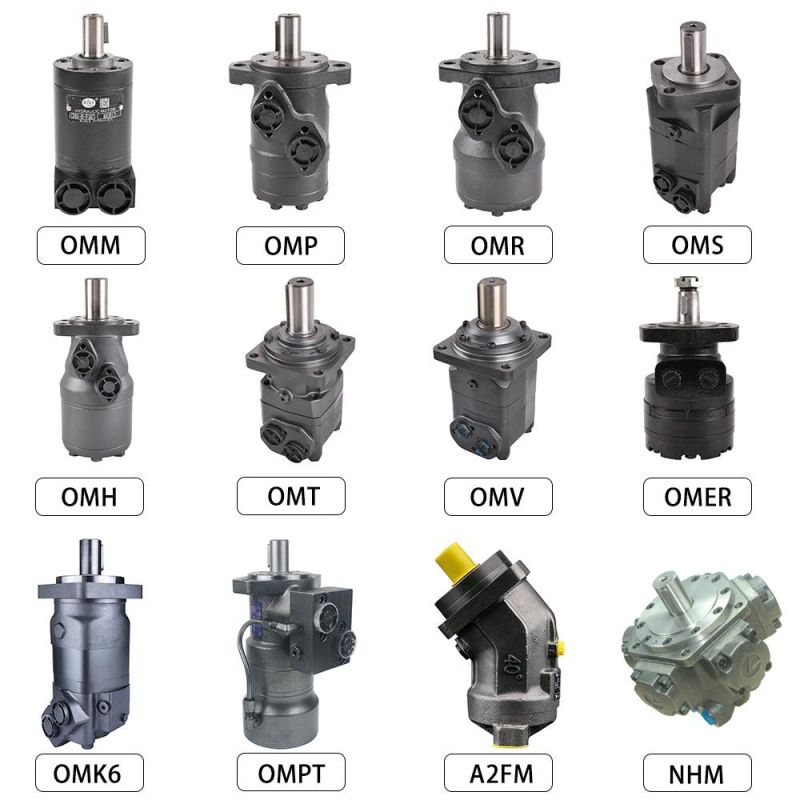

OMR Series Orbital Hydraulic Motor

ModelOMR36,50,80,100,125,160,200,250,315,400Mounting Flange:2 Flange: 2 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
4 Flange: 4 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
H4 Flange: 4 bolts 3/8-16 Square-flange, pilot Ø 44.4× 2.8
H5 Flange: 4 bolts M10 Square-flange, pilot Ø 44.4× 2.8Output Shaft:A Shaft: Shaft Ø 25, parallel key 8X7X32
B Shaft: Shaft Ø 32, parallel key 10X8X45
C Shaft: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
E Shaft: Shaft Ø 25.4, splined tooth SEA 6B
R Shaft: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
F Shaft: Shaft Ø 31.75, splined tooth 14-DP12/24
FD Shaft: Long shaft Ø 31.75, splined tooth14-DP12/24
G Shaft: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
T Shaft: Cone shaft Ø 28.56, parallel key B5X5X14Port and drain port:D port: G1/2 Manifold Mount 4× M8, G1/4
M port: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
S port: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
P port: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
R port: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4Rotary directionStandard
Reverse
OtherSpecial function
Application areas:
* Sweeper
* Hydraulic Winch
* Conveyor
* Crane
* Aerial lift
* Combine Harvester
* Seeder
* Spreader
* Auger
* Machine tool
* And more
