Omp High Speed Hydraulic Orbit Motor for Drilling Rig

Guangzhou Cospack Packaging Technology Co., Ltd.
  • Certification：CE, ISO9001
  • Type：Hydraulic Motor
  • Code：Omp36,50,80,100,125,160,200,250,315,400,500 Motor
  • Max Speed：Contin120~1500rpm
  • Max Torque：Contin 55~385 N.M
  • Output Shaft：25mm,32mm,25.4mm,31.75mm Parallel Key, Splined Key

Base Info

  • Model NO.：OMP36~OMP500
  • Flange：Square-Flange, Rhomb-Flange
  • Motor of Material：Cast Iron
  • Replace：Eaton, M+S
  • Assignment Forms：Axial Flow
  • Fuel：Synthetic Hydraulic Fluid
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：100000 PCS,Year

Description

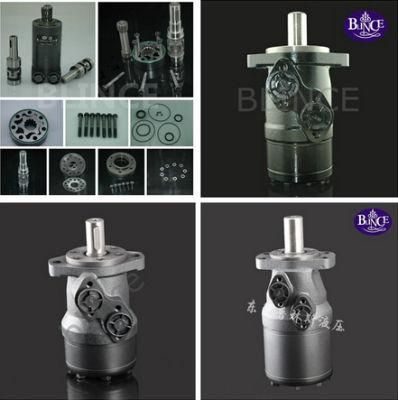

OMP Series Orbital Hydraulic Motor

ModelOMP36,50,80,100,125,160,200,250,315,400,500Mounting Flange:1)Flange: 2 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
2)Flange: 4 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
3)Flange: 4 bolts 3/8-16 Square-flange, pilot Ø 44.4× 2.8
4)Flange: 4 bolts M10 Square-flange, pilot Ø 44.4× 2.8Output Shaft:1)Shaft: Shaft Ø 25, parallel key 8X7X32
2)Shaft: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
3)Shaft: Shaft Ø 25.4, splined tooth SEA 6B
4)Shaft: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
5)Shaft: Shaft Ø 32, parallel key 10X8X45
6)Shaft: Shaft Ø 31.75, splined tooth 14-DP12/24
7)Shaft: Long shaft Ø 31.75, splined tooth14-DP12/24
8)Shaft: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
9)Shaft: Cone shaft Ø 28.56, parallel key B5X5X14
10)Shaft: Cone shaft Ø 31.75, parallel key 7.96X7.96X25.4Port and drain port:1) G1/2 Manifold Mount 4× M8, G1/4
2) M22× 1.5 Manifold Mount 4× M8, M14× 1.5
3) 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
5) PT(RC)1/2 Manifold 4xM8, PT(RC)1/4Rotary directionStandard
Reverse
OtherSpecial function
