ModelSJ65/33SJ75/33SJ90/33SJ120/33SJ150/33Max Dia(mm)75160250315630Installtion power(kw)65150200280420Drawing speed(m/min)0-120-80-60-40-2Total Length(m)2836506672Putput(kg/hr)80-12080-150180-260300-400450-600
Main Composition ItemQTYSJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine1setSJ25/25 Single screw extruder for marking line1setDie and Mould1setVacuum Calibration Device1setSpray Cooling Tank1setTractor1setNo Dust Cutting Device1setStacker1set
Electric control systemTemperatue meterOmronContactorSIEMENSRelaySIEMENSTransducerSIEMENSPower light, buttonSIEMENSInveterSIEMENS

PE PPR Pipe Machine /  HDPE Pipe Extrusion Production Line / PE Water Pipe Making Machine

Working process (It can produce 20-630mm hdpe pipe )
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

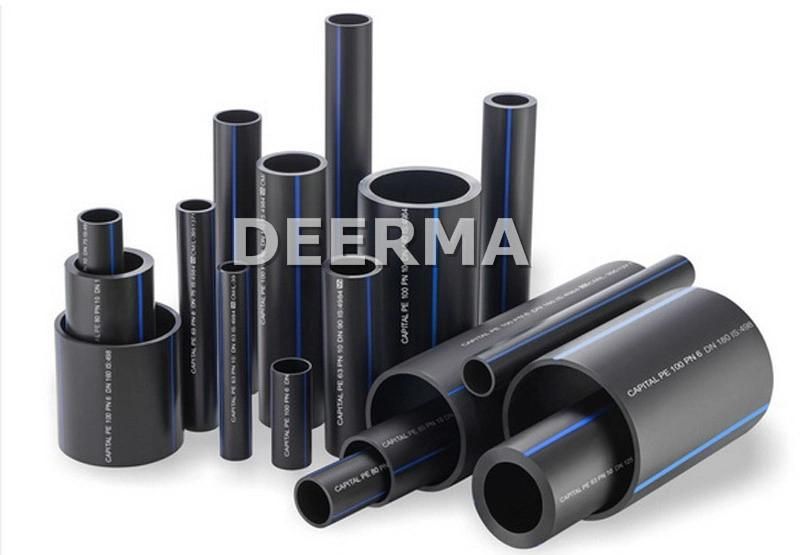

Application of HDPE pipes
1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks



Technical Parameters

ItemSJDRM75SJDRM125SJDRM250SJDRM630Max Dia. Of pipe(mm)75125250630Main machineSJ65/30SJ75/30SJ90/30SJ120/30Motor power(kw)6075160260Motor typeDirect current modelDirect current modelDirect current modelDirect current modelMax. capacity(kg/h)160260400900Traction speed(m/min)0.5DRM80.3DRM40.2DRM20.1DRM1Max. traction(N)10000150003000040000Cutting typeDisc type cuttingDisc type cuttingPlanet cuttingPlanet cuttinglength(mm)22000340004400058000
Main Composition ItemQuantitySJ-XXX Single Screw Extruderone setDie And Mould one setVacuum Calibration Deviceone setSpray Cooling Tanksone setTractorone setCutting Deviceone setStackerone setOptional auxiliary machines for your choice MixerOne setCrusherOne set
Machine Picture

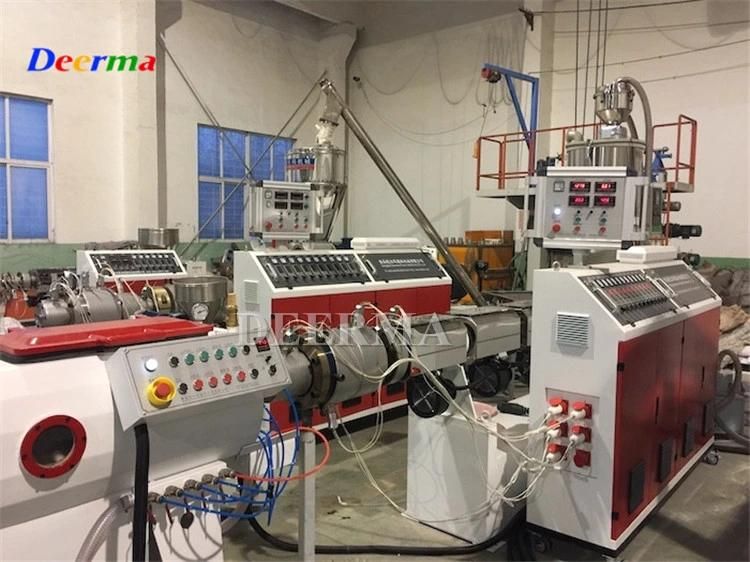

1. SJ65 Single Screw Extruder

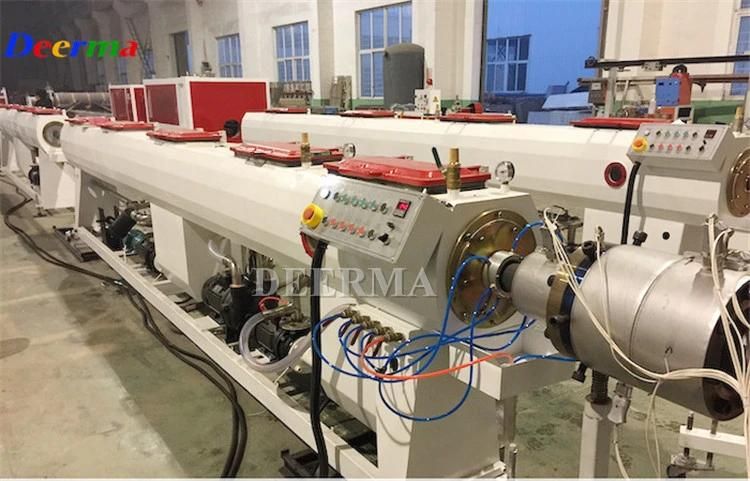

2. Die Head & Vacuum Calibration Tank

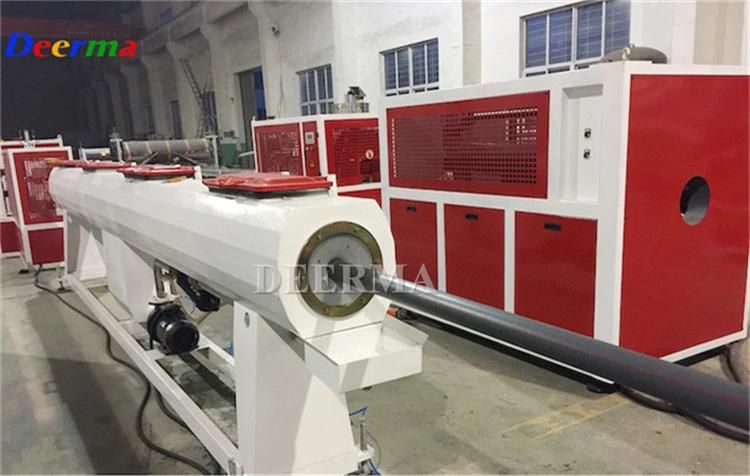

3. Spray Cooling Tank

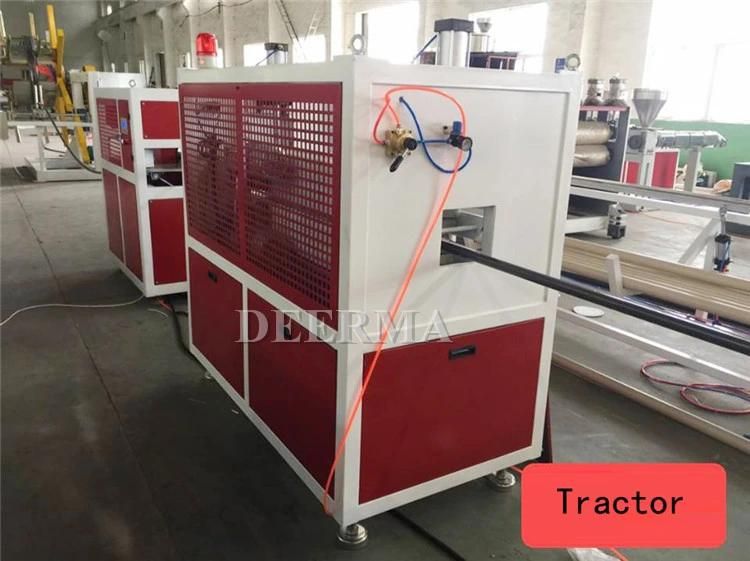

4. Tractor  + Cutter

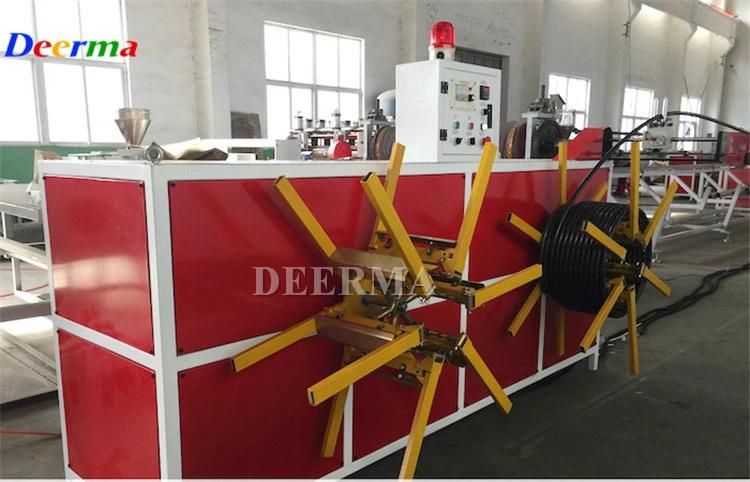

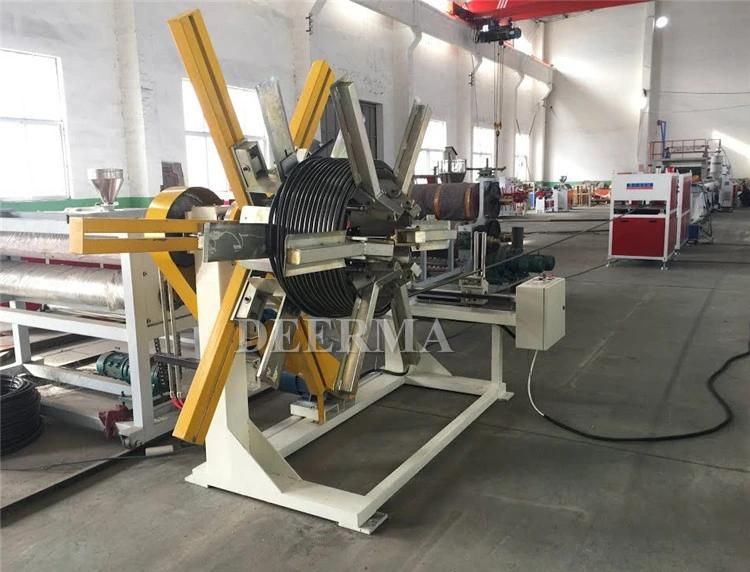

5. Winder

Loading Container & Delivery


DEERMA - CERTIFICATION

CertificationCertified ByCertificate No.Business Scope Expiry DatISO 9001:2008Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
03413Q21640R1MDesign and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic ExtrudersCEEuropeanInspection and
Certification
Company S.A.CN.CE.0680-10/10Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188TUVTÜV Rheinland7467484_P+TProduction & Trade AssessmentMain Product Lines Verification ReportTÜV Rheinland7467487_P+TMain Product Lines VerificationSGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., LtdQIP-ASR155278Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.

We have SIX this production lines in our showroom for other customer , welcome to visit our factory
