Basic Info.

Condition New Pipe Diameter 20-110 mm Extruder Size Sj 65/33 Total Power Installation 100 Kw Transport Package Export Package Specification 20-63 mm Trademark HLD Origin Qingdao, China HS Code 84772090 Production Capacity 200 -300 Kg/H

Product Description

Multiple Layer PPR Hot / Cold Water Supply Pipe Production Line
PPR PIPE PRODUCTION LINE
ppr HOT COLD WATER SUPPLY PIPE PRODUCTION LINE
hot cold water supply ppr pipe extrusion machine

Brief introduction

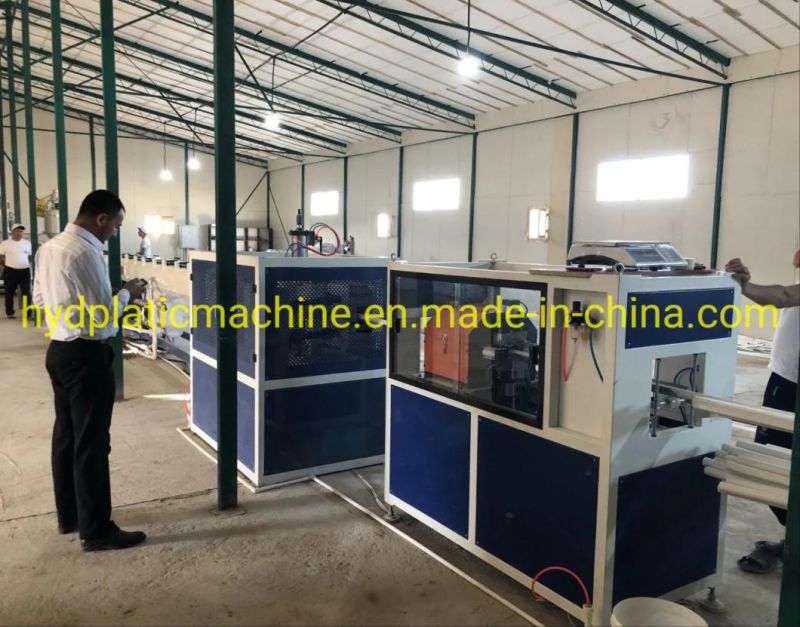

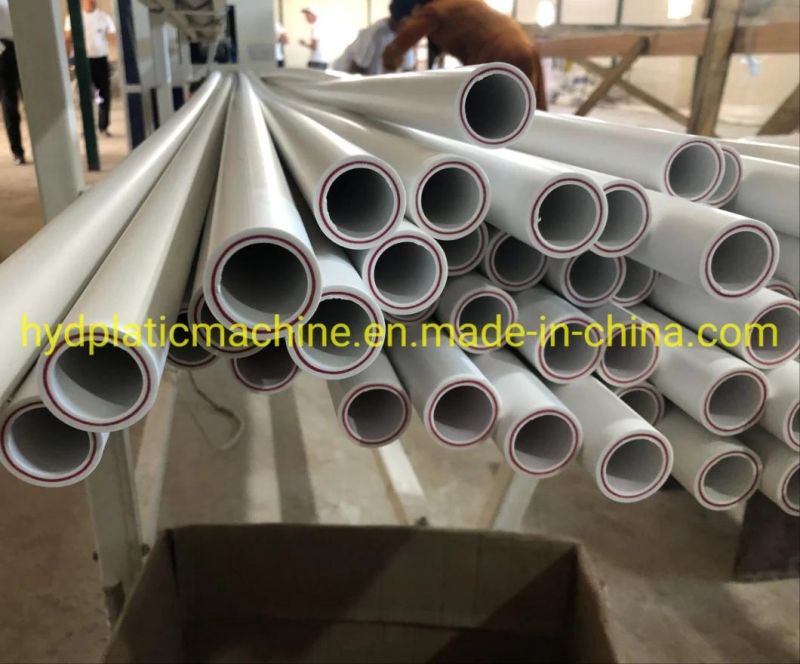

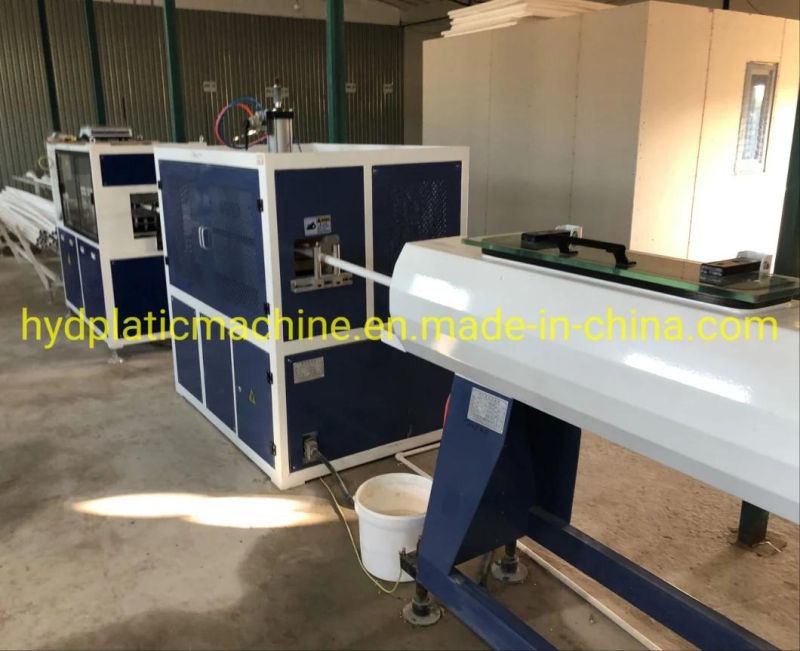

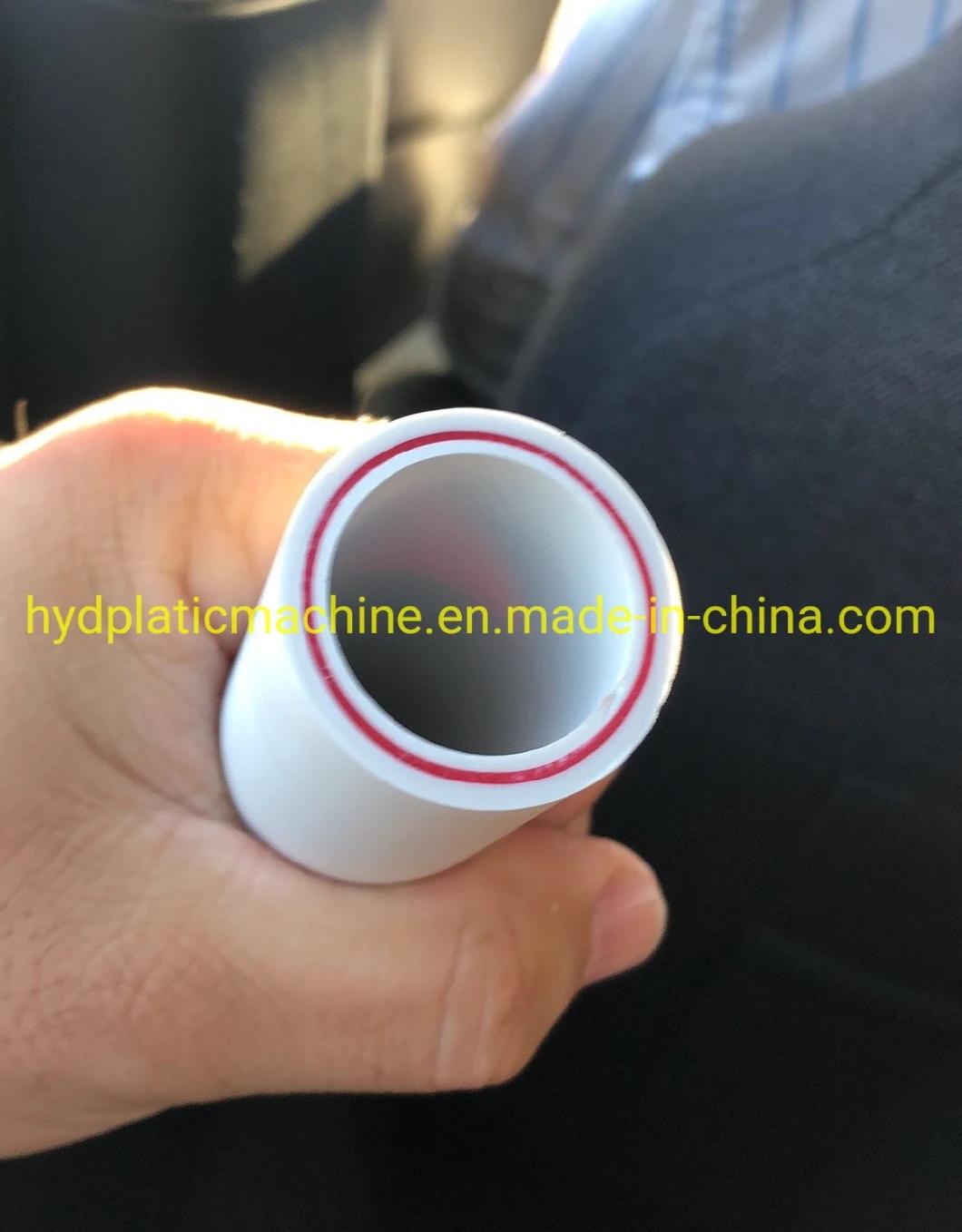

The PERT,PP-R pipe production line consists of hopper dryer, single-screw extruder, die head, co-extruder,vacuum calibration tank, spray cooling tank,haul-off, printer, cutter and stacker. For Producing three layer glass fiber reinforced PP-R pipe, one special extruder is needed for fiberglass layer extrusion.

Application:
Drinking water transportation
Cold water and hot water transportation
underfloor heating water pipe
solar heating water pipe


Technical parameters



Model	PP-R-63	PP-R-110	PP-R-160
Pipe range/mm	Φ20-63	Φ20-110	Φ50-160
Model	SJ-65 SJ-25	SJ-75 SJ-25	SJ-90 SJ-25
Capacity kg/h	120	180	250
Installed power /kw	94	175	215
Total length/m	35	42	45
