Basic Info.

Condition New Pipe Diameter 20-110 mm Extruder Size Sj 65/33 Total Power Installation 100 Kw Transport Package Export Package Specification 20-63 mm Trademark HLD Origin Qingdao, China HS Code 84772090 Production Capacity 200 -300 Kg/H

Product Description

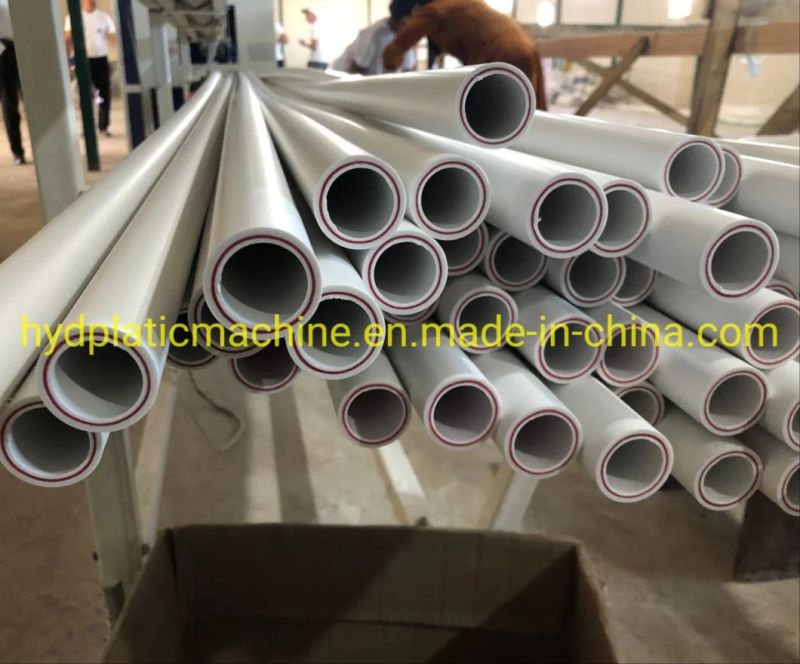

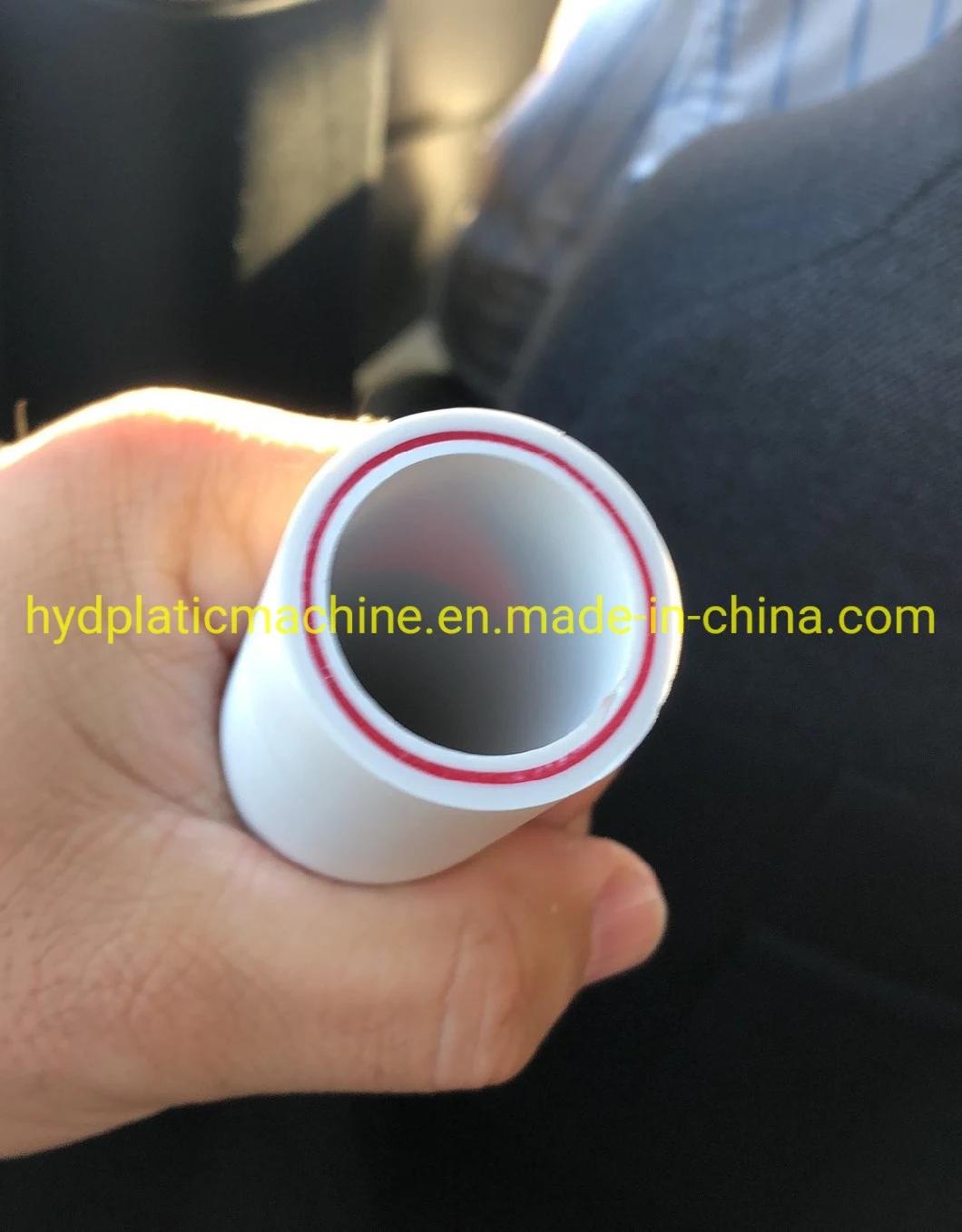

Multiple Layer PPR Hot / Cold Water Supply Pipe Production Line
PPR PIPE PRODUCTION LINE
ppr HOT COLD WATER SUPPLY PIPE PRODUCTION LINE
hot cold water supply ppr pipe extrusion machine
hot cold water supply ppr pipe extrusion line

Brief introduction

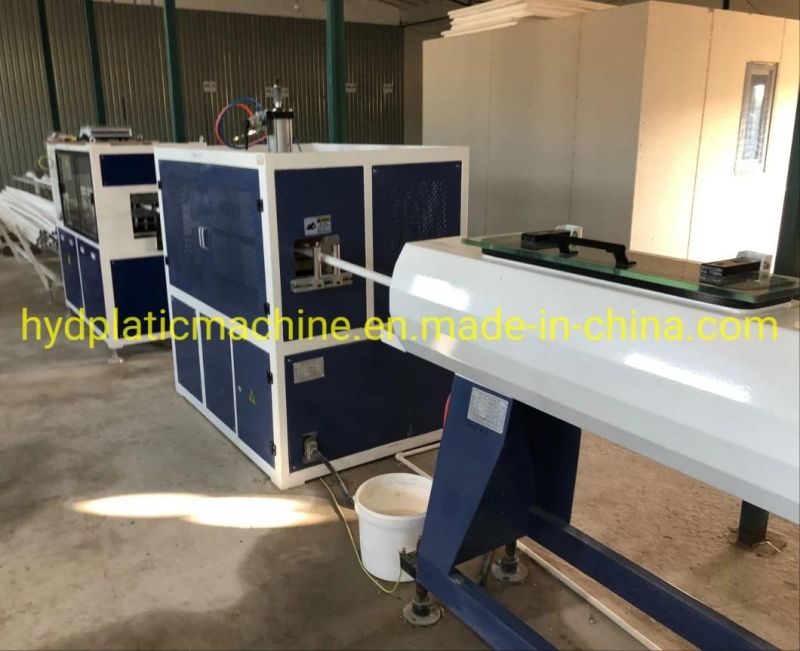

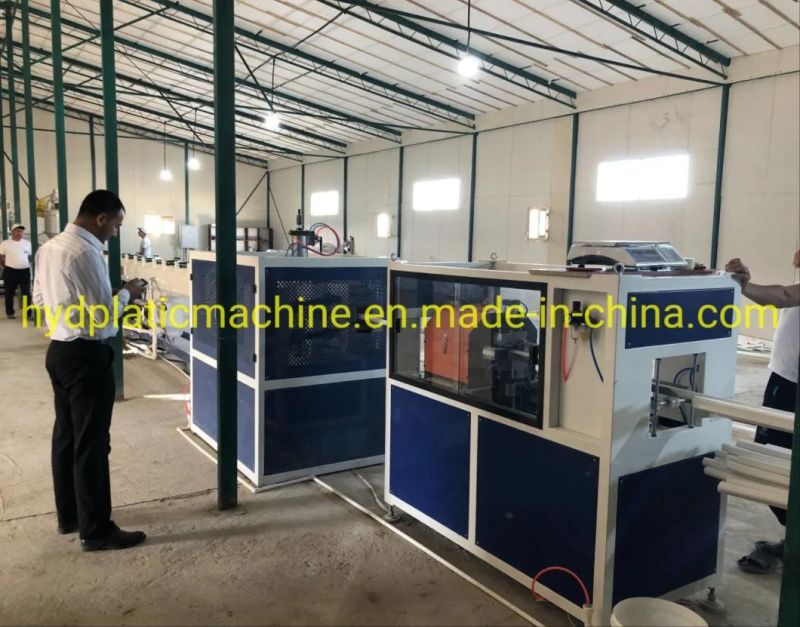

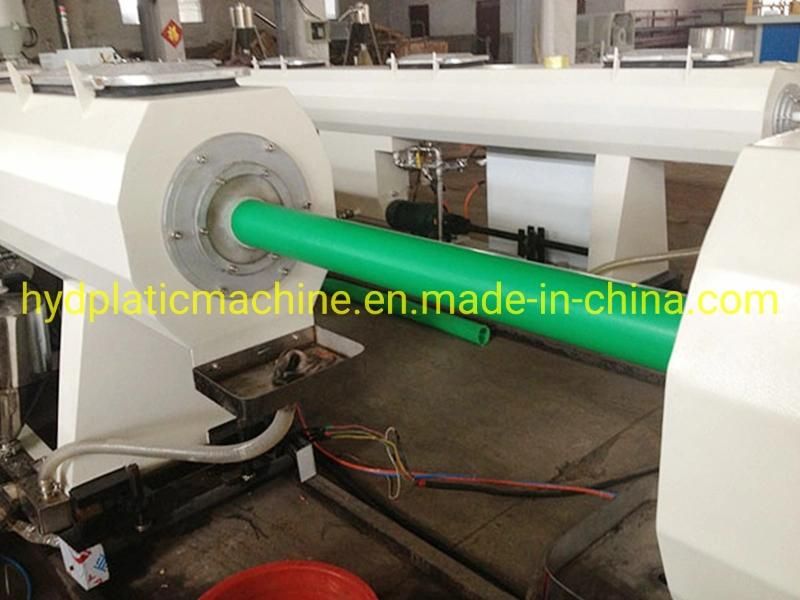

The PERT,PP-R pipe production line consists of hopper dryer, single-screw extruder, die head, co-extruder,vacuum calibration tank, spray cooling tank,haul-off, printer, cutter and stacker. For Producing three layer glass fiber reinforced PP-R pipe, one special extruder is needed for fiberglass layer extrusion.

Application:
Drinking water transportation
Cold water and hot water transportation
underfloor heating water pipe
solar heating water pipe


Technical parameters



Model	PP-R-63	PP-R-110	PP-R-160
Pipe range/mm	Φ20-63	Φ20-110	Φ50-160
Model	SJ-65 SJ-25	SJ-75 SJ-25	SJ-90 SJ-25
Capacity kg/h	120	180	250
Installed power /kw	94	175	215
Total length/m	35	42	45
