• Model NO.：FLC9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Control：CNC
• Laser Type：CO2
• Working Area：900*600mm
• Laser Power：60W,80W,100W,130W
• Transport Package：Plywood
• Specification：9060
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：300PC,Month
• Package size per unit product：168.00cm * 112.00cm * 128.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. FLC9060 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Control CNC Laser Type CO2 Working Area 900*600mm Laser Power 60W/80W/100W/130W Transport Package Plywood Specification 9060 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 300PC/Month

Packaging & Delivery

Package size per unit product 168.00cm * 112.00cm * 128.00cm Gross weight per unit product 300.000kg

Product Description

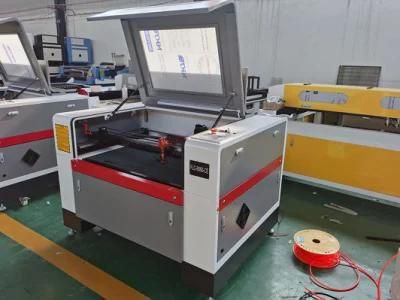

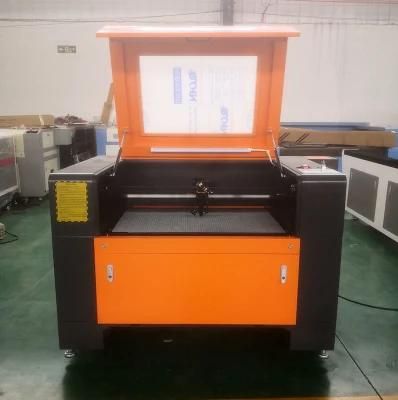

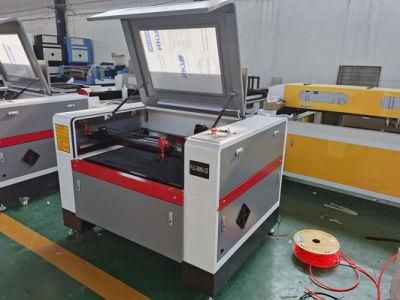

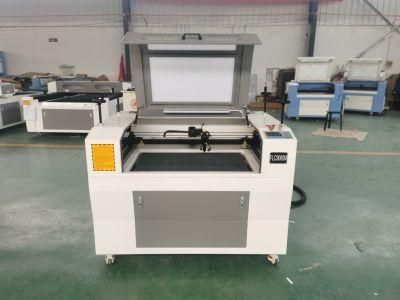

CO2 Laser Engraver Cutter for Acrylic/Wood/Leather (FLC9060)


Features:
This laser system can engrave and cut, thus it is applicable for various industries. Also, with front and back openings it is more convenient to cut long objects. It is a greatly economical piece of equipment. The whole machine has stable performance and easy-operation system, coming with professional software. So it can realize high efficiency and good quality processing effect for various industries.

Specifications:

Model	FLC9060
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60W-150w
Working area	900 x 600mm (35.4 x 23.6 inches)
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, JPEG, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Samples Shown:
