Basic Info.

Model NO. ZGYX-425-1 Rock Hardness F=6~20 Rotation Speed 3200n.M Rotation Force 100rpm Feed Force 20kn Pull up Force 45kn Power 58/73.5kw Drill Rod 76*3000mm Drill Bit 110mm Hammer 4/5" Weight 6000kg Applictation Open Pit Mining, Quary and Construction Work Transport Package 7000*2250*2700mm Origin China HS Code 8430490000 Production Capacity 100sets/Month

Product Description

Product Description:

Committed to the needs of green mining, Zhigao machinery developed this model of low cost high performance, eco- friendly, safa, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.

This model is the new generation of Zhigao classic priduct series, with the collective advantages of various different models, this machine with hole range of 110-152mm and new enclosure design, and oscillation, ZGYX-425 product series has excellent stability and outstanding appearance in the same class of products

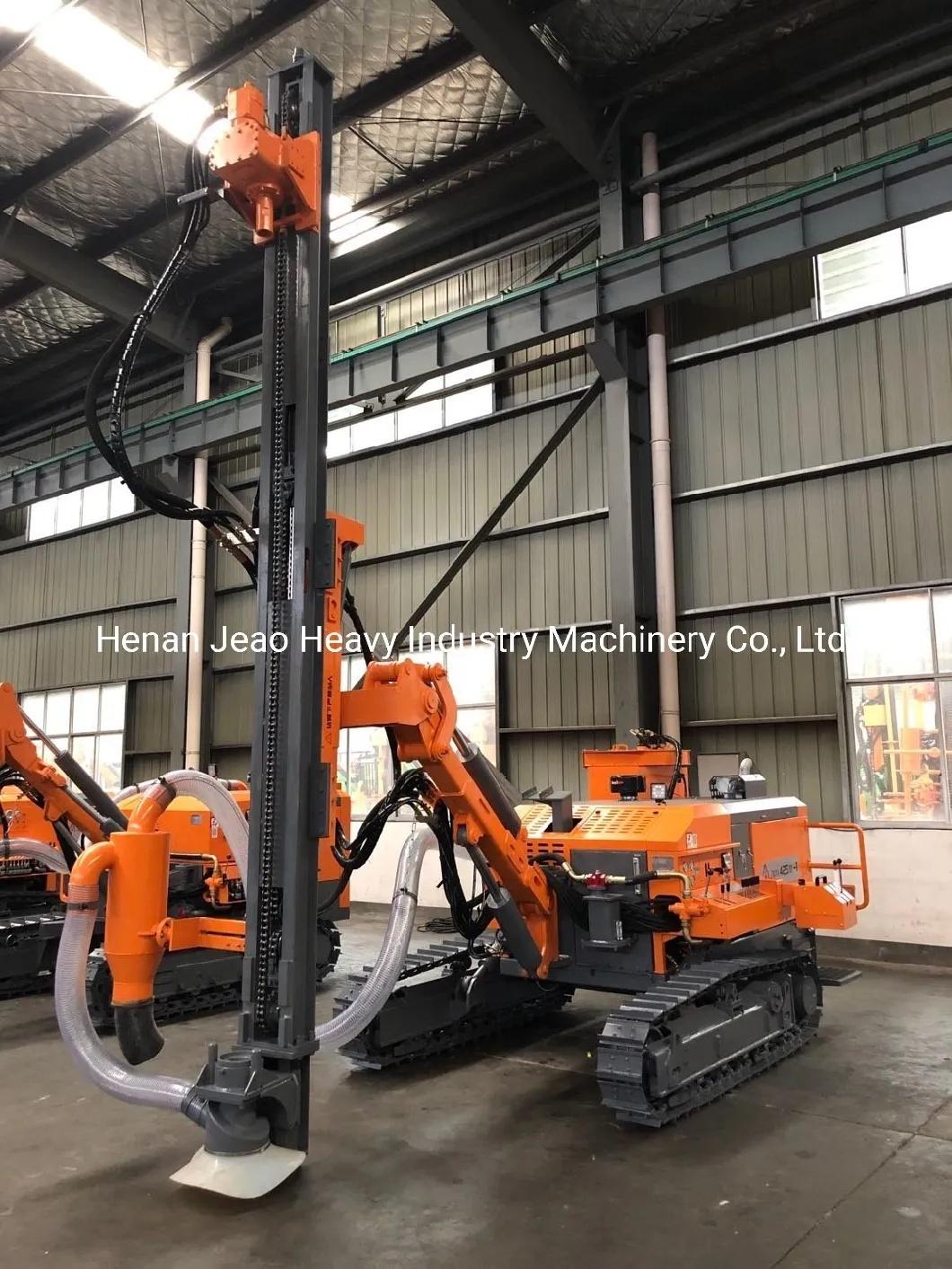

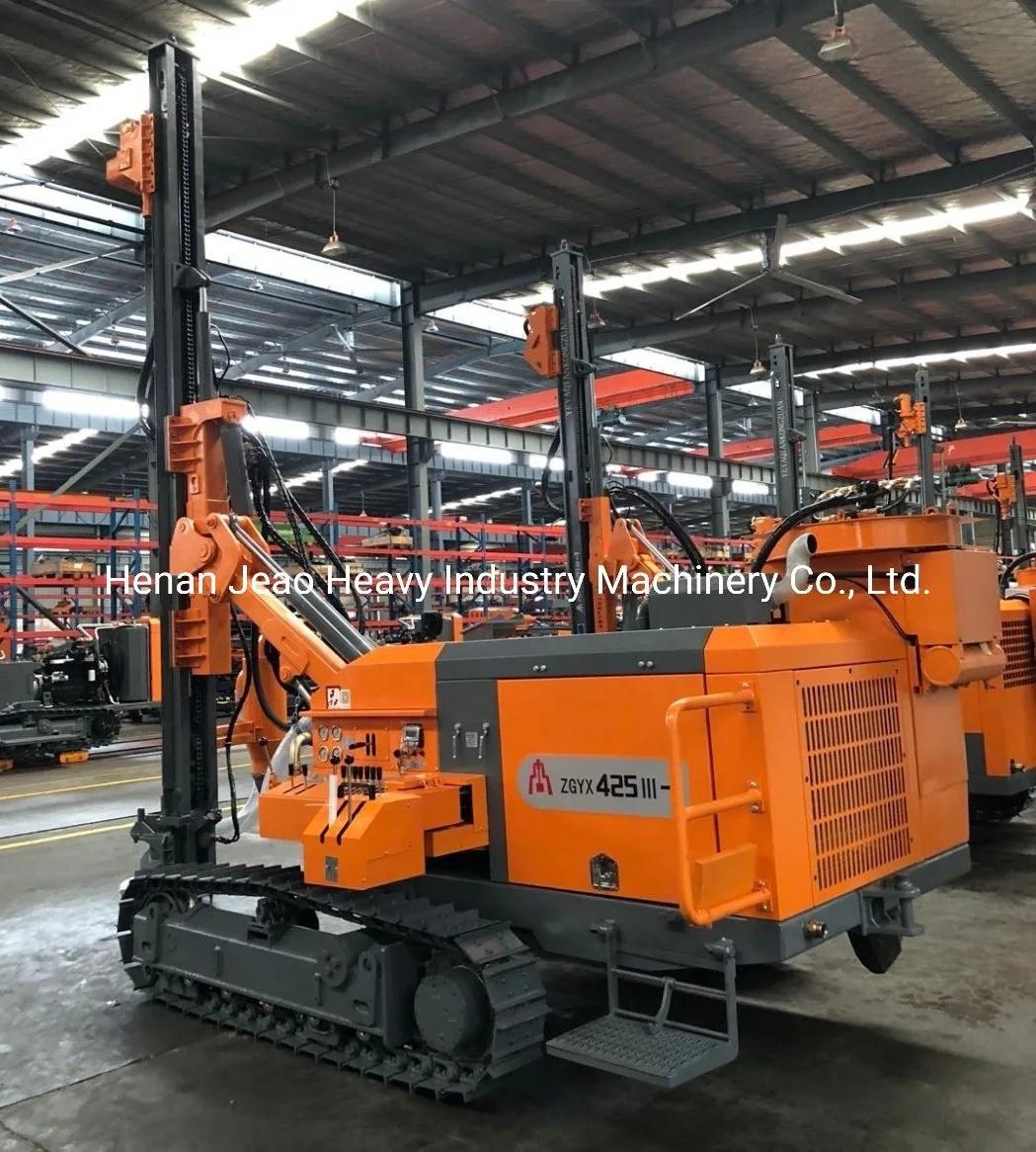

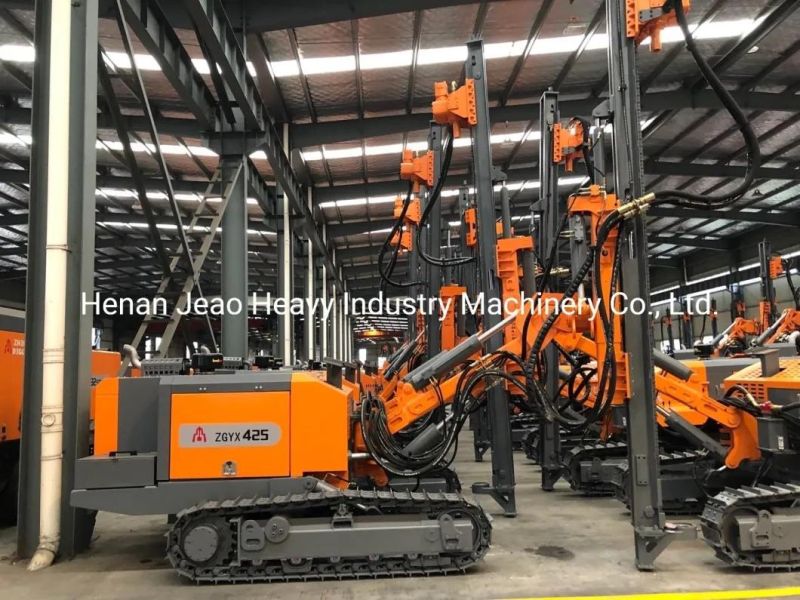

ZGYX-425/ 425-1 Pneumatic Wagon DTH Rock Blast Rock Drilling Rig


Specification for ZGYX-425/ 425-1 Pneumatic Wagon DTH Rock Blast Rock Drilling Rig


Model No	ZGYX-425/ 425-1
Rock hardness	F=6-20
Hole diameter	110-152mm
Economic Drill depth	30m
Rotating speed	0-100r/min
Rotary torque	3200N.m
Feed force	20000N
Pull up force	45000N
Propulsion Type	Cylinder-Chain
Walking speed	0-2.5km/h
Grade ability	30°
Net weight	6000KGS
Dimension	7000*2250*2700mm
Diesel Engine	58/ 73.5Kw,2400r/min)
Drill rod specification(mm)	76×3000mm
Hammer	4"/5"
Working pressure	0.7-2.5MPa
Air consumption	8-20M3/min
Remark	Pneumatic-Hydraulic
Dust collection	Standard equipment
Model No
ZGYX-425	58Kw Yuchai YC4DK-80
ZGYX-425-1	73.5 Kw Yuchai YC4D-100
